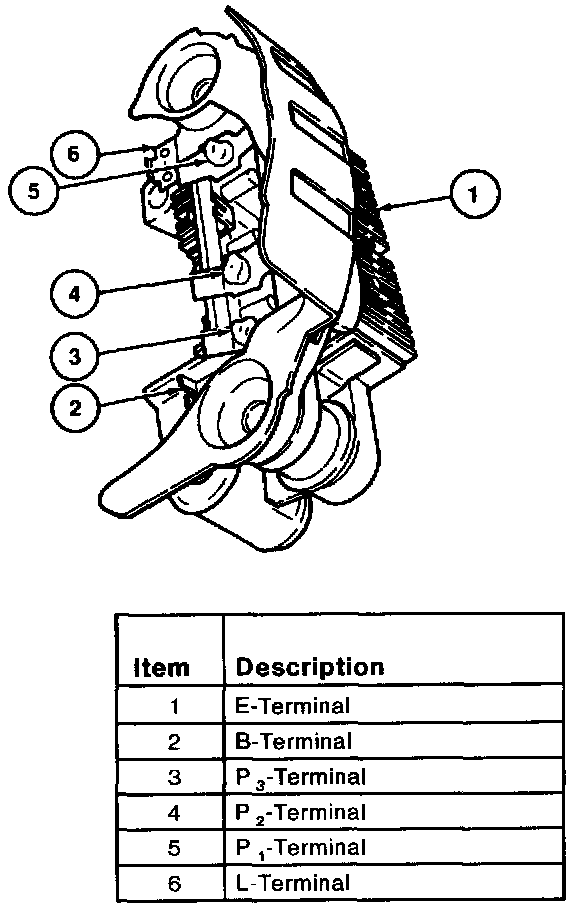

Rectifier

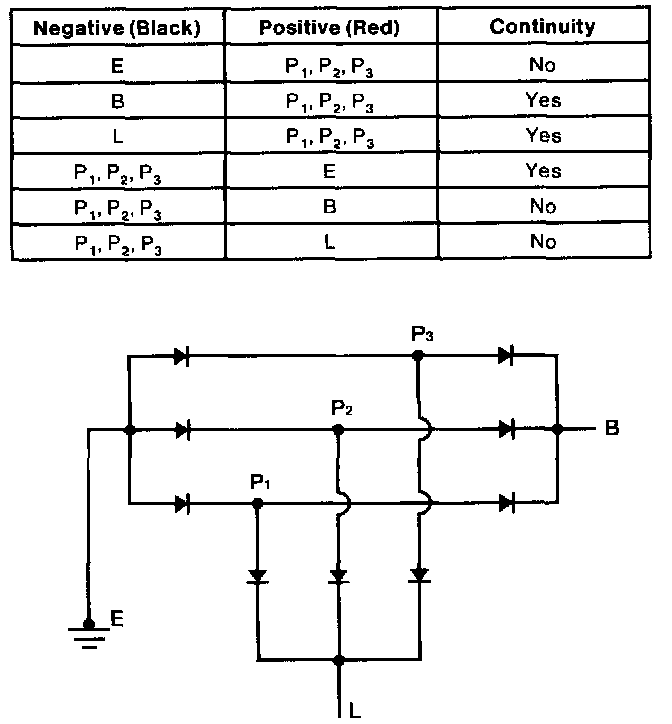

1. Use Rotunda 88 Digital Multimeter 105-R0053, or equivalent, in the diode test mode to check for continuity between the terminals of the rectifier.
2. If the rectifier fails any of the continuity checks, replace the rectifier.
1. Use Rotunda 88 Digital Multimeter 105-R0053, or equivalent, in the diode test mode to check for continuity between the terminals of the rectifier.
2. If the rectifier fails any of the continuity checks, replace the rectifier.
