Switch Electrical/Continuity Test
Switch Electrical/Continuity Test
^

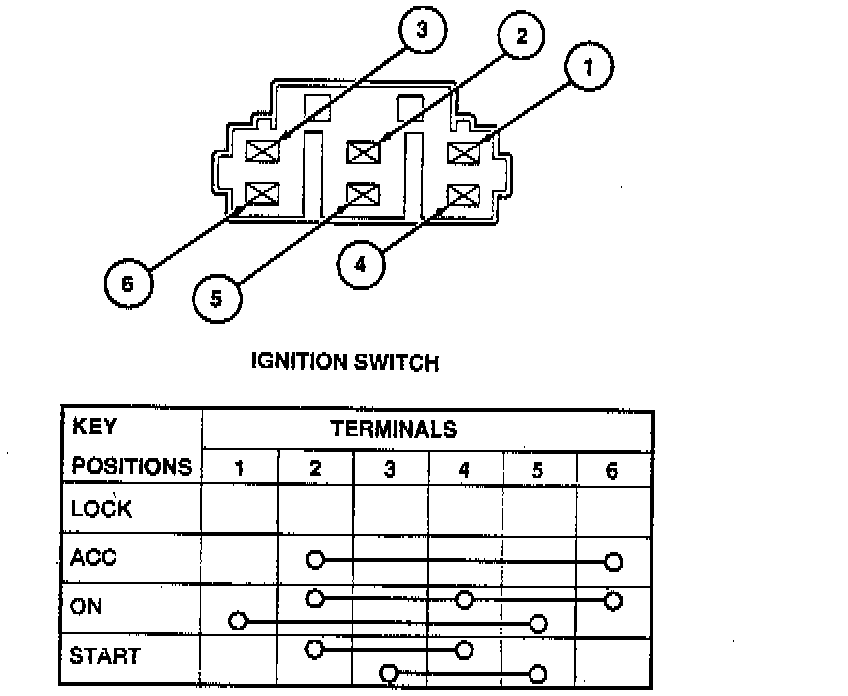

Use Rotunda 73 Digital Multimeter 105-R0051 or equivalent, to check the continuity of the
ignition switch
.
^
If continuity is not present according to the chart, replace the
ignition switch
