Transmission and Drivetrain: Service and Repair

An abnormal vibration can be caused by a component, such as an engine/transaxle mount, which is acting in a rigid manner because of a distorted or twisted mounting position. As a result, the mount does not absorb vibrations as it should. Grounded or abnormally strained exhaust system and hangers will also lead to this condition. Refer to the procedure.

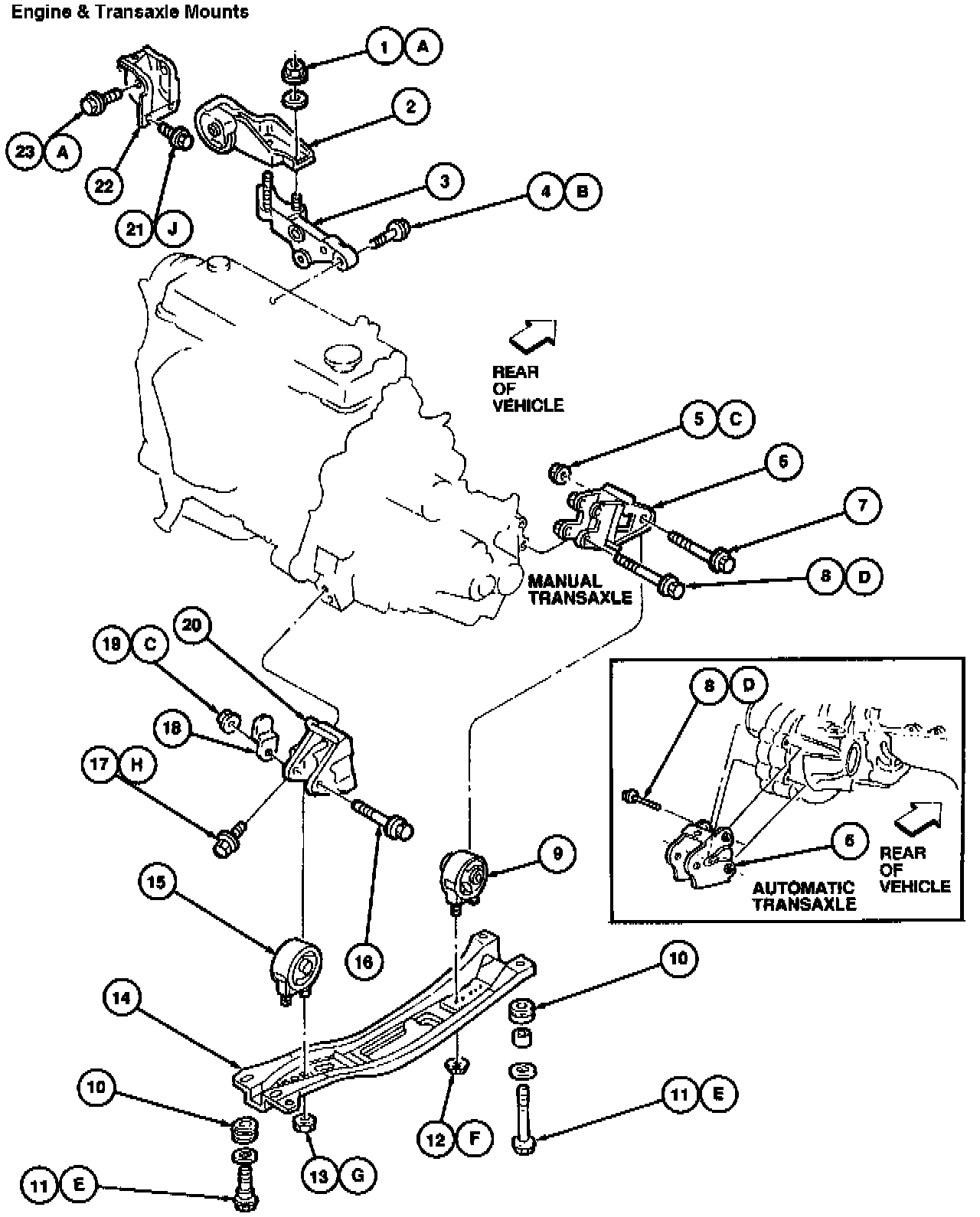

To neutralize the engine/transaxle mounts use the following procedures:
1. Loosen the engine/transaxle mount bolts three turns.
2. Key ON, engine running.
3. Shift vehicle through entire gear range.
4. Shift vehicle into NEUTRAL (N).
5. Key OFF.
6. Tighten the engine/transaxle mount bolts. Refer to torque specifications.
