Front Door Window Regulator: Service and Repair

REMOVAL
1. Remove the front door window glass.

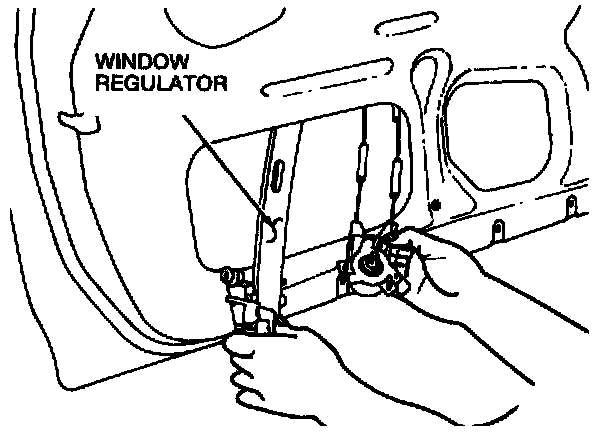

2. Remove the five front door window regulator nuts and the one front door window regulator bolt.






3. Remove the window regulator through the access hole in the front door.

INSTALLATION
1. To install, reverse the removal procedure.
2. Tighten the front door window regulator nuts to 9-13 Nm (7-9 Lb-Ft).
3. Tighten the front door window regulator bolt to 8-11 Nm (6-8 Lb-Ft).
