Rear Door Window Regulator: Service and Repair

REMOVAL
1. Remove the rear door window glass.

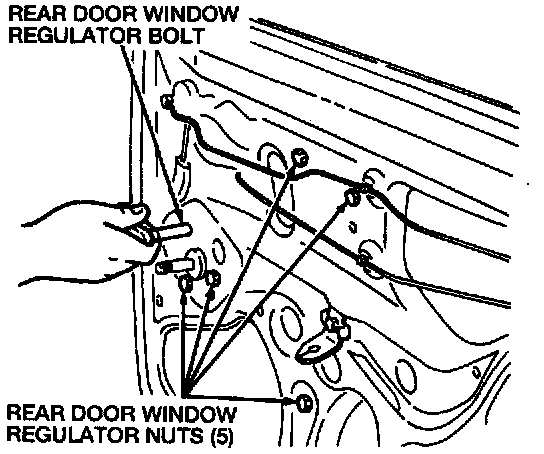

2. Remove the five rear door window regulator nuts and the rear door window regulator bolt.
3. Remove the rear window regulator through the access hole in the rear door.

INSTALLATION
1. To install, reverse the removal procedure.
2. Tighten the rear door window regulator nuts to 9-13 Nm (7-9 Lb-Ft).
3. Tighten the rear door window regulator bolt to 8-11 Nm (6-8 Lb-Ft).
