Component Locations

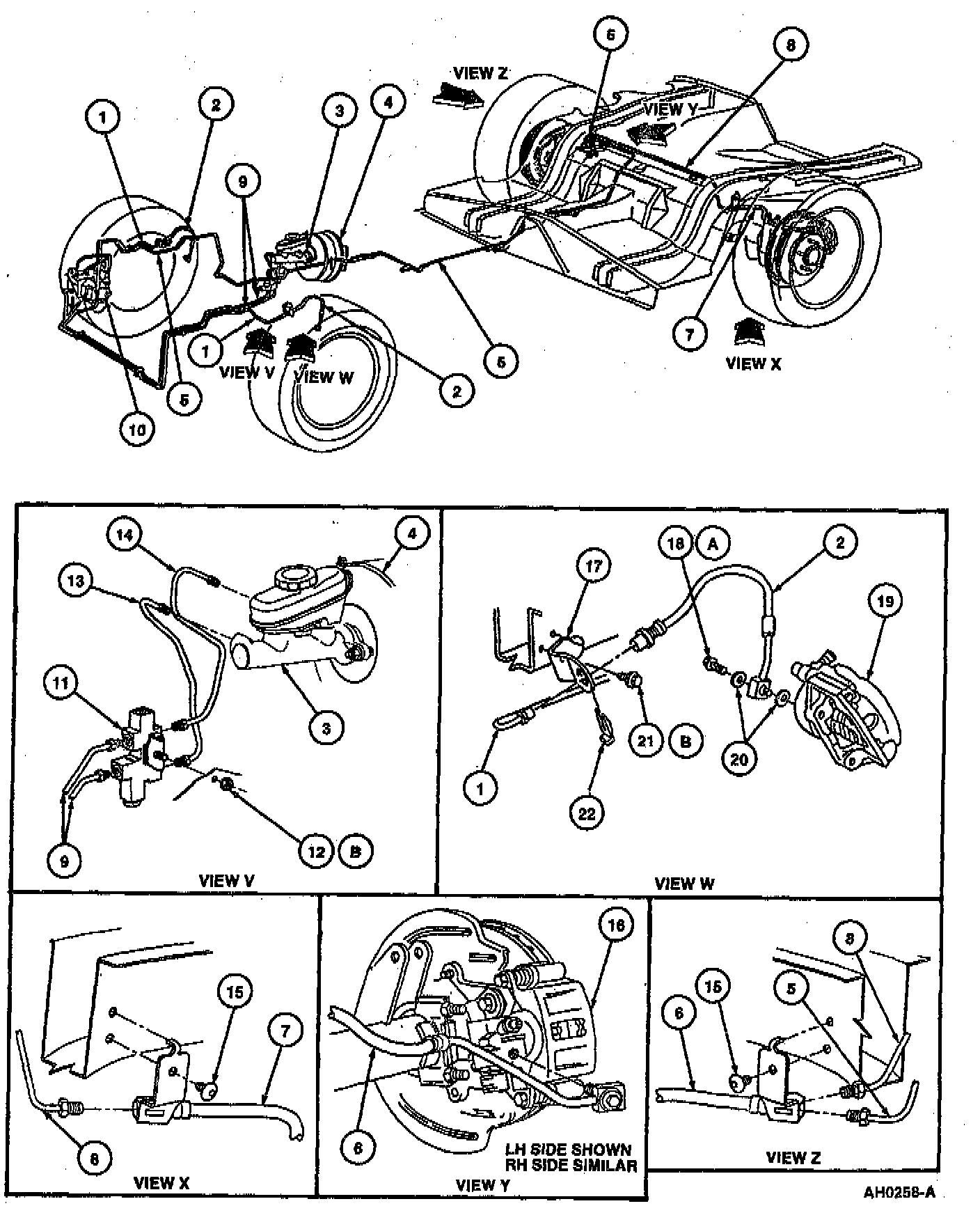

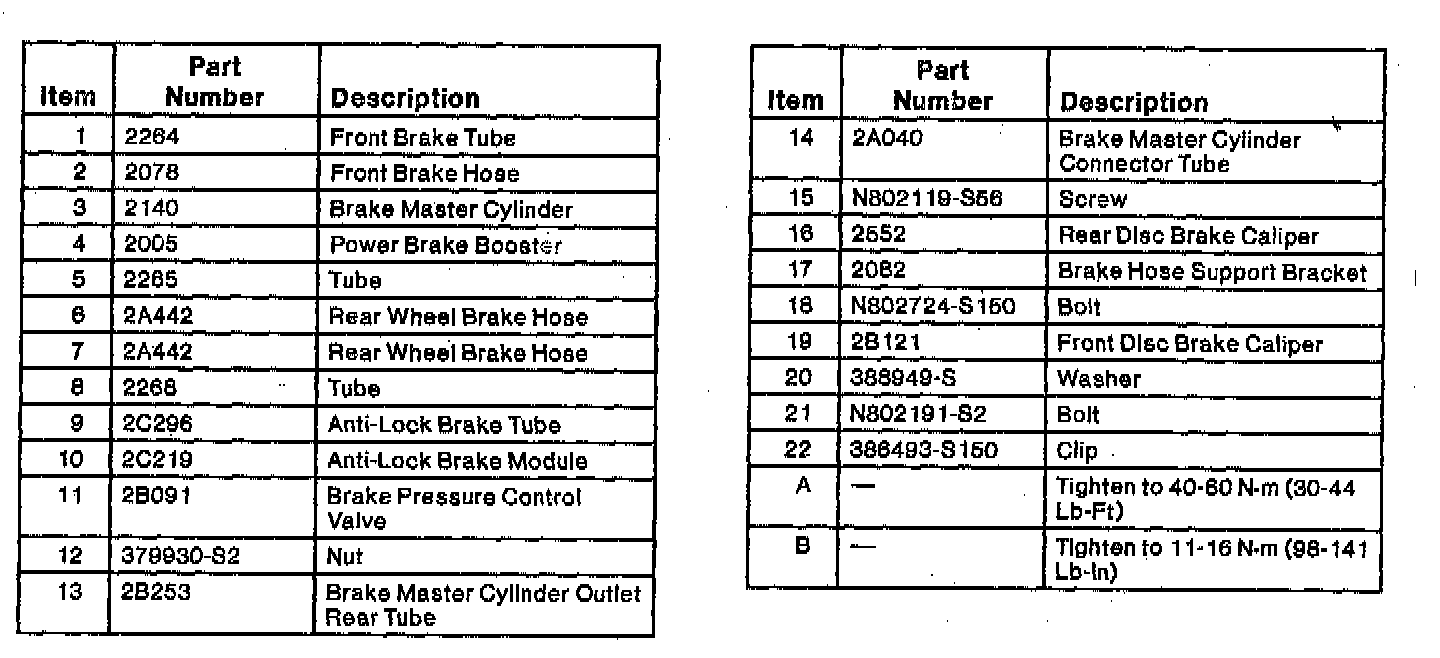

Hydraulic System With ABS (Part 1 Of 2):



Hydraulic System With ABS (Part 2 Of 2):
