Hydraulic System: Diagrams

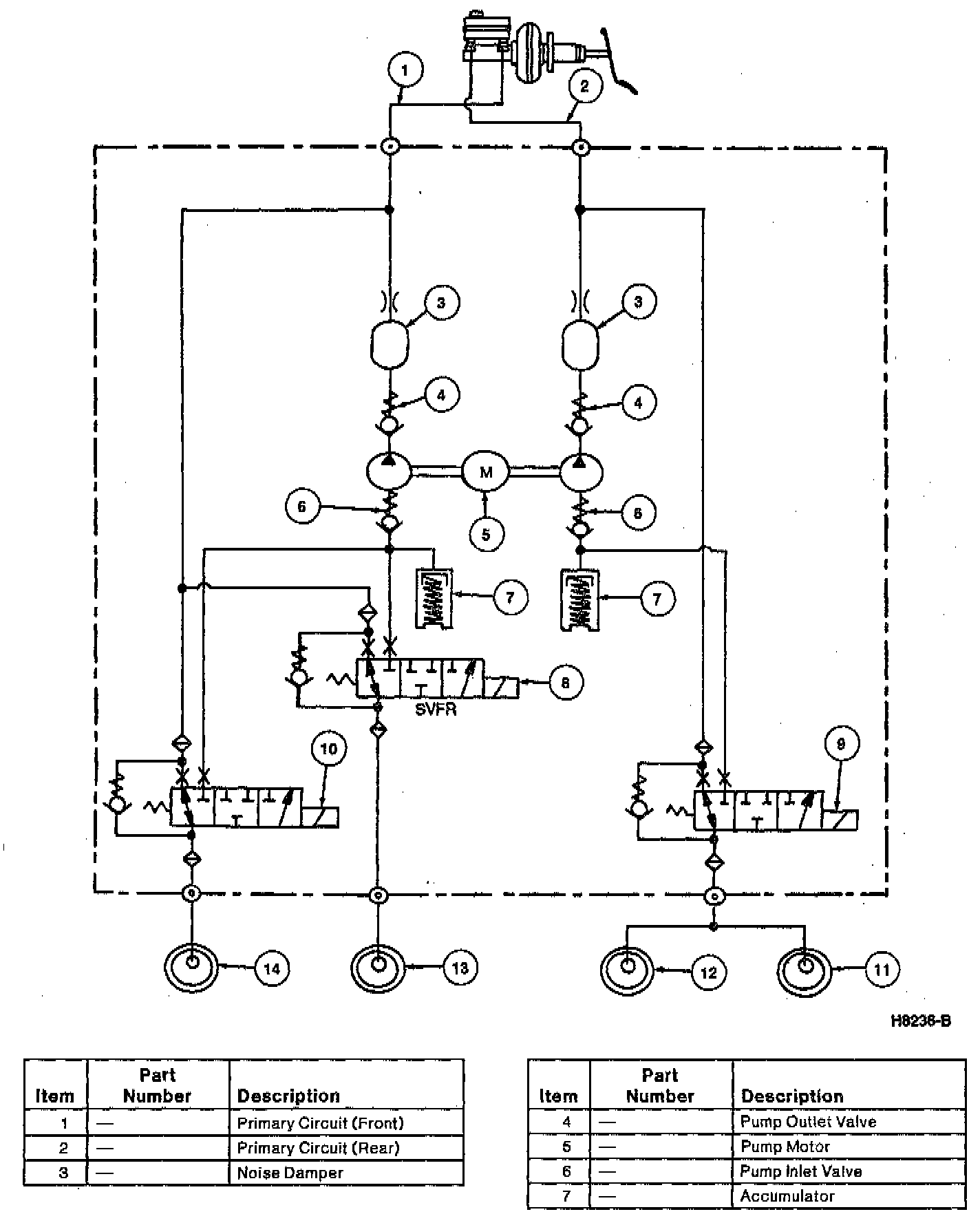

Hydraulic Schematic/Description (Part 1 Of 2):

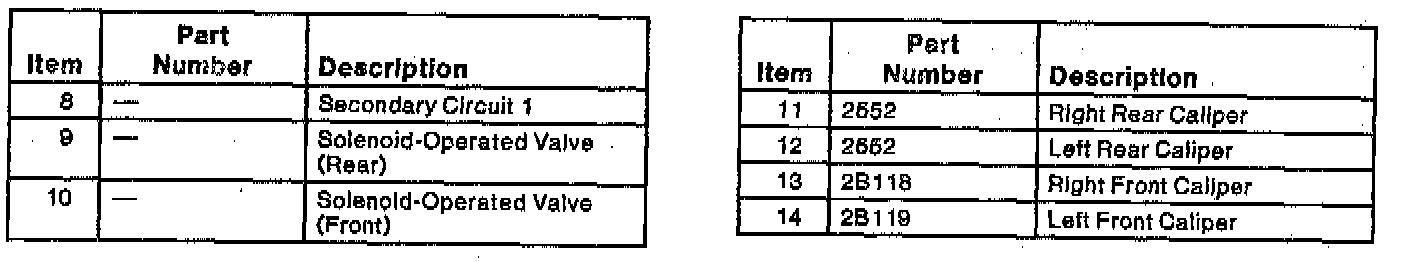

Hydraulic Schematic/Description (Part 2 Of 2):
