Clock: Service and Repair

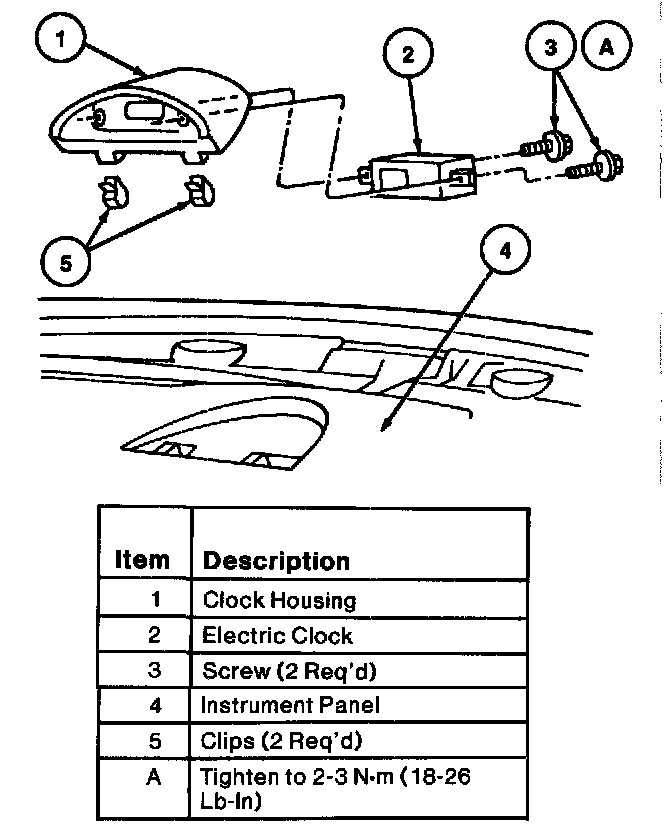

REMOVAL AND INSTALLATION
1. Remove clock and housing by applying upward pressure to top of housing and working two front clips out of instrument panel upper finish panel
2. Disconnect clock electrical connector.
3. Remove two screws retaining electric clock to housing.
4. Remove electric clock from housing.
5. To install, reverse Removal procedure. Tighten clock retaining screws to 2-3 N.m (18-26 lb-in).
