Probe L4-121 2.0L DOHC VIN A MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Temperature Sensor/Switch, A/T
Transmission Temperature Sensor/Switch, A/T

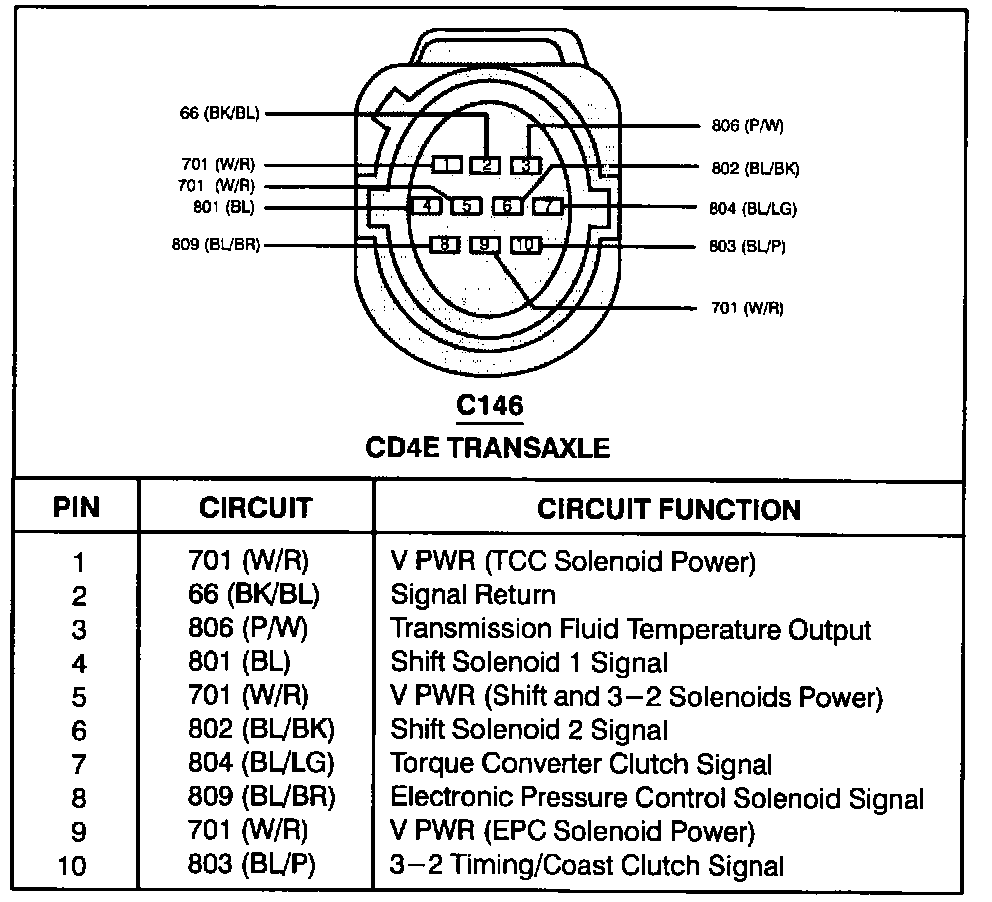

CD4E Transaxle:
