Compressor Clutch Coil: Service and Repair

REMOVAL
1. Remove the A/C compressor clutch and A/C clutch pulley.




2. Remove the three A/C clutch field coil screws.

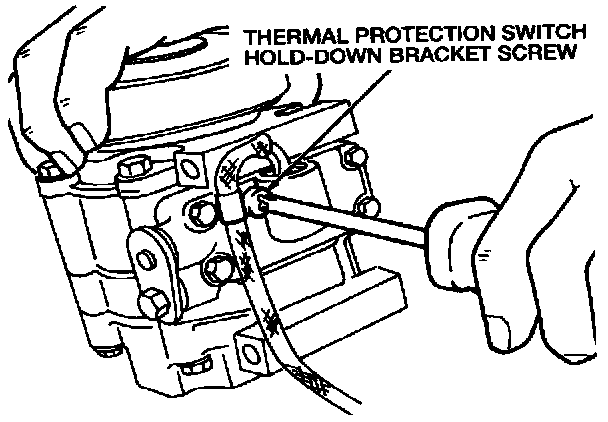

3. Remove the thermal protection switch hold-down bracket screw.




4. Disconnect the thermal protection switch and remove the A/C clutch field coil.

INSTALLATION
1. To install, reverse the removal procedure.
