Condenser Fan: Service and Repair

REMOVAL
1. Remove the radiator.
2. Remove the fan shroud.
3. Remove the A/C condenser cooling fan blade clip.

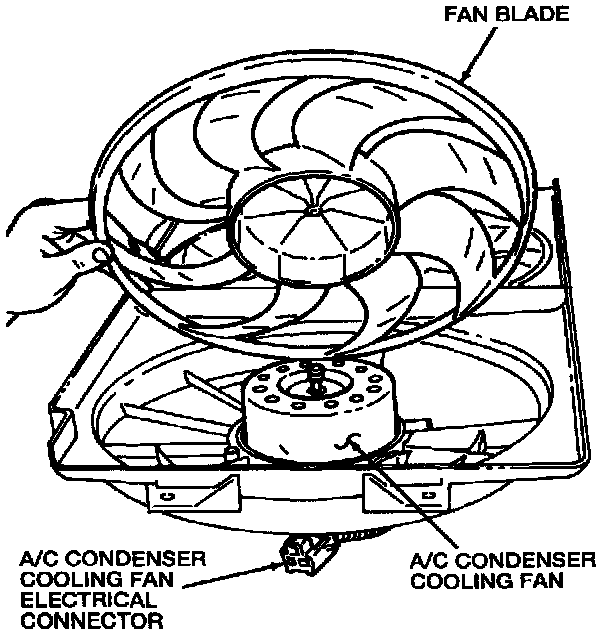

4. Remove the fan blade from the A/C condenser cooling fan.

INSTALLATION
1. To install, reverse the removal procedure.
