Heater Core: Service and Repair

REMOVAL
1. Partially drain the cooling system.
2. Remove the heater core case.

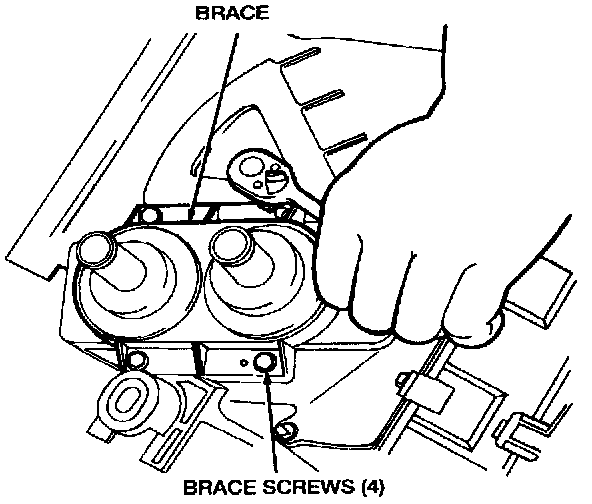

3. Remove the four brace screws.

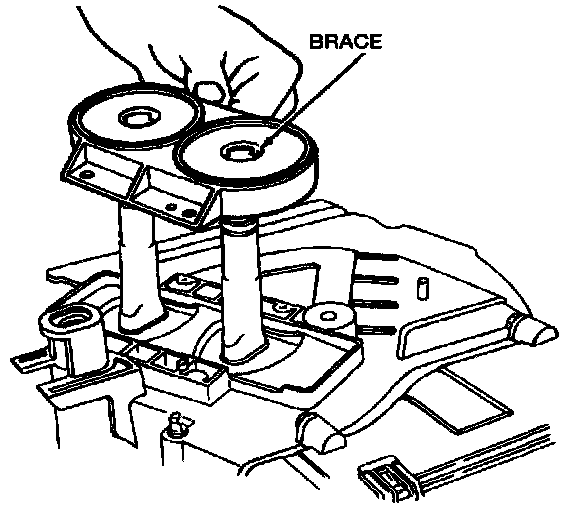

4. Remove the brace.

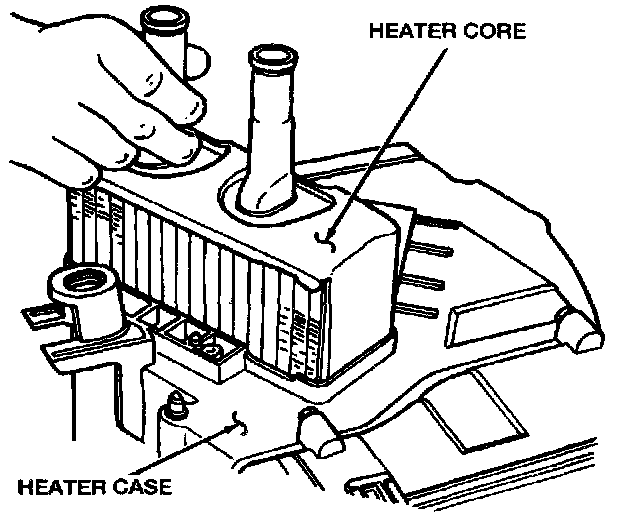

5. Remove the heater core from the heater core case.

INSTALLATION
1. To install, reverse the removal procedure.
2. Fill the cooling system.
