Full Body Views

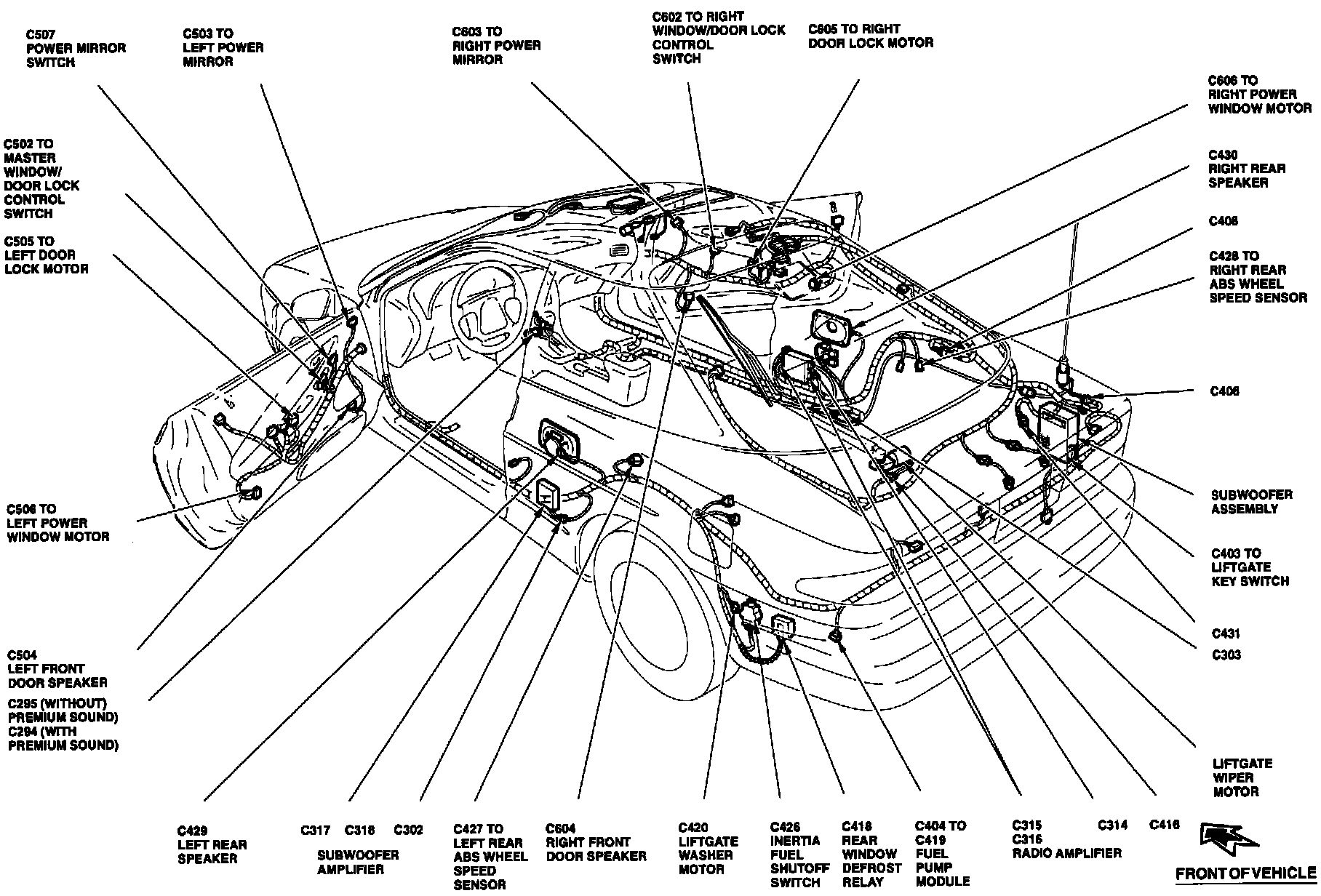

Full Body View:

FUEL PUMP MODULE
INERTIA FUEL SHUTOFF SWITCH
LEFT DOOR LOCK MOTOR
LEFT FRONT DOOR SPEAKER
LEFT POWER MIRROR
LEFT POWER WINDOW MOTOR
LEFT REAR ABS WHEEL SPEED SENSOR
LEFT REAR SPEAKER
LIFTGATE KEY SWITCH
LIFTGATE WASHER MOTOR
LIFTGATE WIPER MOTOR
MASTER WINDOW/DOOR LOCK CONTROL SWITCH
POWER MIRROR SWITCH
RADIO AMPLIFIER
REAR WINDOW DEFROST RELAY
RIGHT DOOR LOCK MOTOR
RIGHT FRONT DOOR SPEAKER
RIGHT POWER MIRROR
RIGHT POWER WINDOW MOTOR
RIGHT REAR ABS WHEEL SPEED SENSOR
RIGHT REAR SPEAKER
RIGHT WINDOW/DOOR LOCK CONTROL SWITCH
SUBWOOFER AMPLIFIER
SUBWOOFER ASSEMBLY

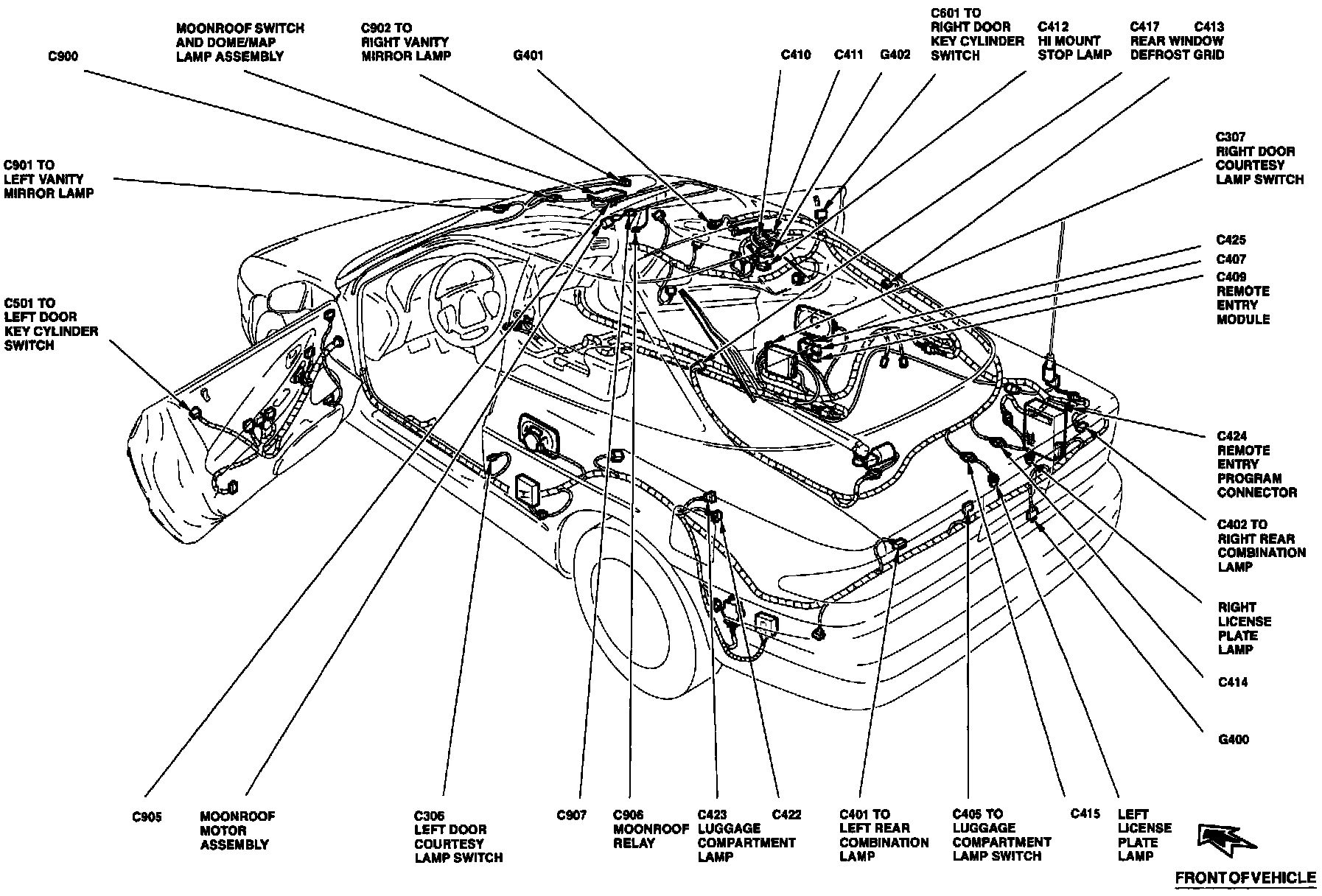

Full Body View:

DOME/MAP LAMP ASSEMBLY
HIGH MOUNT STOP LAMP
LEFT DOOR COURTESY LAMP SWITCH
LEFT DOOR KEY CYLINDER SWITCH
LEFT LICENSE PLATE LAMP
LEFT REAR COMBINATION LAMP
LEFT VANITY MIRROR LAMP
LUGGAGE COMPARTMENT LAMP
LUGGAGE COMPARTMENT LAMP SWITCH
MOONROOF MOTOR ASSEMBLY
MOONROOF RELAY
MOONROOF SWITCH
REAR WINDOW DEFROST GRID
REMOTE ENTRY MODULE
REMOTE ENTRY PROGRAM CONNECTOR
RIGHT DOOR COURTESY LAMP SWITCH
RIGHT DOOR KEY CYLINDER LAMP
RIGHT LICENSE PLATE LAMP
RIGHT REAR COMBINATION LAMP
RIGHT VANITY MIRROR LAMP
