Exhaust Gas Recirculation: Description and Operation

PURPOSE
The Exhaust Gas Recirculation (EGR) system recirculates portions of the exhaust gas back into the engine to reduce the amount of nitrogen released during combustion, and to reduce combustion temperature. The amount of exhaust gases released into the engine is proportional to the load on the engine.

COMPONENTS
One of two possible EGR valves will be used depending on the Transmission/Emissions package with which the vehicle is equipped:

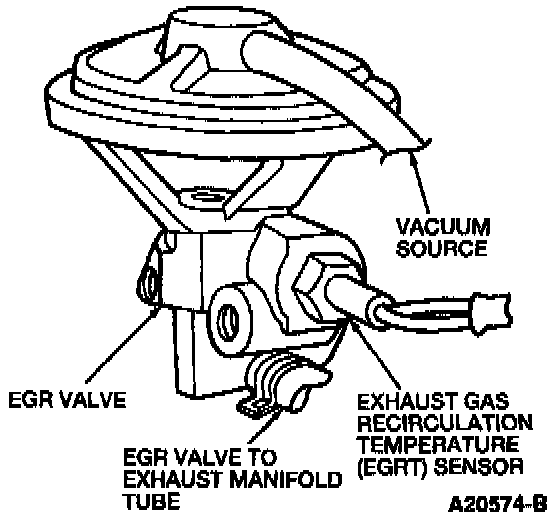

EGR Valve:

MTX (M/T) with Federal or Canada emissions

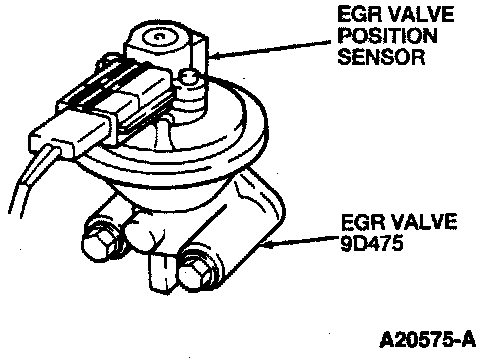

EGR Valve:

CD4E (A/T) or a California vehicle with an MTX

If the vehicle has the CD4E (50-state and Canada) or is a California vehicle with an MTX, the EGR system uses both an EGR vacuum regulator solenoid and a EGR vent solenoid. Both solenoids are located on a bracket under the intake manifold.
