Transmission Mount, A/T

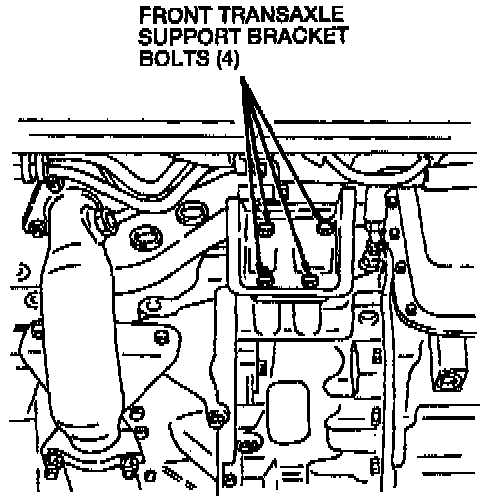

Front Transaxle Support Bracket Bolts: 38-51 Nm (28-38 ft. lbs.).





Transmission Support Cross Member.

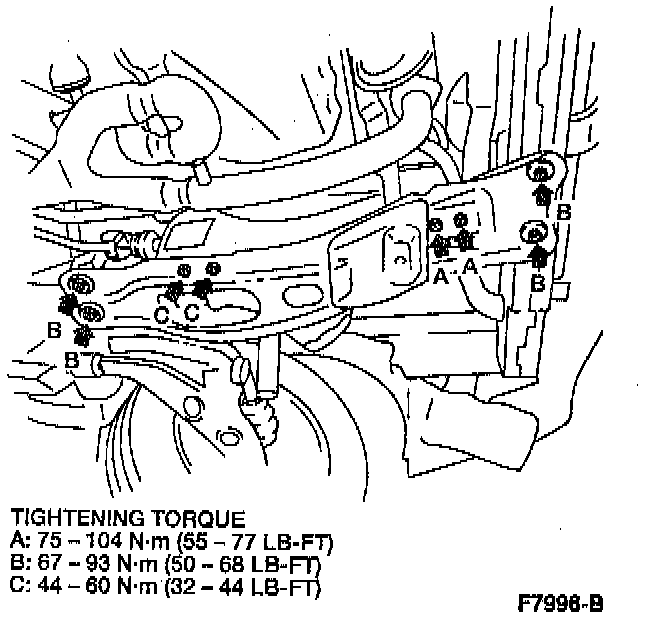

Rear Engine Support Nuts (A): 75-104 (55-77 ft. lbs.)
Rear Engine Support Bolts And Nuts (B): 67-93 (50-68 ft. lbs.)
Rear Engine Support Nuts (C): 44-60 Nm (312-44 ft. lbs.)
