Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1998
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>

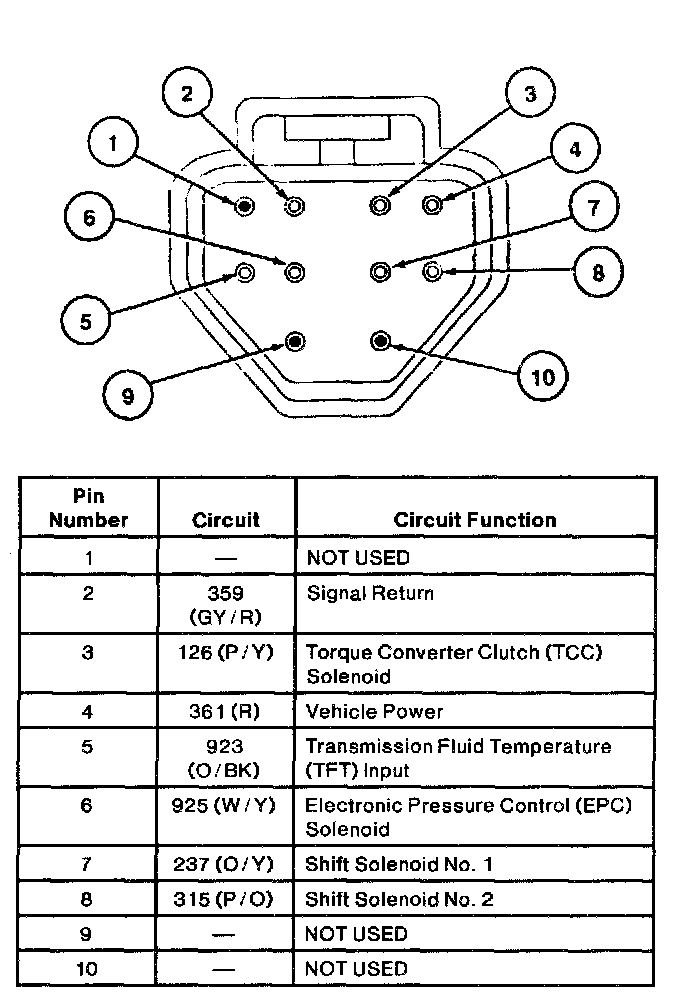

Transmission Harness Connector (C132)
Transmission Harness Connector (C132)
Transmission Harness Connector (C132):
