Water Pump

REMOVAL
1. Rotate drive belt tensioner clockwise by hand and remove drive belt from drive belt tensioner.

NOTE: If removal of the water pump drive pulley is required.

2. Remove drive belt from water pump drive pulley and water pump pulley.

INSTALLATION
1. Position drive belt onto water pump drive pulley and water pump pulley.

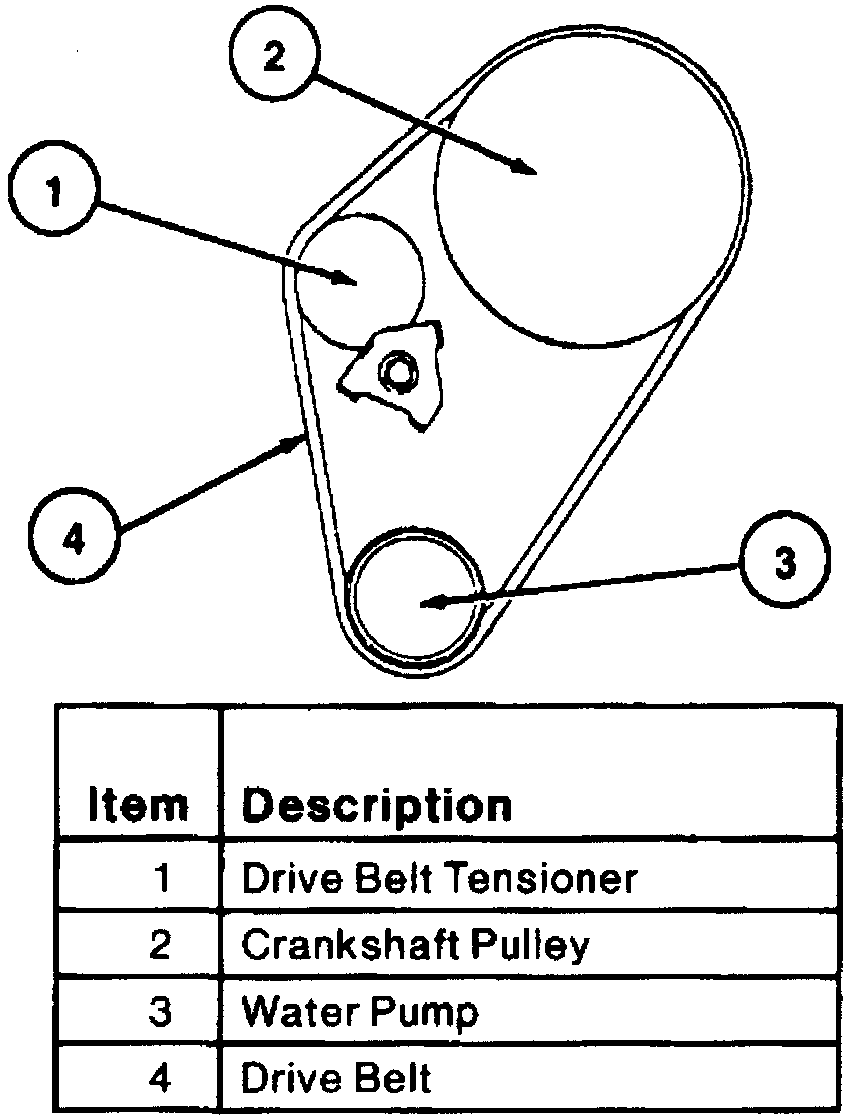

Fig. 21 Water Pump Drive Belt Routing:

2. Rotate drive belt tensioner clockwise by hand and install drive belt over top of drive belt tensioner pulley. Make sure all V-grooves make proper contact with pulleys.
