Hose/Line HVAC: Service and Repair

REMOVAL
1. Recover the refrigerant.

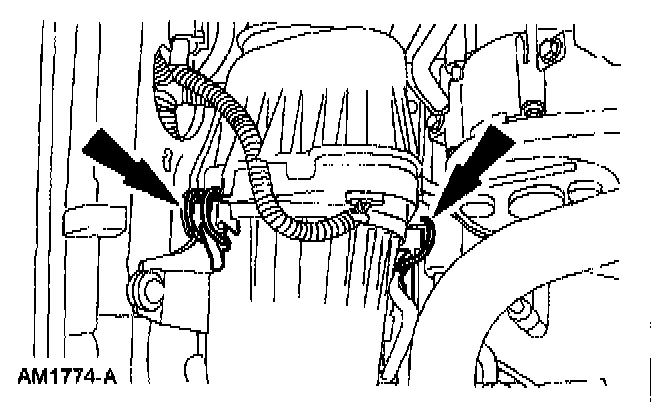

2. Unlatch the air breather.

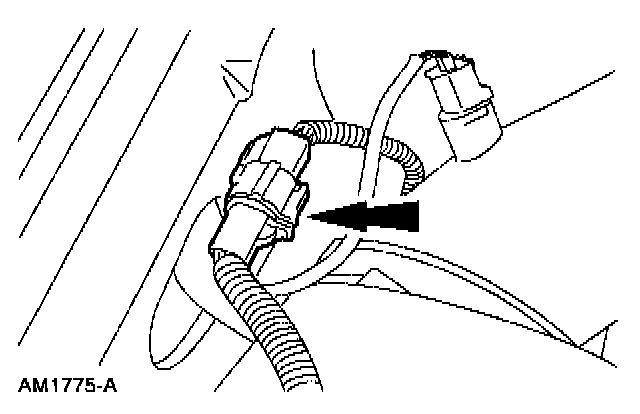

3. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

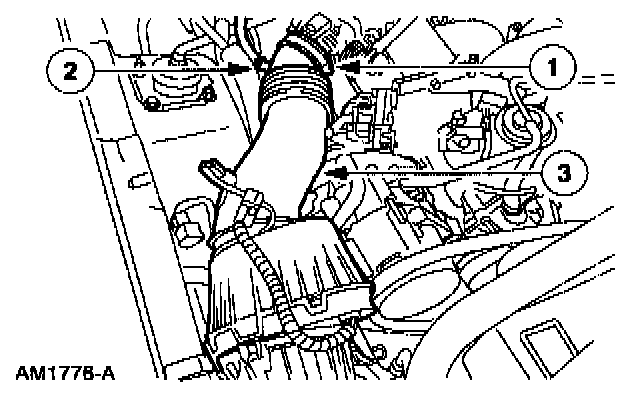

4. Remove the air cleaner outlet tube.
1 Loosen the clamp.
2 Disconnect the the crankcase ventilation tube.
3 Remove the air cleaner outlet tube.

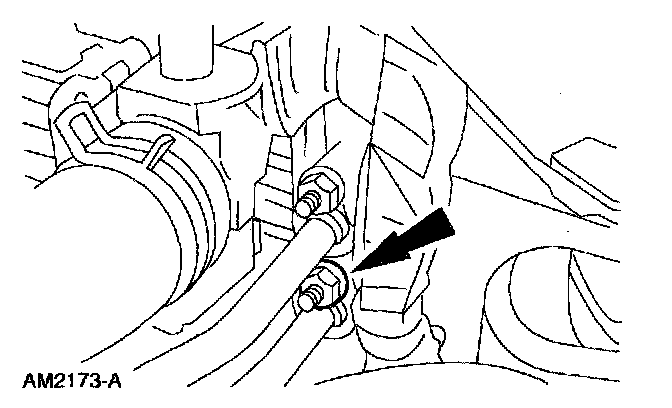

5. Remove the nut and separate the line from the condenser.

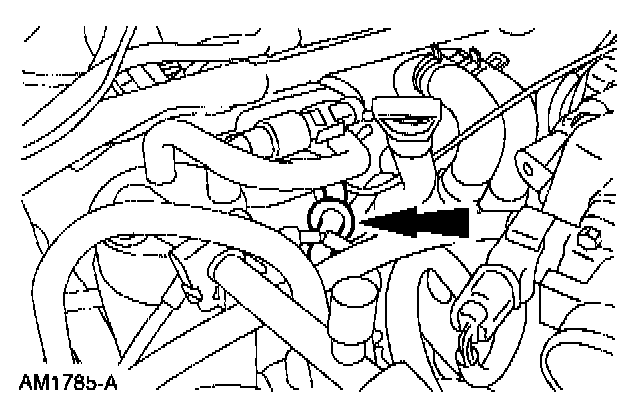

6. Disconnect the line.

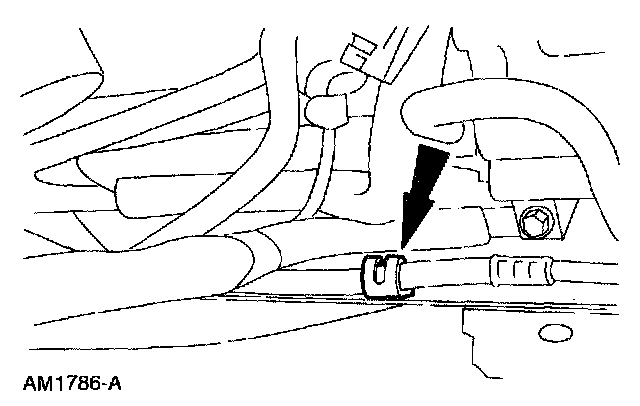

7. Remove the clamp.
8. Remove the line.

INSTALLATION







1. To install, reverse the removal procedure.
