Headlamp: Adjustments

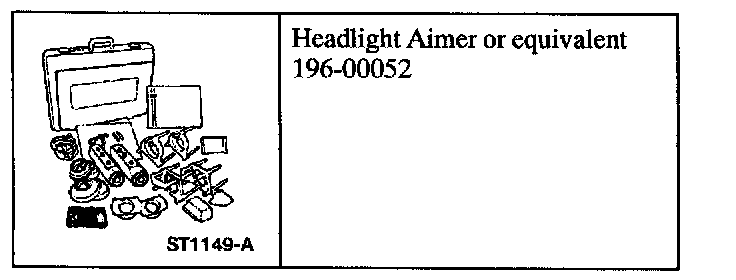

Headlight Aimer:

SPECIAL SERVICE TOOL(S)

1. Before starting headlamp assembly adjustment:
^ Check tire inflation.
^ Check that no other load is in the vehicle other than a half tank of gas.
^ Check that the vehicle is on level ground.







2. Using the special tool, adjust the headlamps.

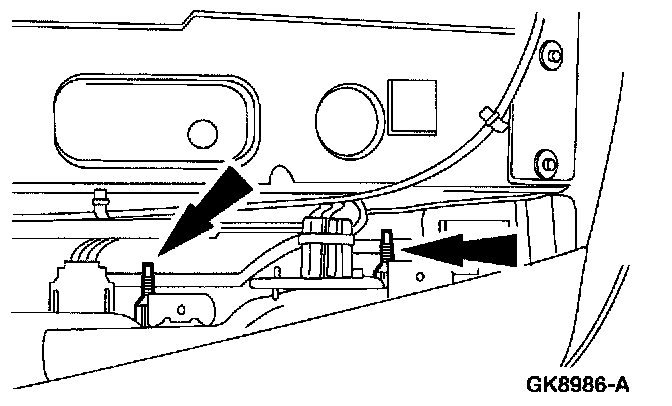

^ Turn the adjusters to adjust the headlamp.
^ Adjust the headlamps to the specifications located on each headlamp.
