Installation

Installation

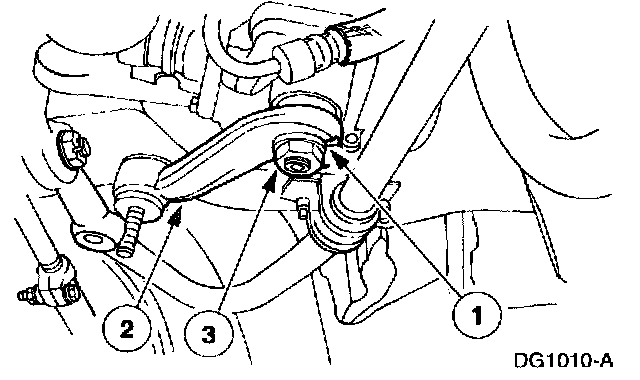

1. Install the steering gear sector shaft arm.
1 Align the mark on the steering gear sector shaft arm with the alignment mark on the shaft.
2 Install the steering gear sector shaft arm.
3 Install a new lockwasher and nut. Do not tighten the nut.

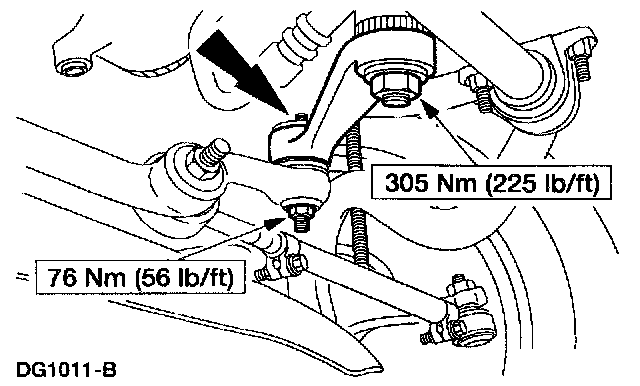

2. Install the steering gear sector shaft arm onto the steering sector shaft arm drag link. Install the nut and a new lock nut.
3. Lower the vehicle.
4. Check the wheel alignment. Adjust as necessary.
