Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2000 >> Escort ZX2 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Hydraulic System, Brakes

Hydraulic System, Brakes

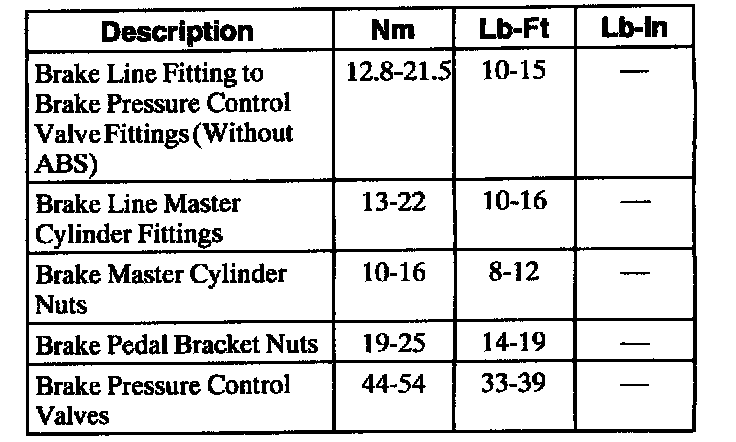

1 Of 3:

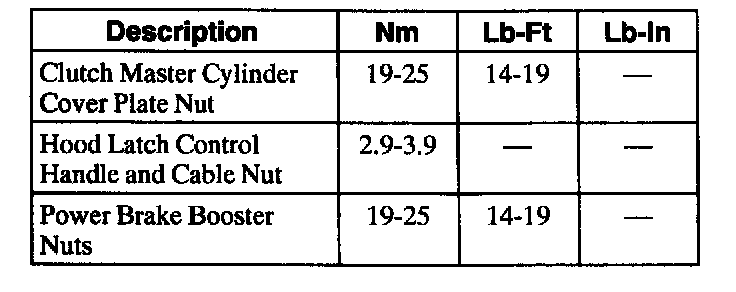

2 Of 3:

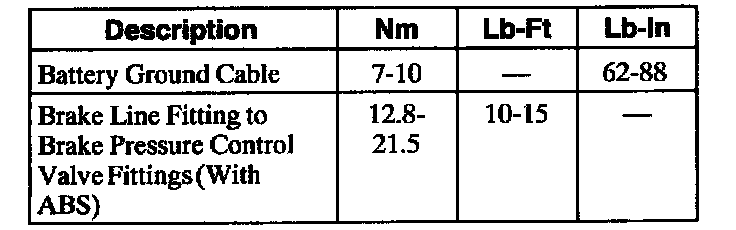

3 Of 3:





Torque Specifications
