Steering System

The power steering system has a typical rack-and-pinion design consisting of the following components:

1 Of 2:

2 Of 2:

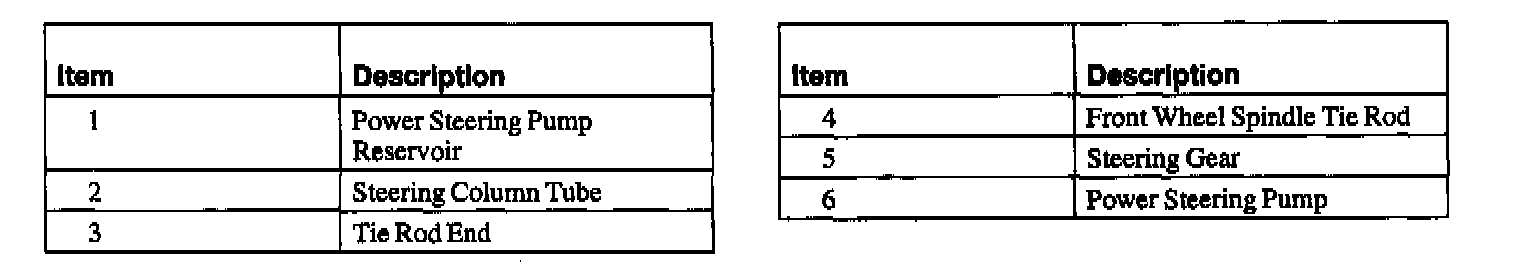

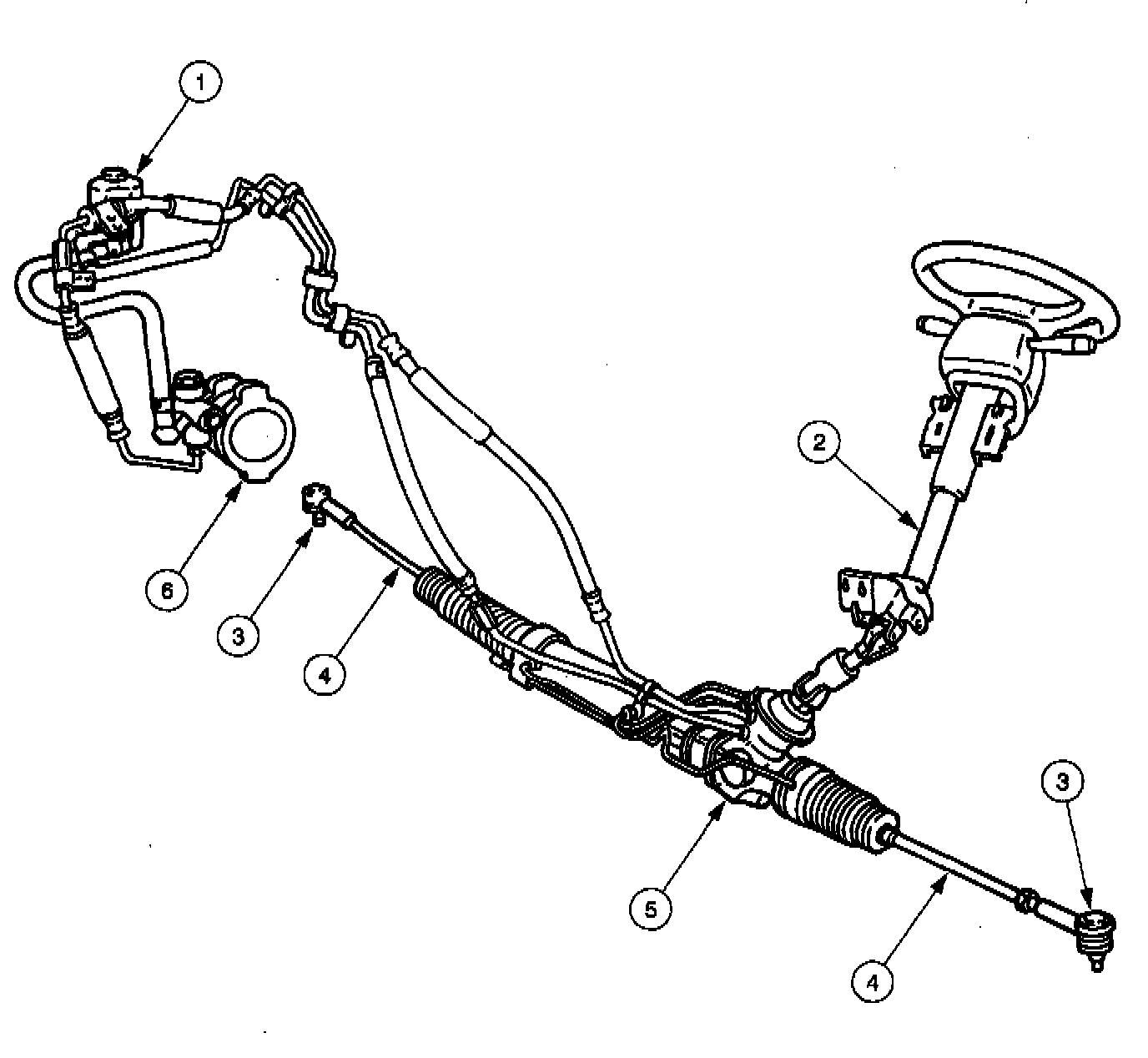

Steering System Components-Escort-Tracer Sedan/Wagon

1 Of 3:

2 Of 3:

3 Of 3:

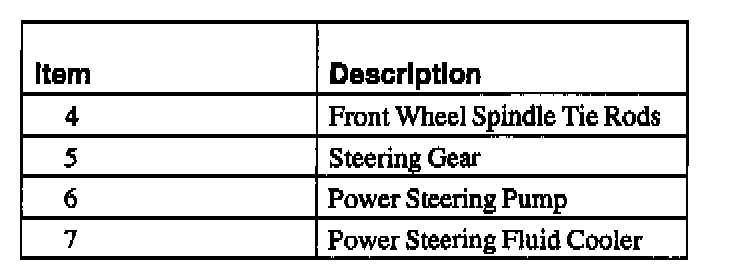

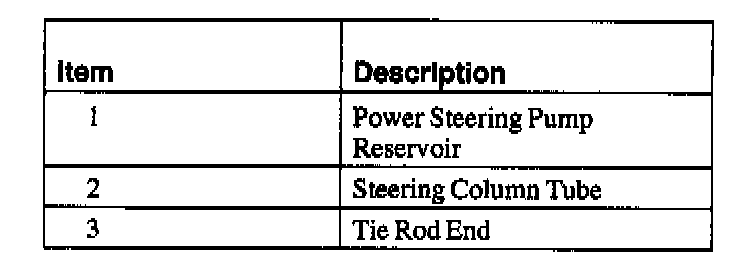

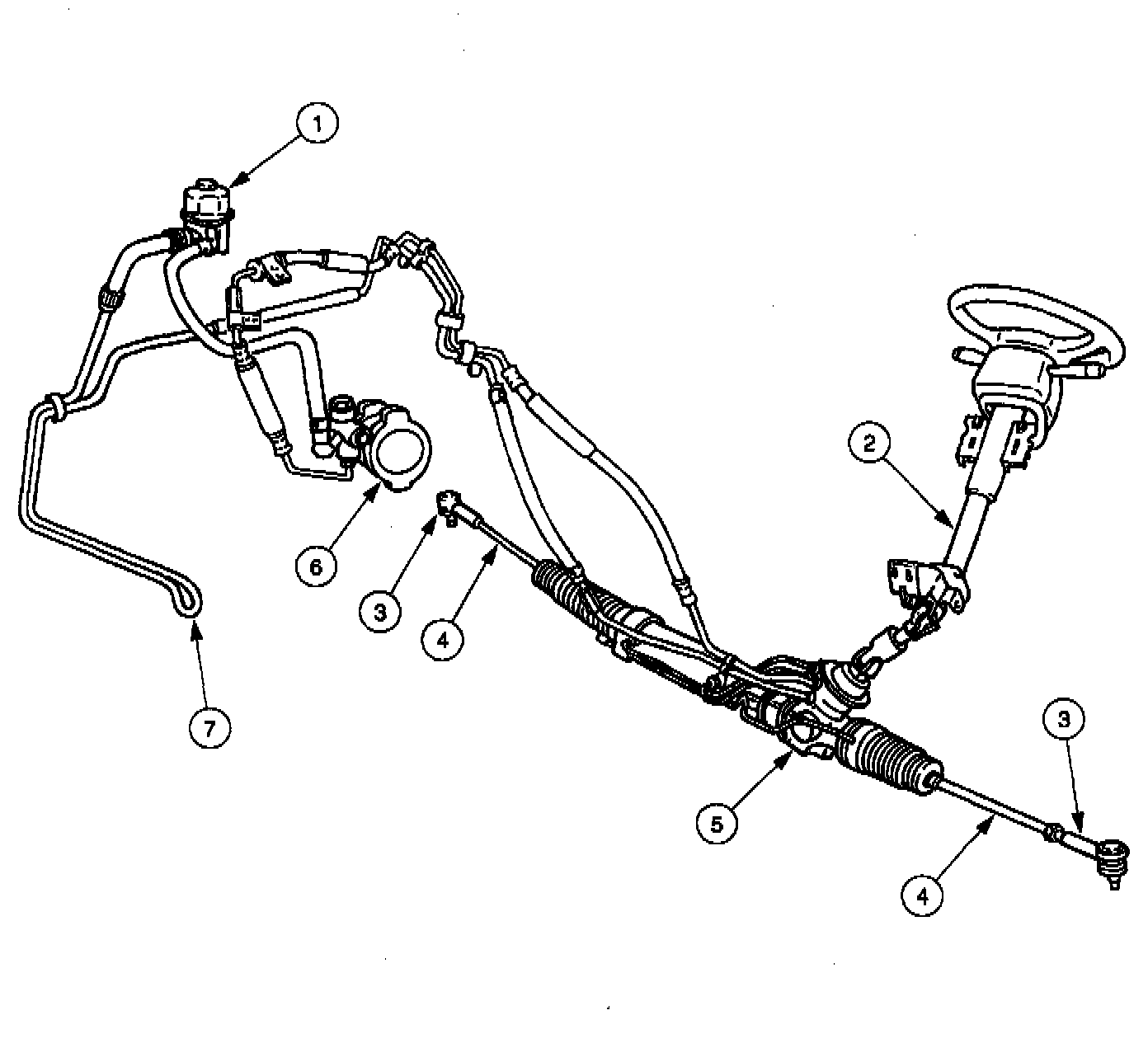

Steering System Components-Escort Coupe
