Anti-Theft - Active
Anti-Theft - Active

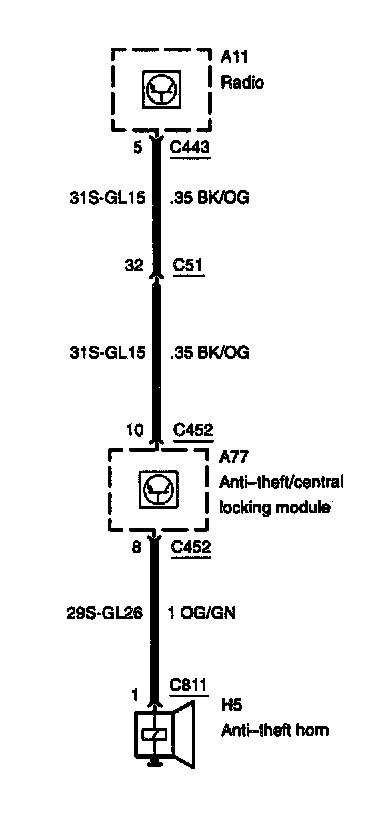

Diagram 419-01A-00-1:

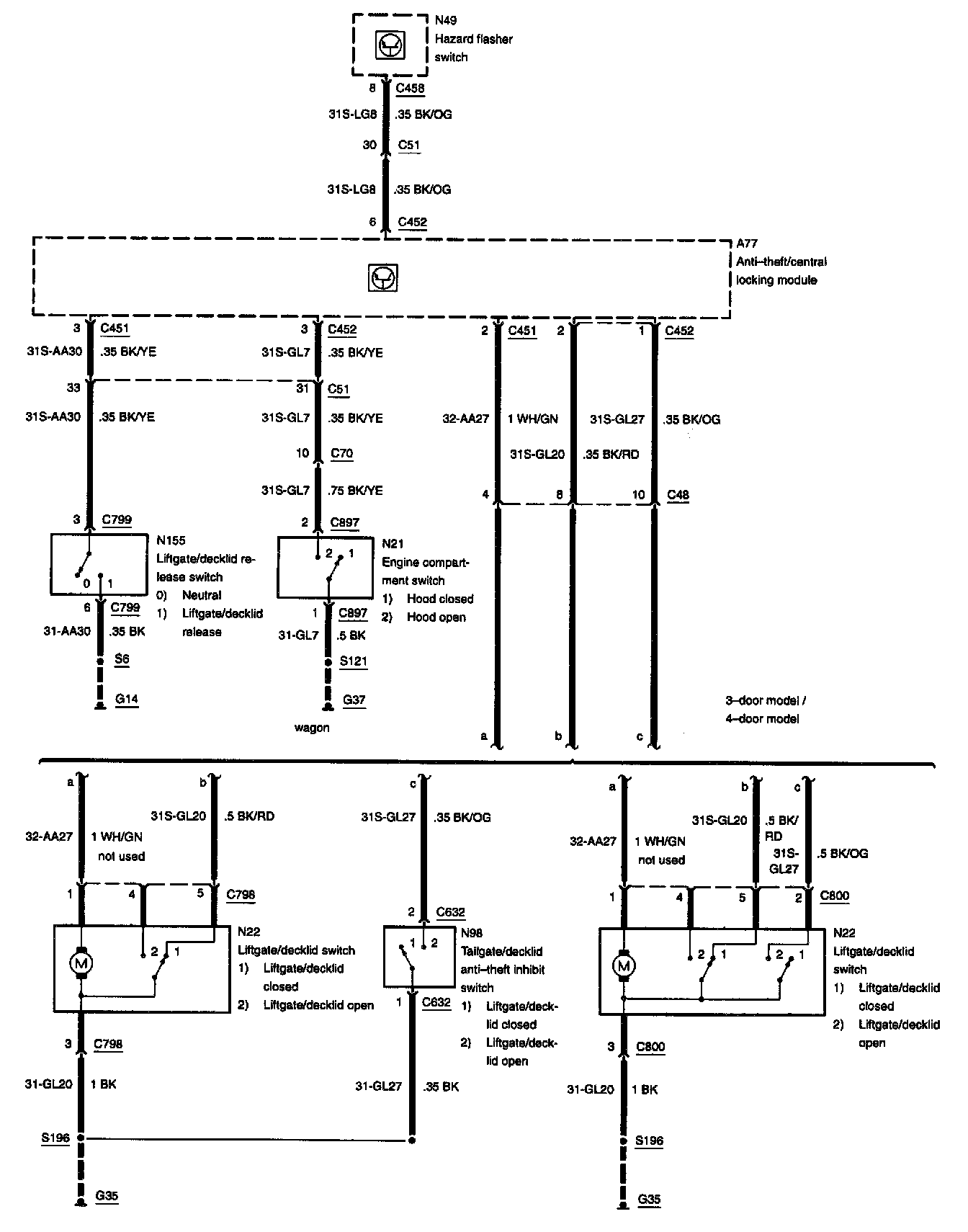

Diagram 419-01A-00-2:

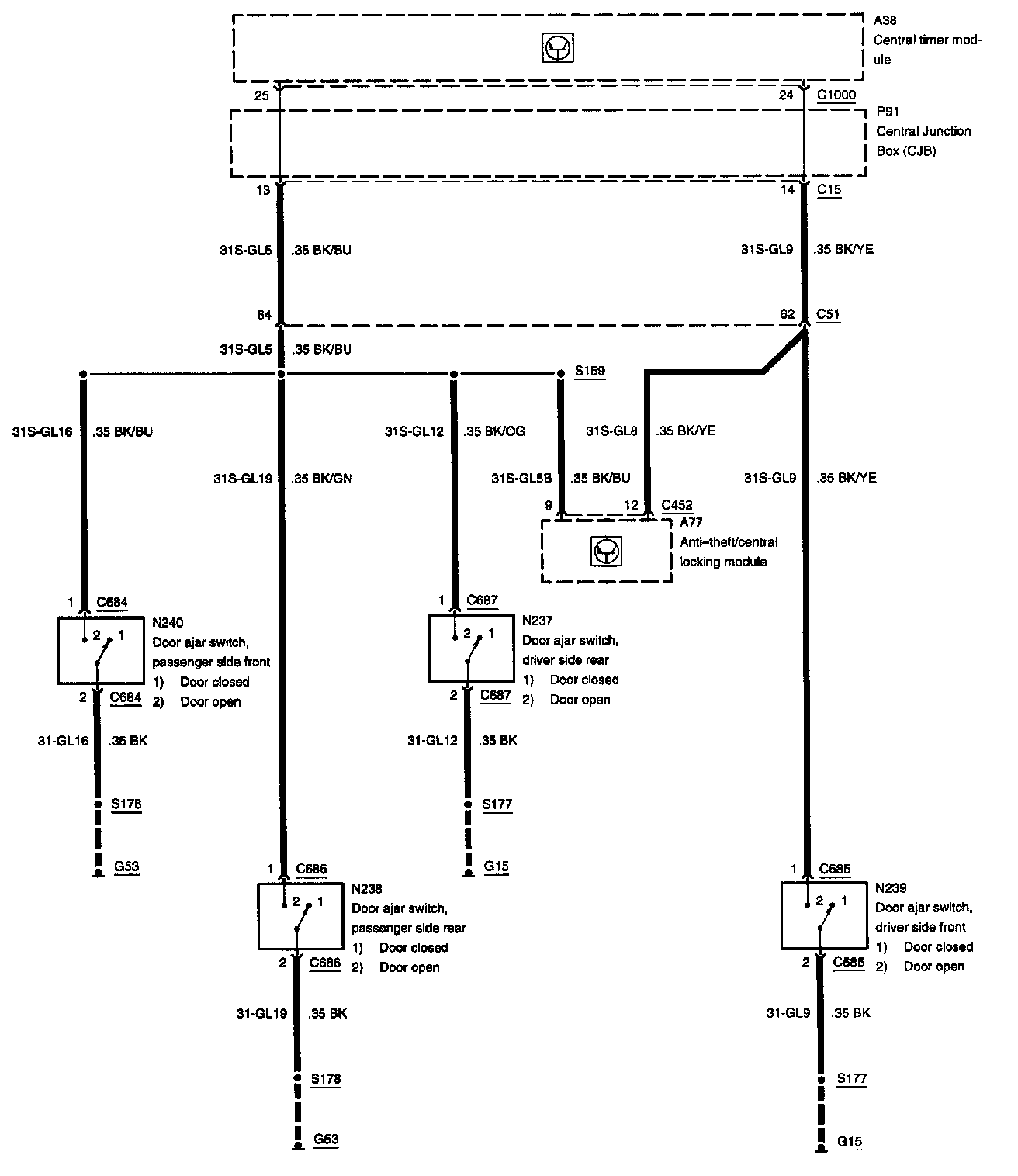

Diagram 419-01A-00-3:

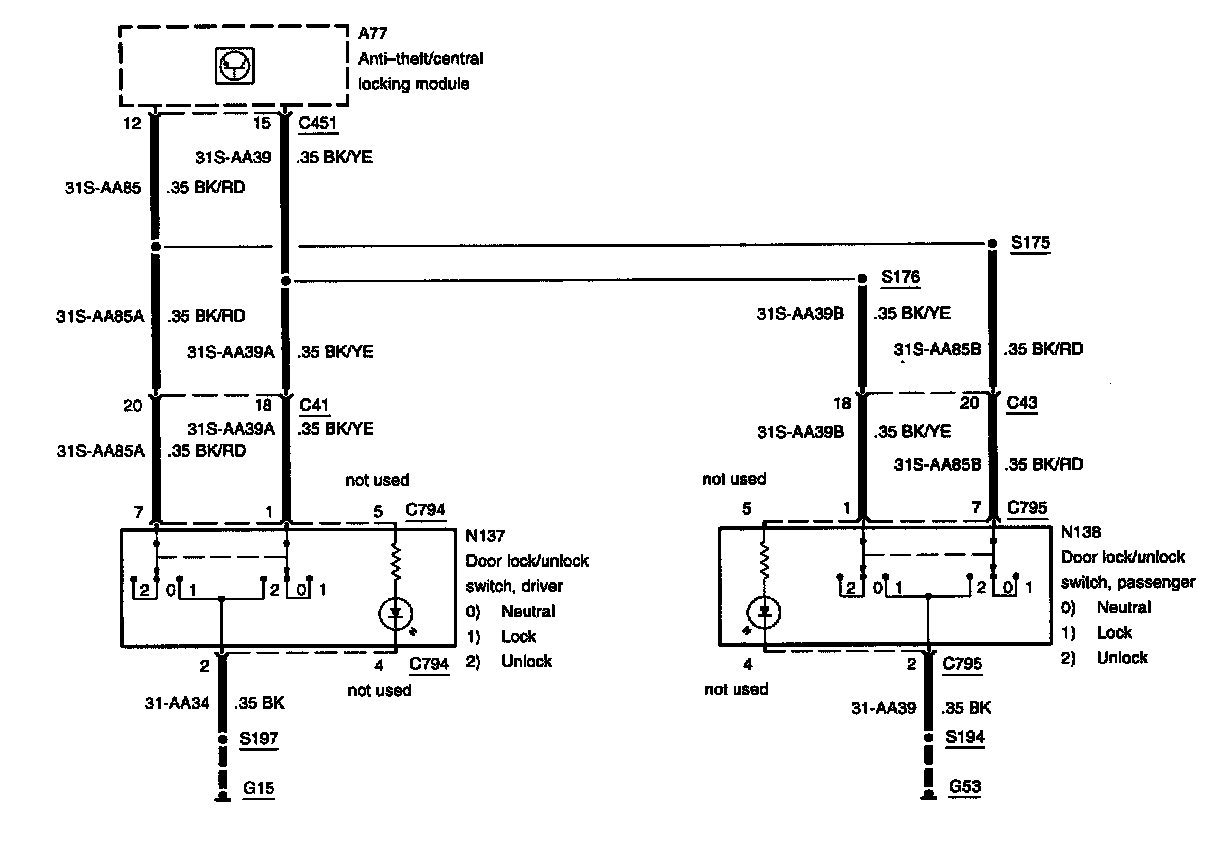

Diagram 419-01A-00-4:
Diagram 419-01A-00-5:
