Canister Purge Control Valve: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

WARNING: THE EVAPORATIVE EMISSION SYSTEM CONTAINS FUEL VAPOR AND CONDENSED FUEL VAPOR. ALTHOUGH NOT PRESENT IN LARGE QUANTITIES, IT STILL PRESENTS THE DANGER OF EXPLOSION OR FIRE. DISCONNECT THE BATTERY GROUND CABLE FROM THE BATTERY TO MINIMIZE THE POSSIBILITY OF AN ELECTRICAL SPARK OCCURRING, POSSIBLY CAUSING A FIRE OR EXPLOSION IF FUEL VAPOR OR FUEL LIQUID IS PRESENT IN THE AREA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

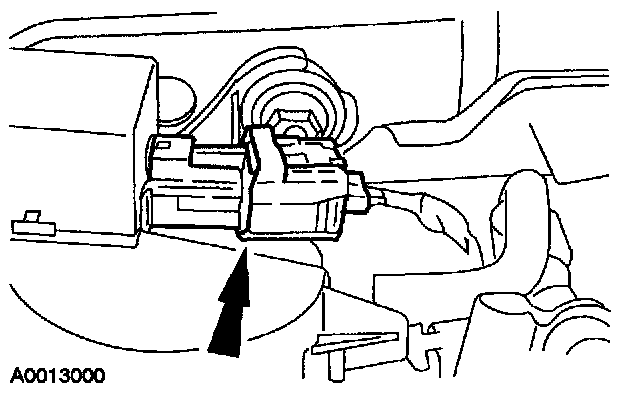

2. Disconnect the Evaporative Emission (EVAP) canister purge valve electrical connector.

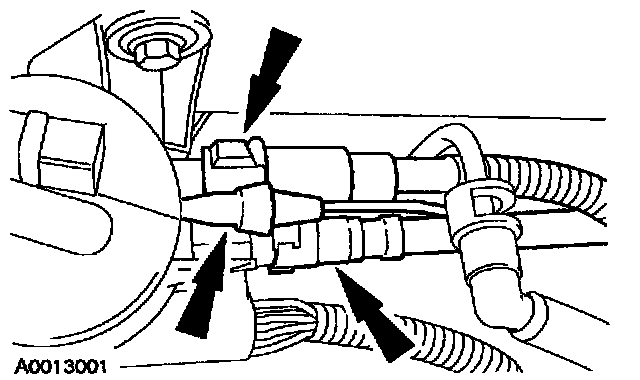

3. Disconnect the evaporative emission return tube, control vacuum line and the EVAP canister purge outlet tube.







4. Remove the Evaporative Emission (EVAP) canister purge valve.

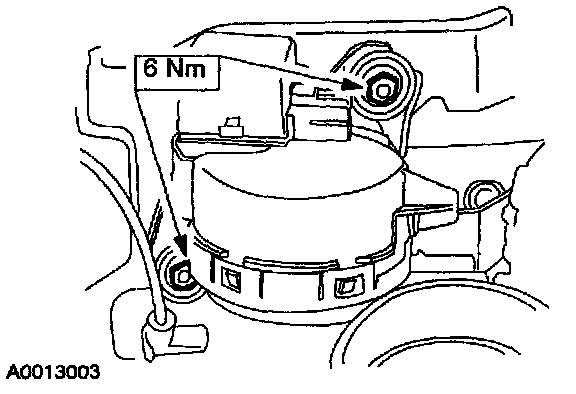

^ Remove the bolts.

INSTALLATION







1. To install, reverse the removal procedure.
^ Carry out the Leak Test. For additional information, refer to Evaporative Emission System Leak Test. Evaporative Emission System Leak Test
^ Carry out the Evaporative Emission Repair Verification Drive Cycle. For additional information, refer to Evaporative Emission Repair Verification Drive Cycle. Service and Repair
