Evaporative Check Valve: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Do not remove the evaporative emission hoses from the assembly as damage may occur to the valve or the fittings. The fuel vapor control valve and hoses are repaired as an assembly only.

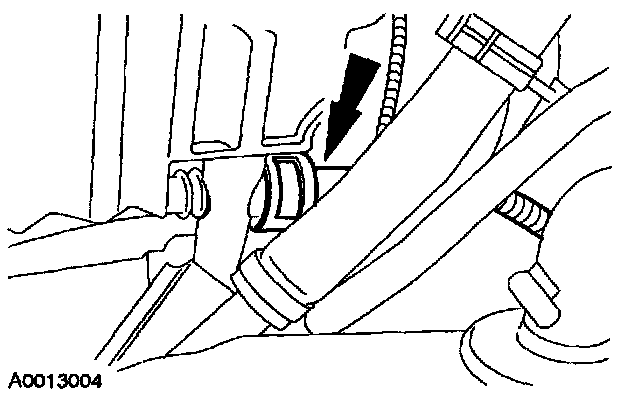

2. Disconnect and remove the fuel vapor control valve tube assembly at the inline T connector.

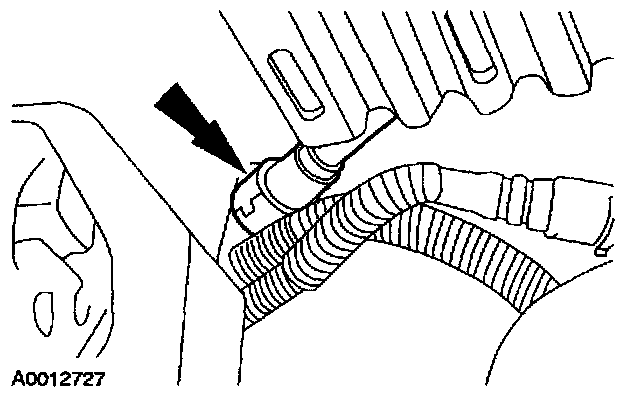

3. Disconnect the vapor Lube.







4. Remove the fuel vapor control valve tube assembly.

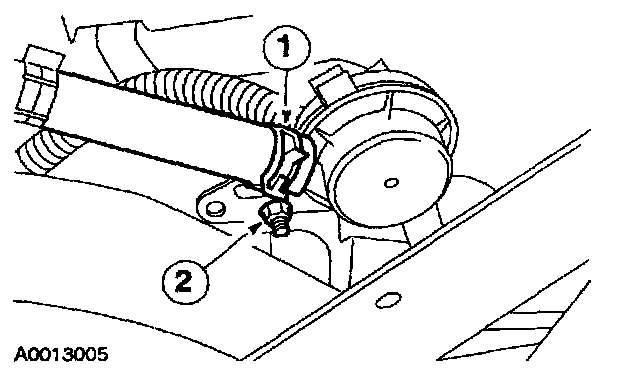

1. Remove the hose.
2. Remove the fuel vapor control valve tube assembly nut.

INSTALLATION

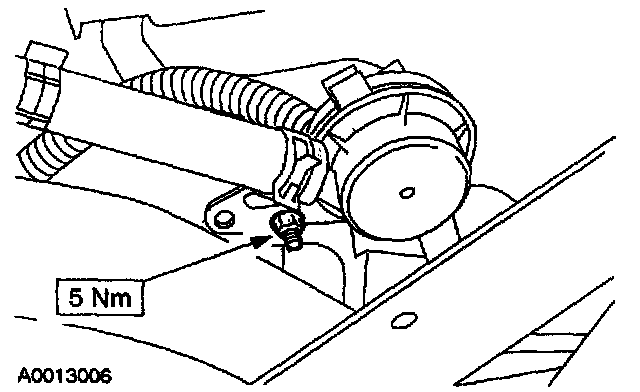

1. To install, reverse the removal procedure.
^ Carry out the Leak Test. For additional information, refer to Evaporative Emission System Leak Test. Evaporative Emission System Leak Test
^ Carry out the Evaporative Emission Repair Verification Drive Cycle. For additional information, refer to Evaporative Emission Repair Verification Drive Cycle. Service and Repair
