Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

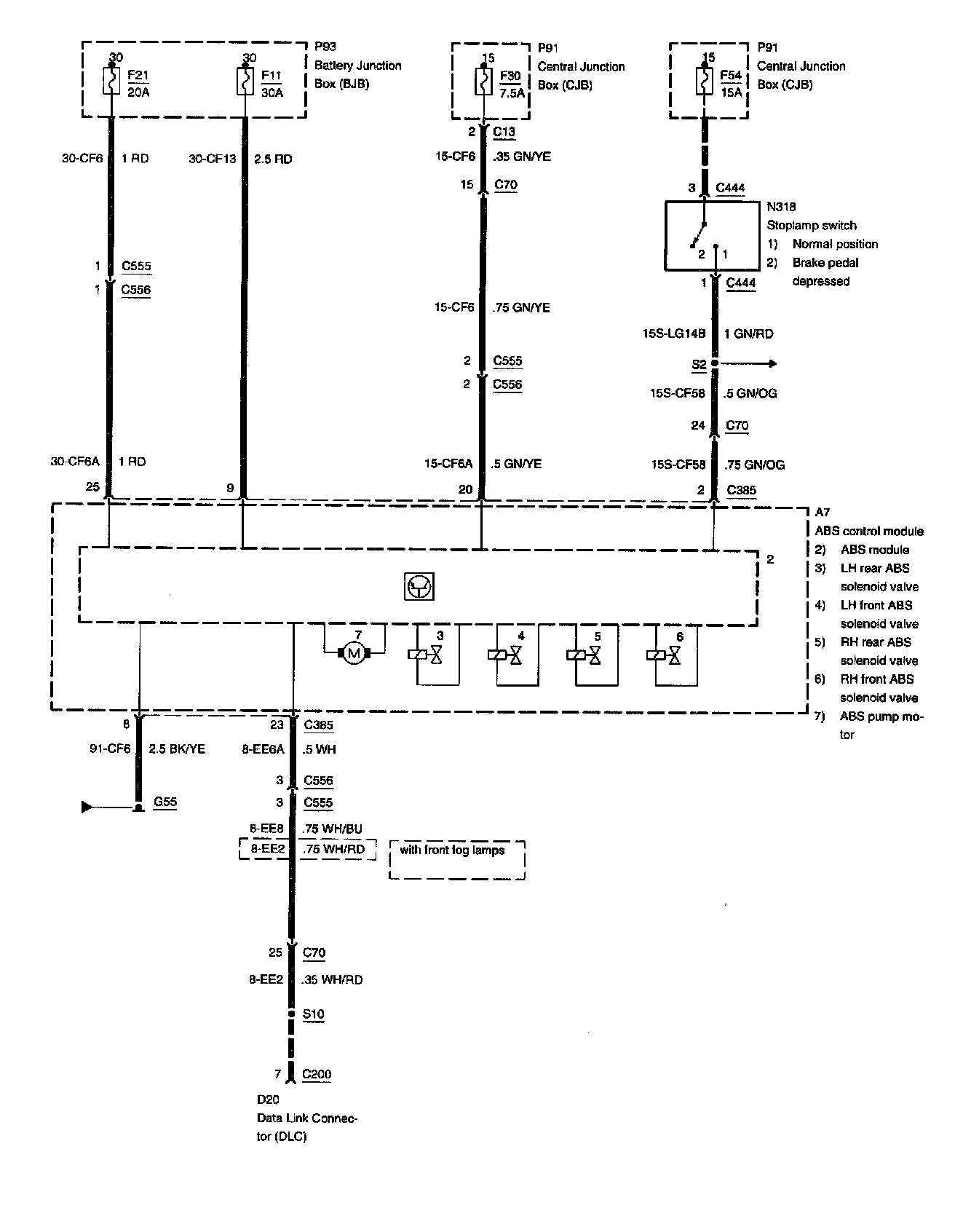

Diagram 206-09A-00-1:
Diagram 206-09A-00-2:
Diagram 206-09A-00-3:
