Heater Circuits







DETAILED DIAGRAMS

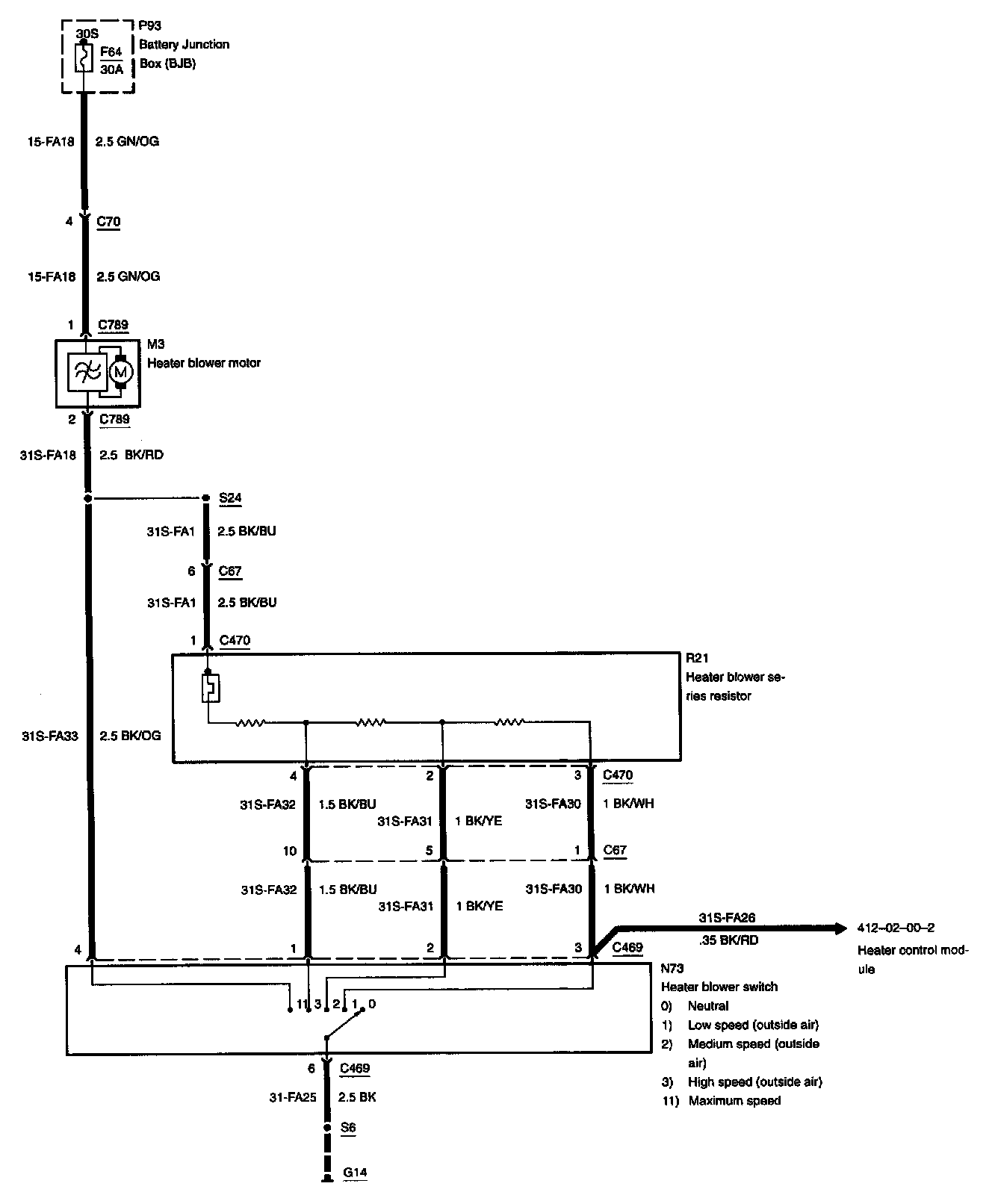

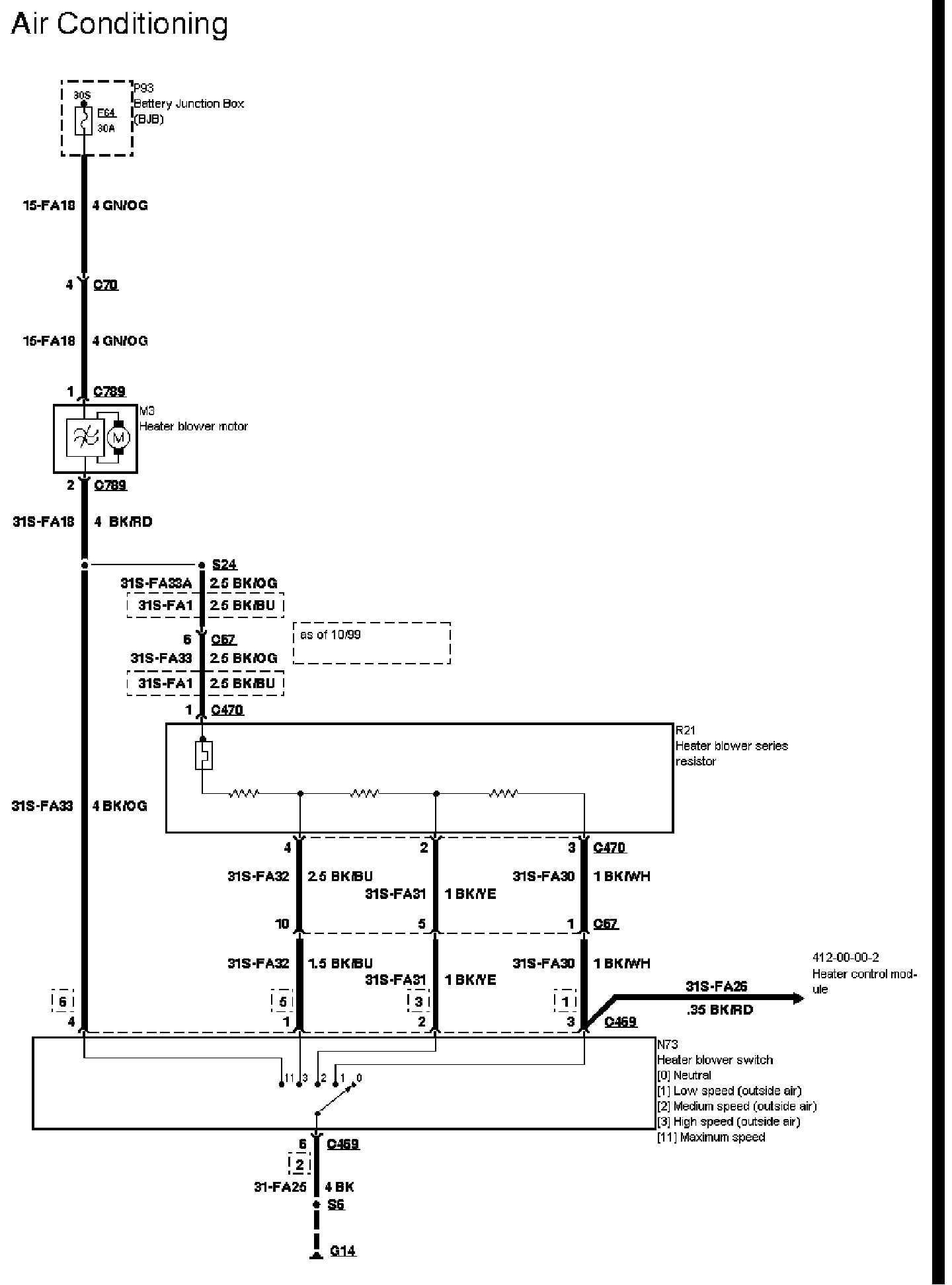

Diagram 412-02-00-1:

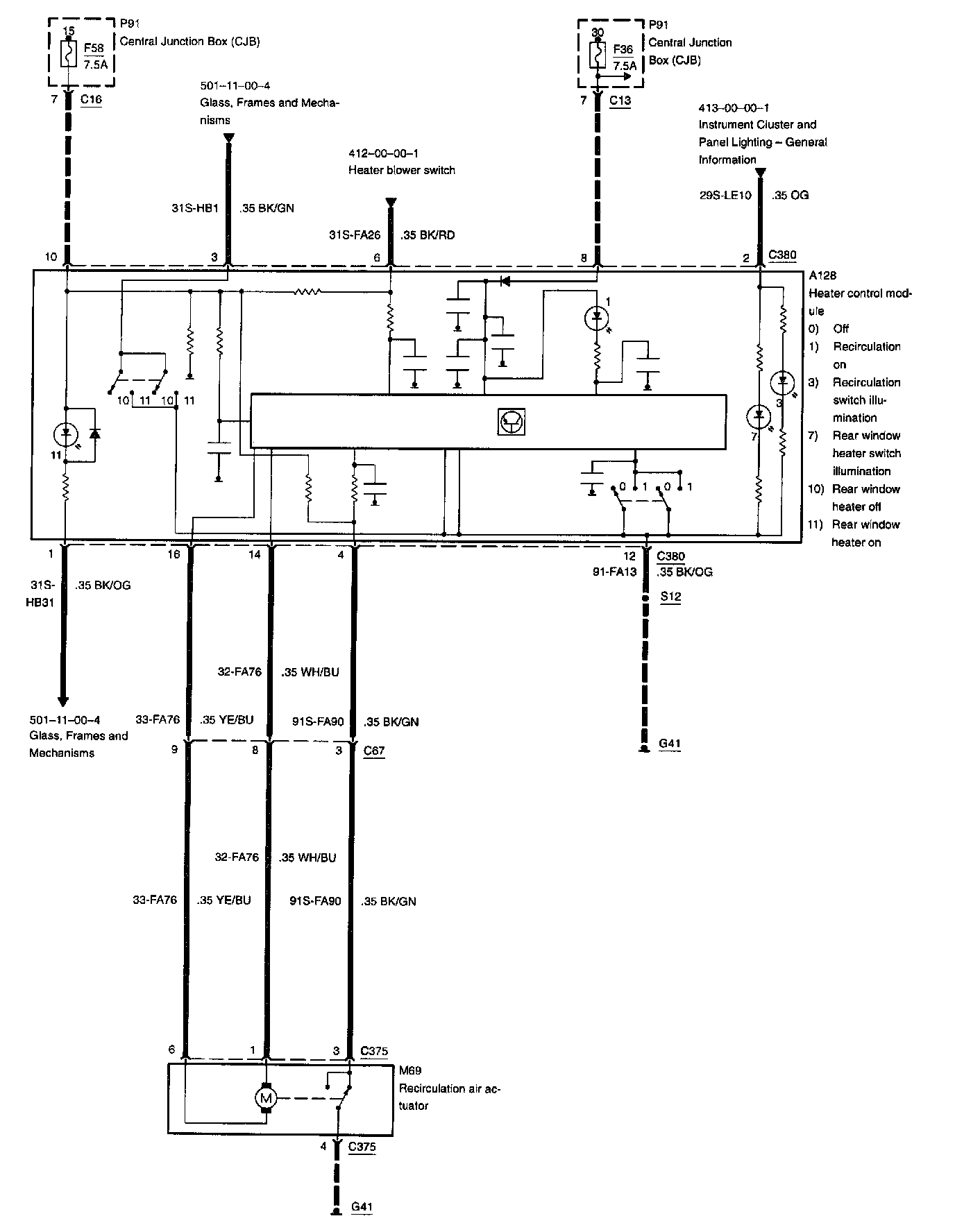

Diagram 412-02-00-2:






RELATED DIAGRAMS

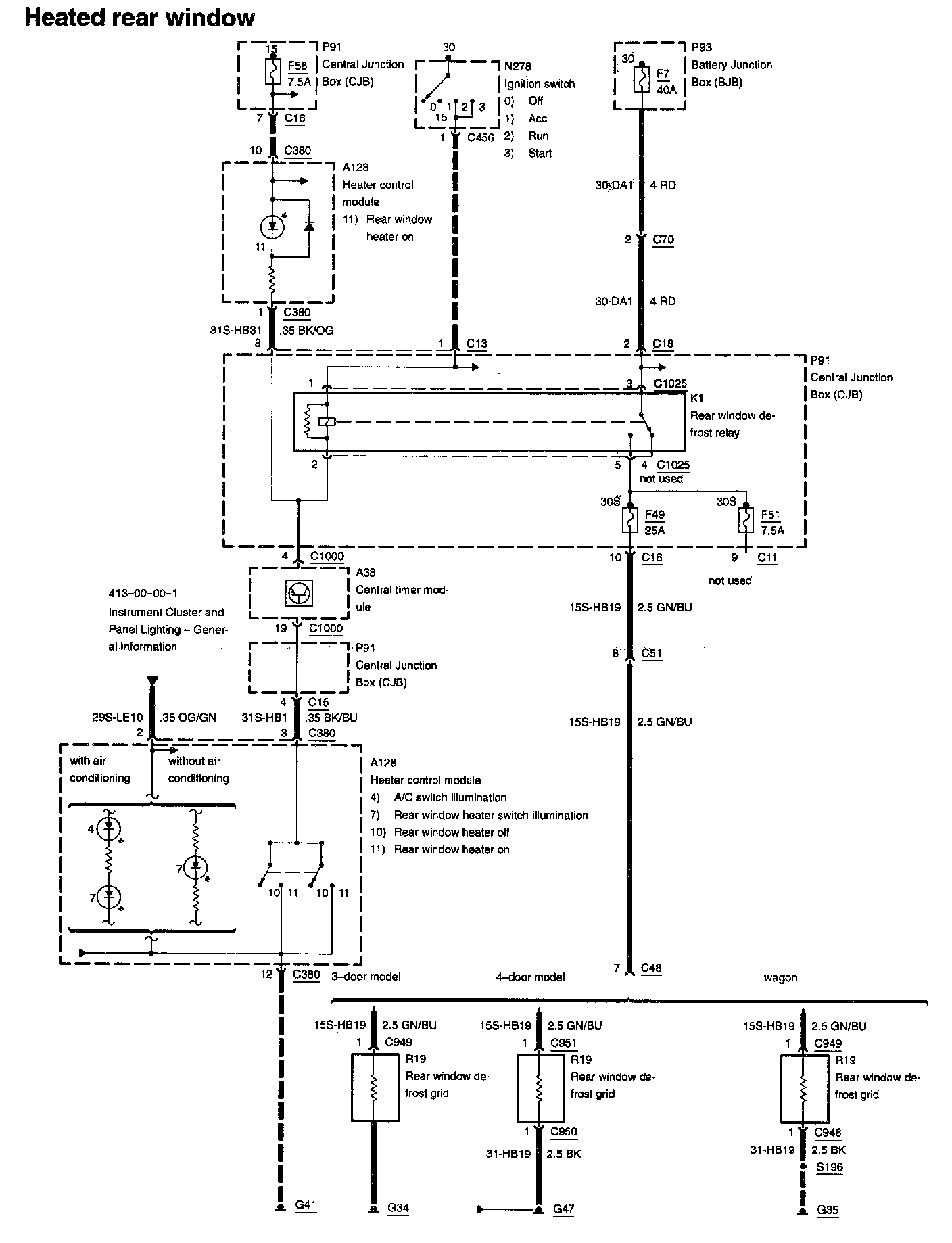

Diagram 501-11-00-4:

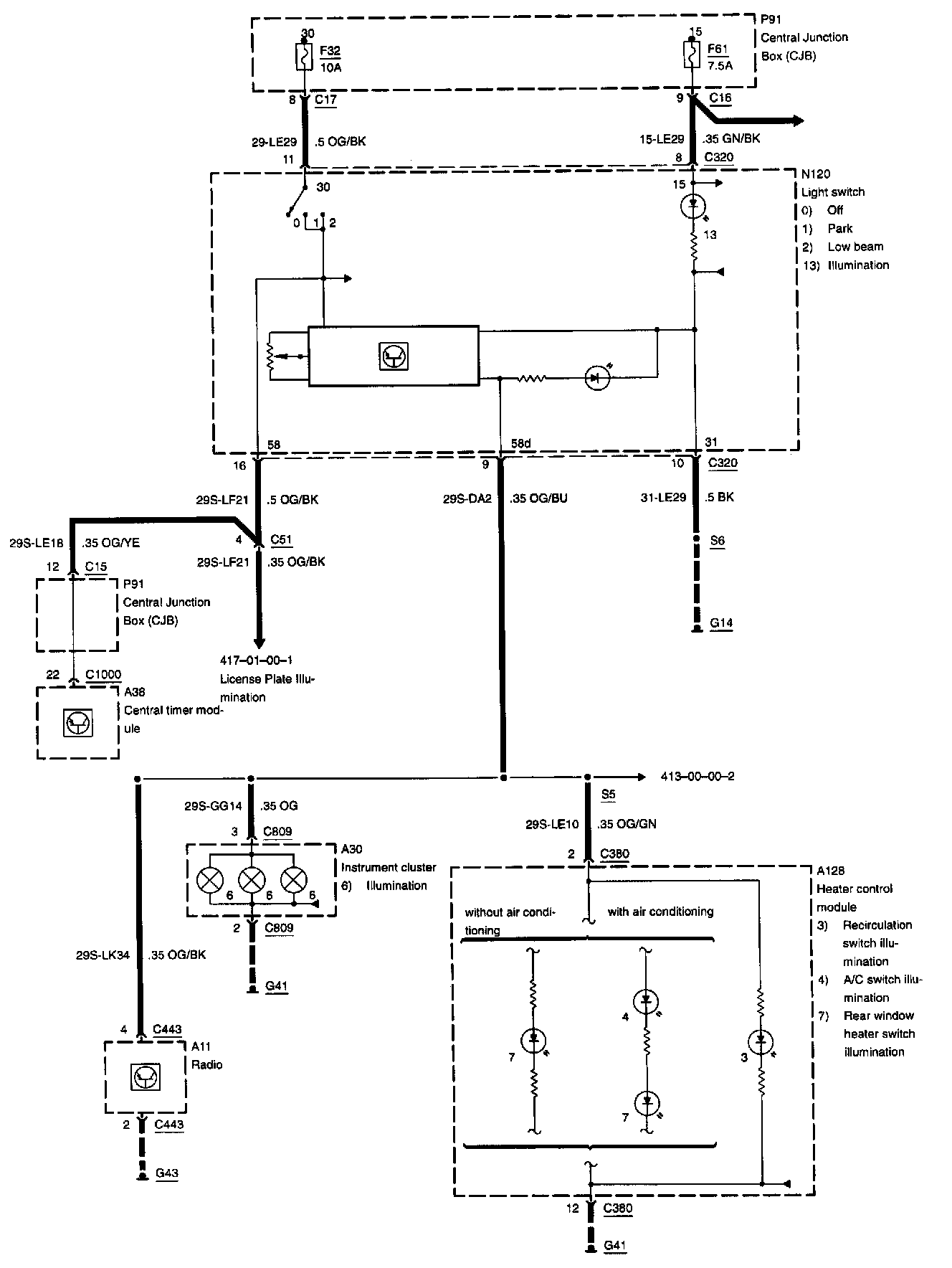

Diagram 413-00-00-1:
