Throttle Body: Service and Repair

REMOVAL

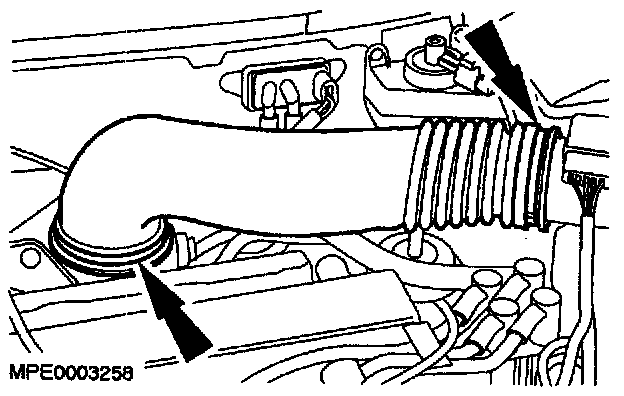

1. Remove the air cleaner outlet tube.

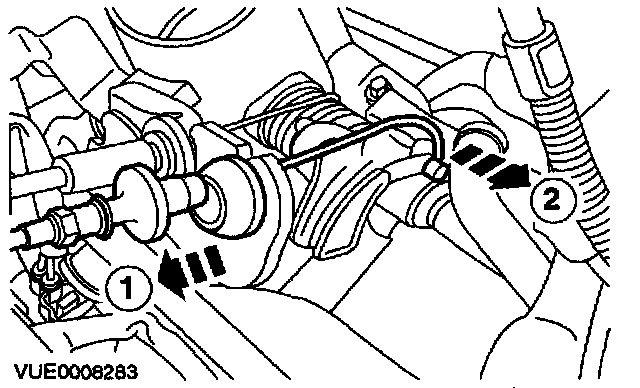

2. Detach the accelerator cable.
1. Detach the accelerator cable from the bracket.
2. Detach the accelerator cable







3. Disconnect the Throttle Position (TP) sensor electrical connector.

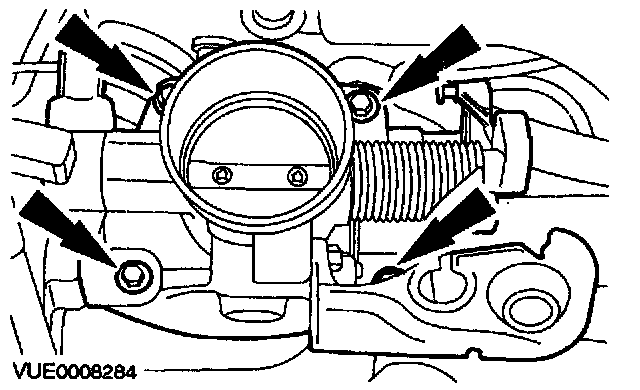

4. Remove the throttle body.

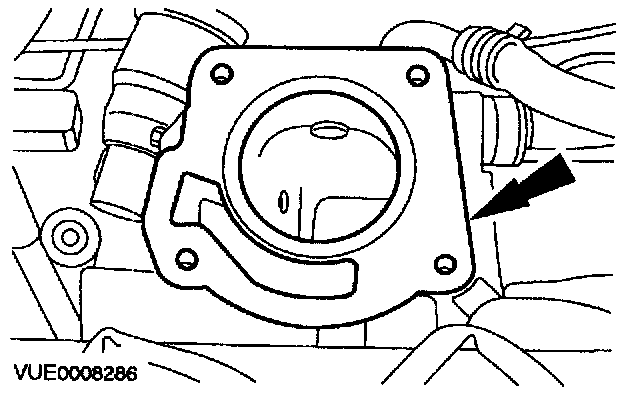

5. Remove and discard the throttle body gasket.

INSTALLATION

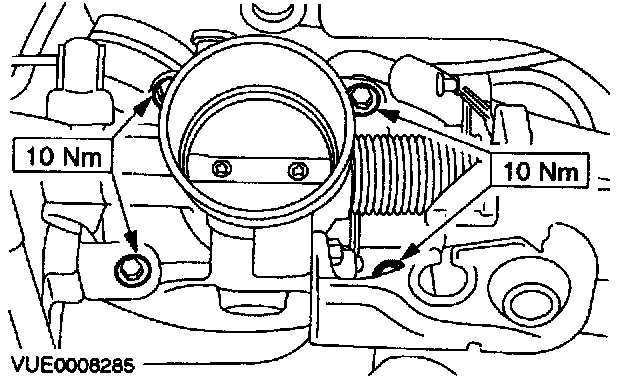

1. To install, reverse the removal procedure.
