Procedures

REMOVAL
1. Remove the upper quarter panels.

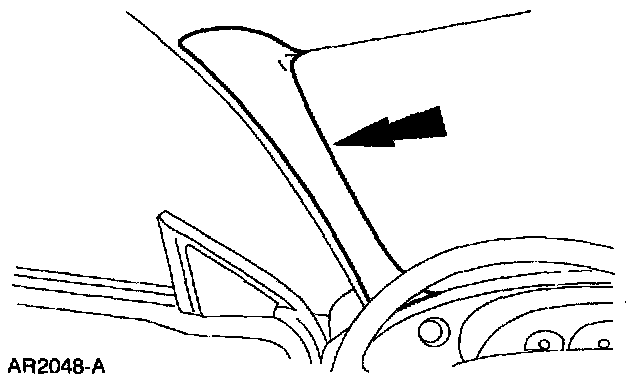

2. Remove the windshield side garnish mouldings.

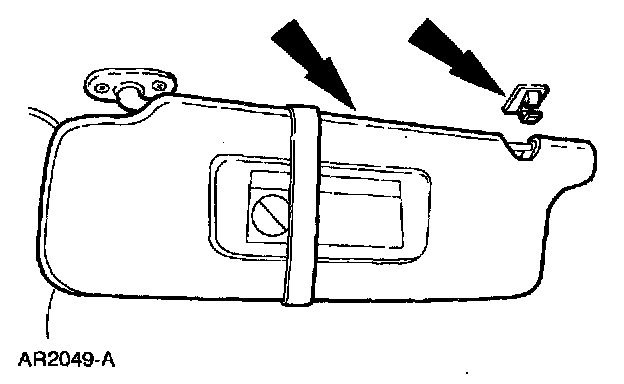

3. Remove the screws and the sun visors.
- Disconnect the electrical connectors.

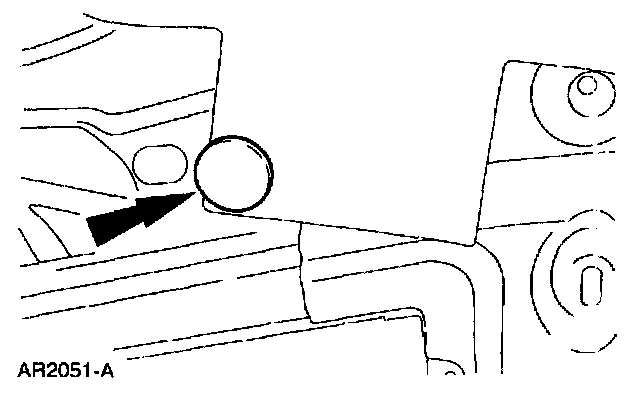

4. Remove the pin-type retainer from each side.

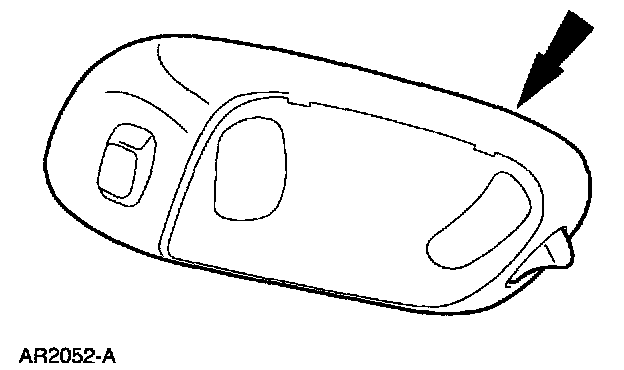

5. Remove the interior lamp cover.

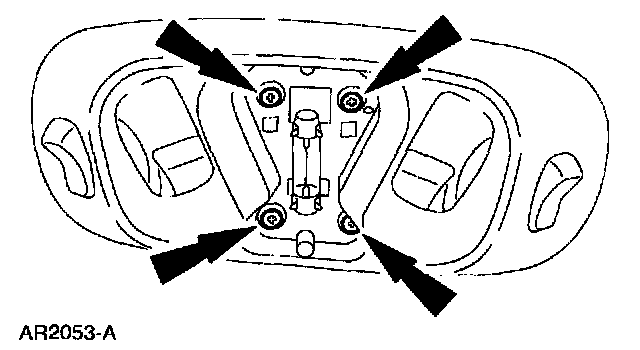

6. Remove the screws and the interior lamp.
- Disconnect the electrical connector.
7. Remove the headliner.

INSTALLATION
1. Position the headliner in the vehicle and apply adhesive.

CAUTION: Folding the headliner will result in damage to the headliner.

2. Apply adhesive to the headliner using the existing pattern.







3. Position the interior lamp and install the screws.
- Connect the electrical connector.







4. Install the interior lamp cover.

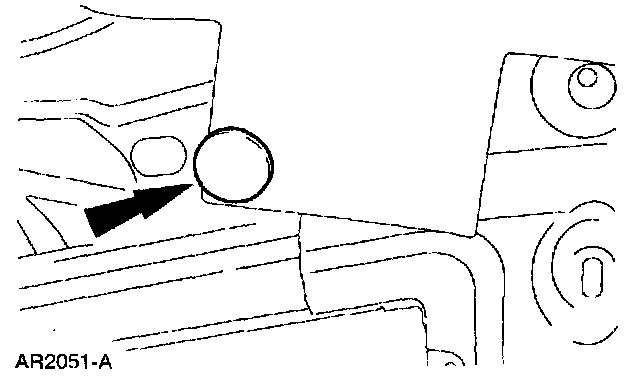

5. Install the pin-type retainers on each side.







6. Position the sun visors and install the screws.
- Connect the electrical connectors.







7. Install the windshield side garnish mouldings.
8. Install the upper quarter trim panels.
