Vacuum Reservoir HVAC: Service and Repair

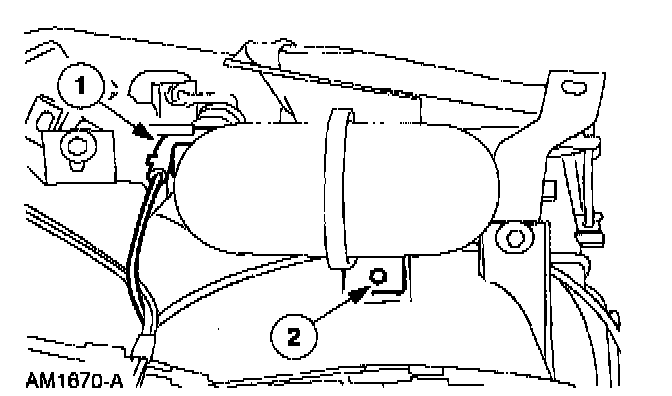

REMOVAL
1. Access the Vacuum reservoir through the glove compartment.







2. Remove the reservoir.
1. Disconnect the vacuum connector.
2. Remove the Screw.

INSTALLATION
1. To install, reverse the removal procedure.
