Band and Clutch Application Chart

Band and Clutch Application Chart

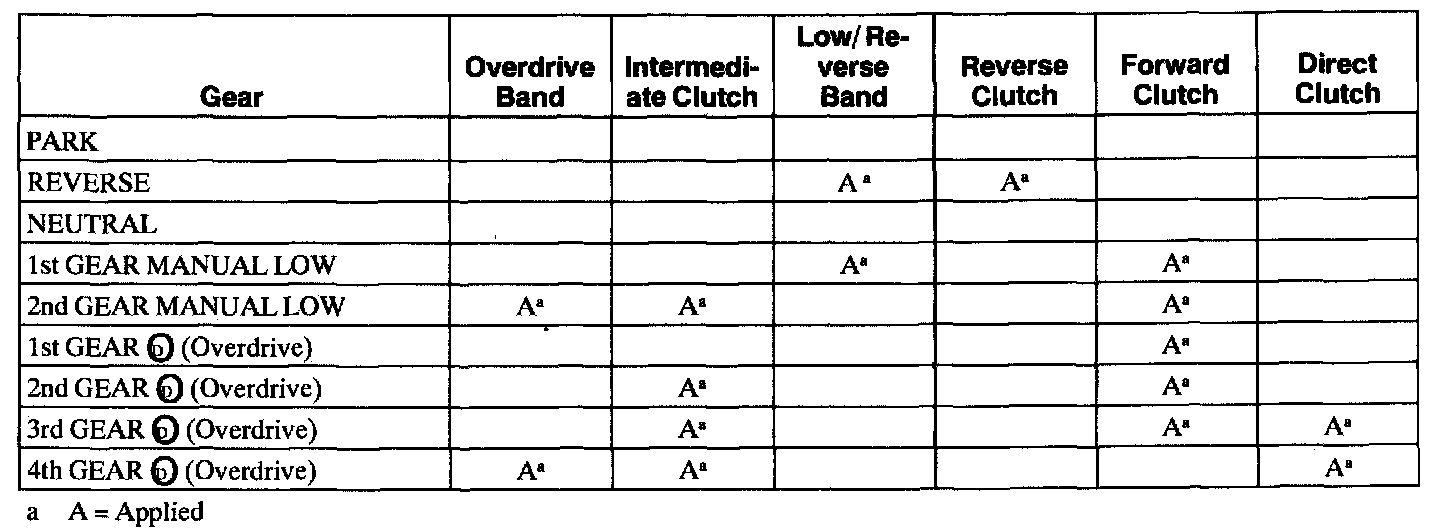

Part 1 of 3

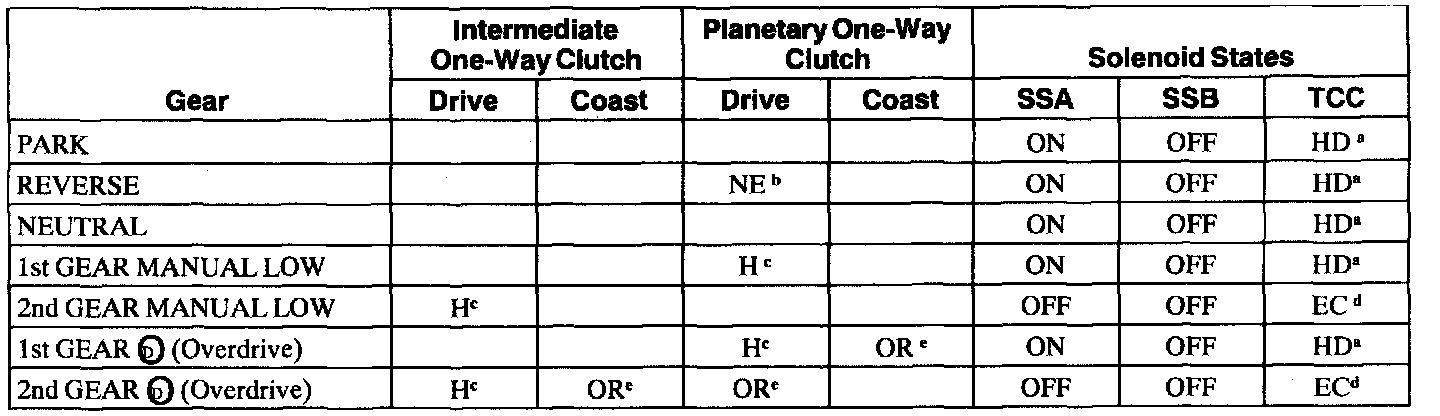

Part 2 of 3

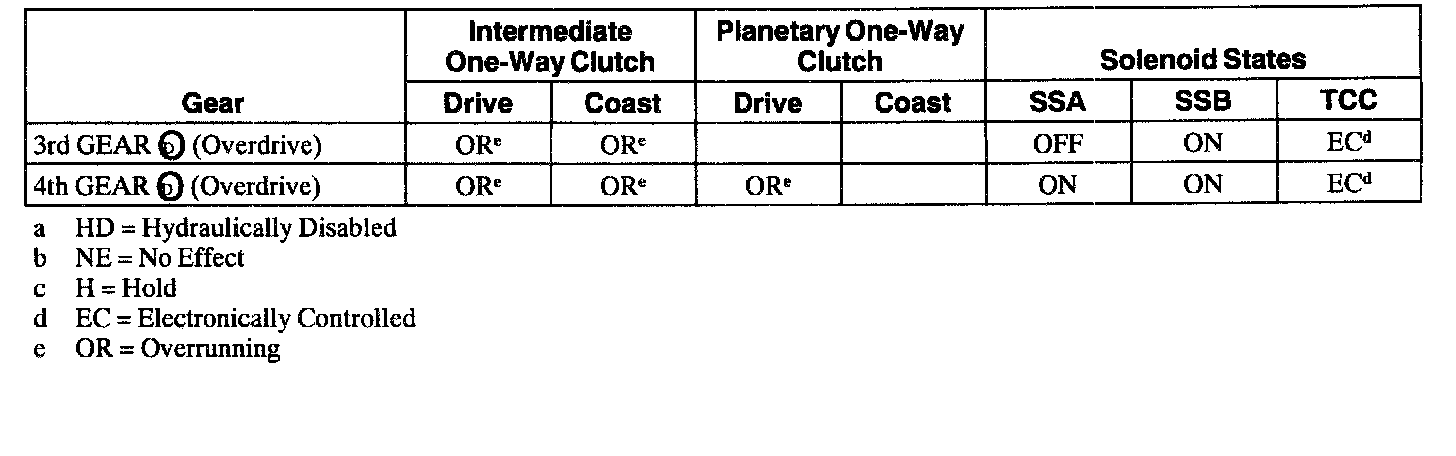

Part 3 of 3
