Compressor Fitting HVAC: Service and Repair

REMOVAL
1. Perform the Refrigerant Discharging and Recovery Procedure.

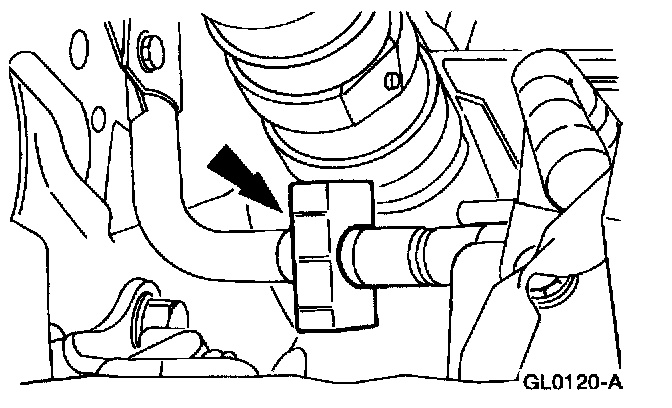

2. Remove the fan shroud.

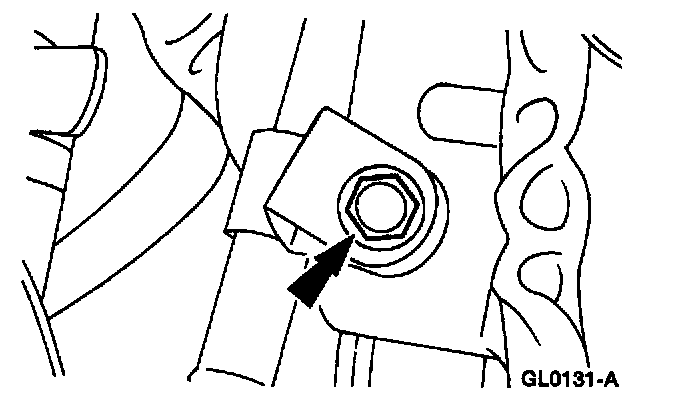

3. Remove the A/C manifold and tube support Clip retaining bolt.







4. Disconnect the A/C manifold and tube spring lock coupling.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

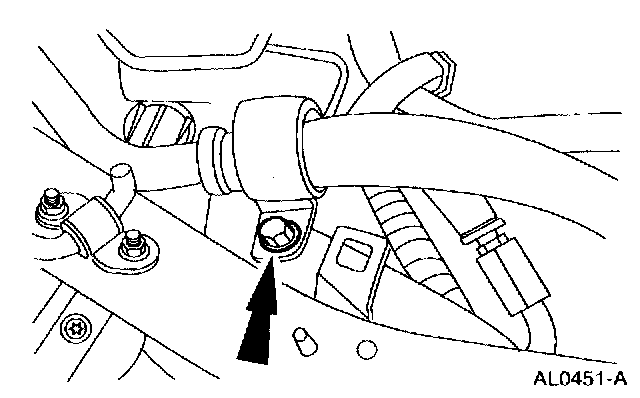

5. Remove the bolt.

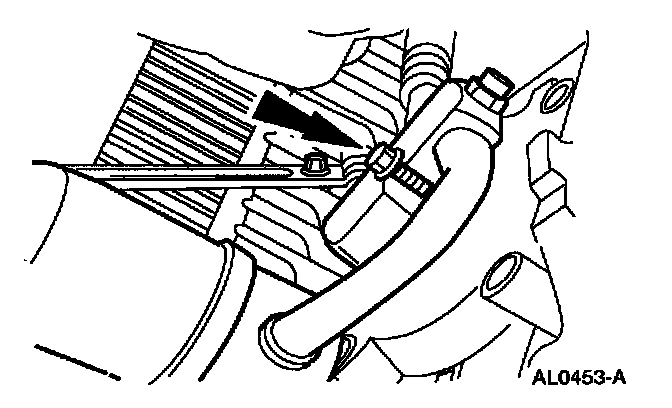

6. Disconnect the A/C manifold and tube spring lock coupling.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

7. Raise and support the vehicle.

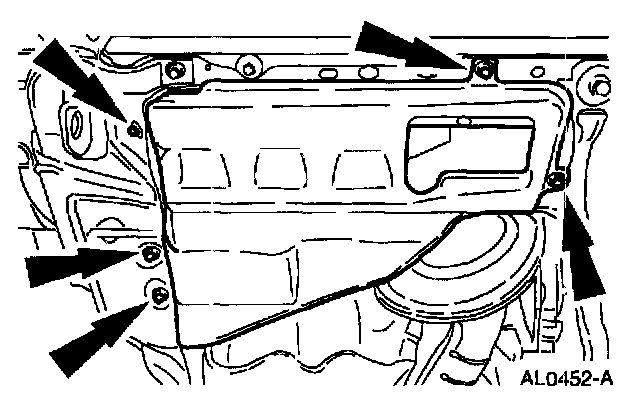

8. Remove the screws and the radiator air deflector.

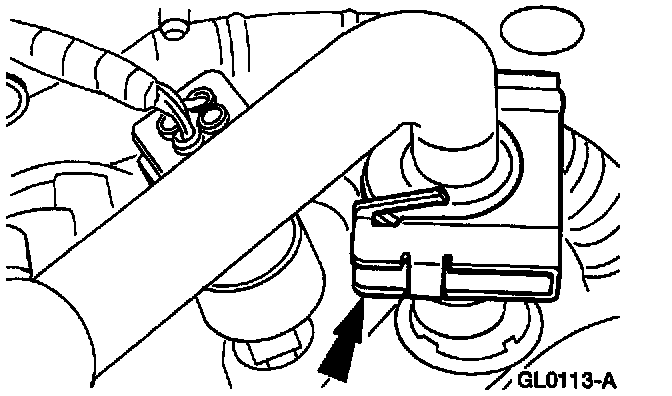

9. Detach the A/C manifold and tube from the A/C manifold and tube support clip.







10. Loosen the A/C manifold and tube retaining bolt and remove the A/C manifold and tube.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

INSTALLATION
1. To install, reverse the removal procedure.
- Lubricate the O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
