Windows: Locations

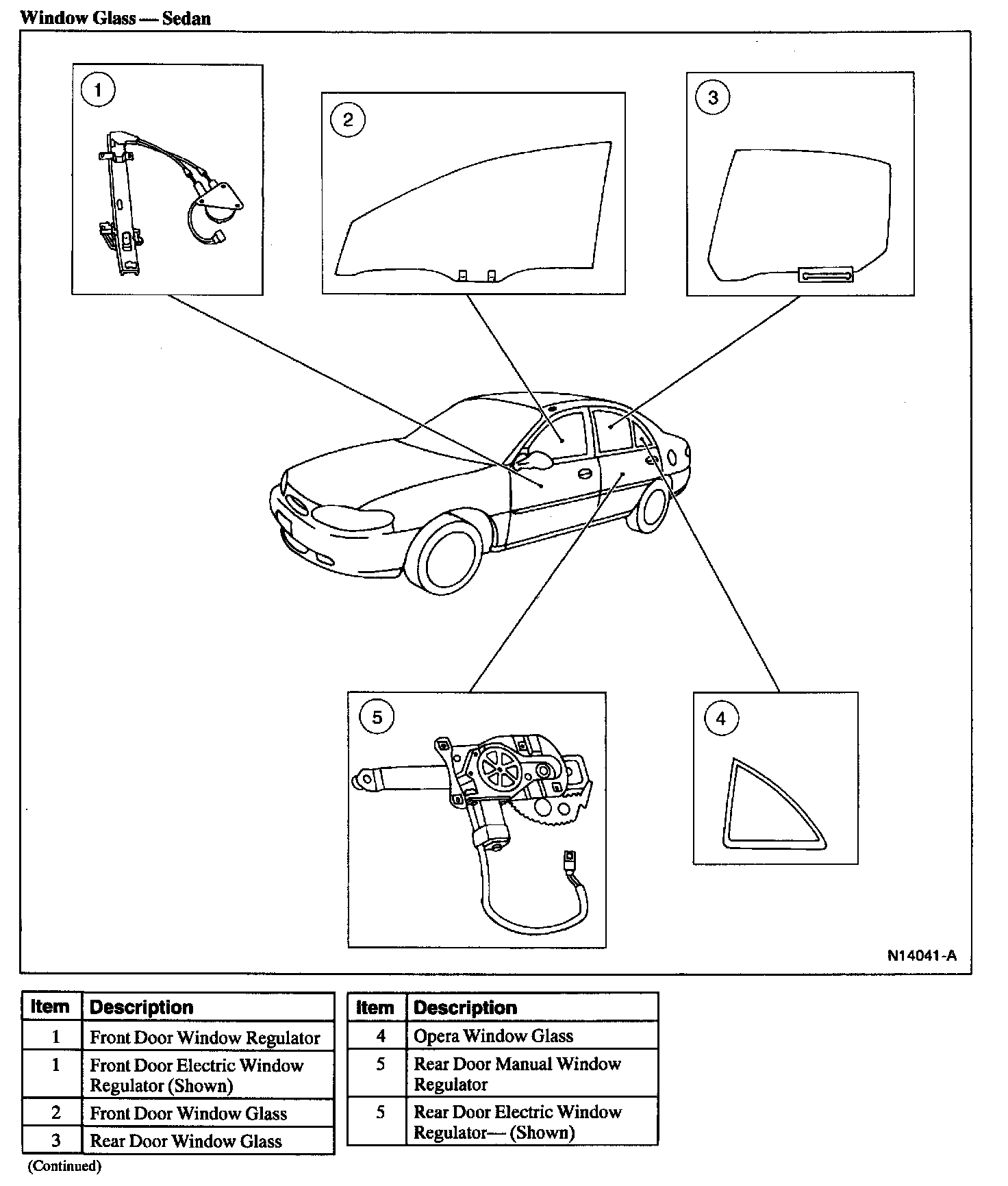

Window Glass - Sedan:

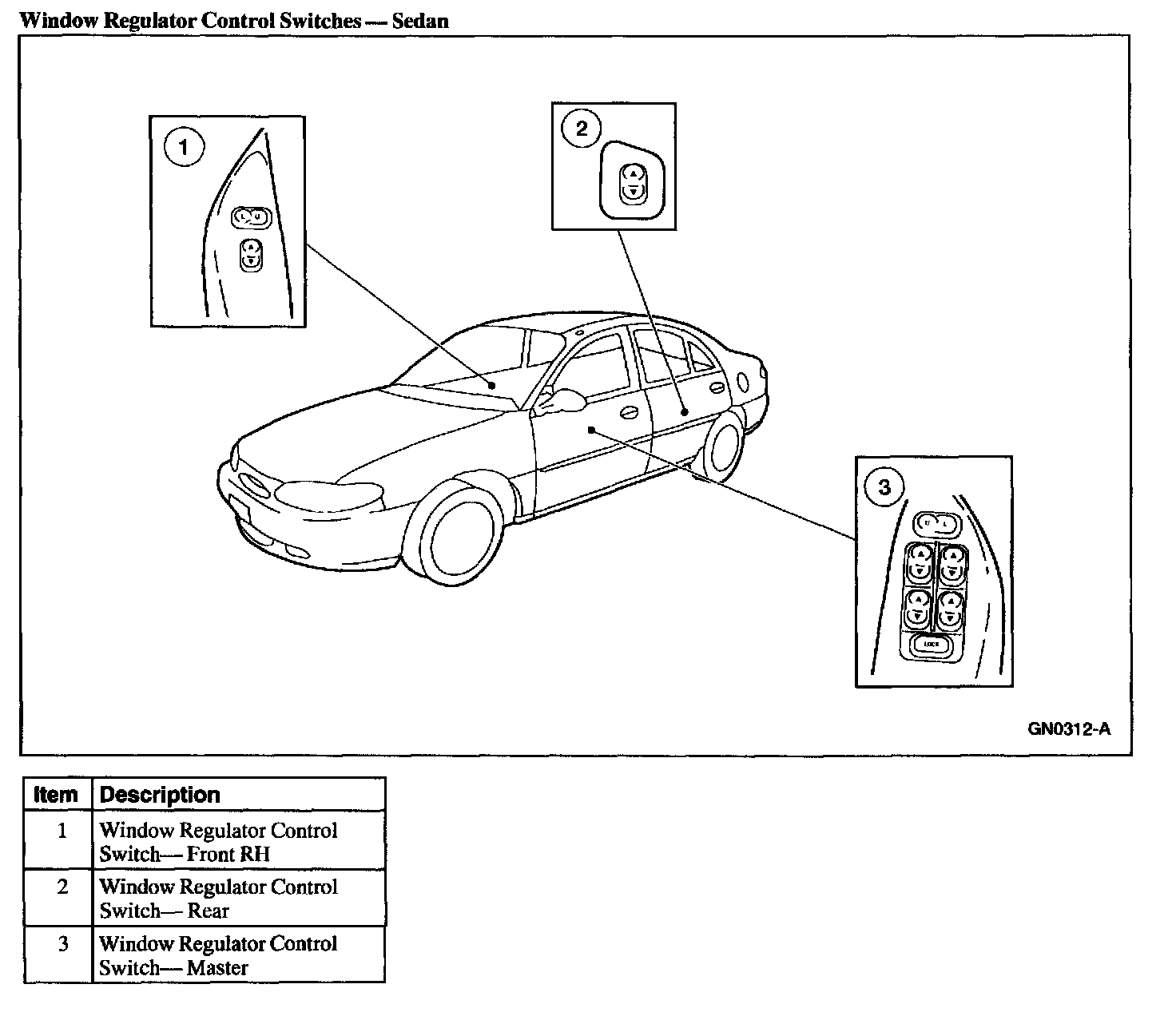

Window Regulator Control Switches - Sedan:






Heated Back Window Defrosting System, Part 1:






Part 2:
