Leak Detection Valve: Service and Repair

REMOVAL
1. Remove the Evaporative Emission (EVAP) canister.

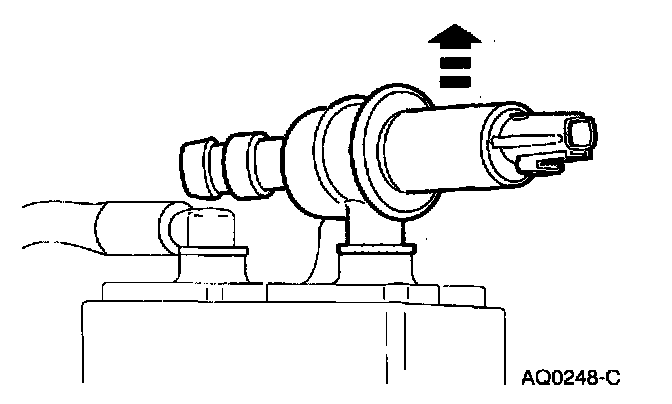

2. Remove the canister vent solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out the evaporative emission system leak test. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle

NOTE: Lubricate the O-ring seal with MERPOL(R) O-Ring Seal Lubricant or equivalent meeting Ford specification ESE-M99B144B.
