Fuel Delivery and Air Induction: Locations

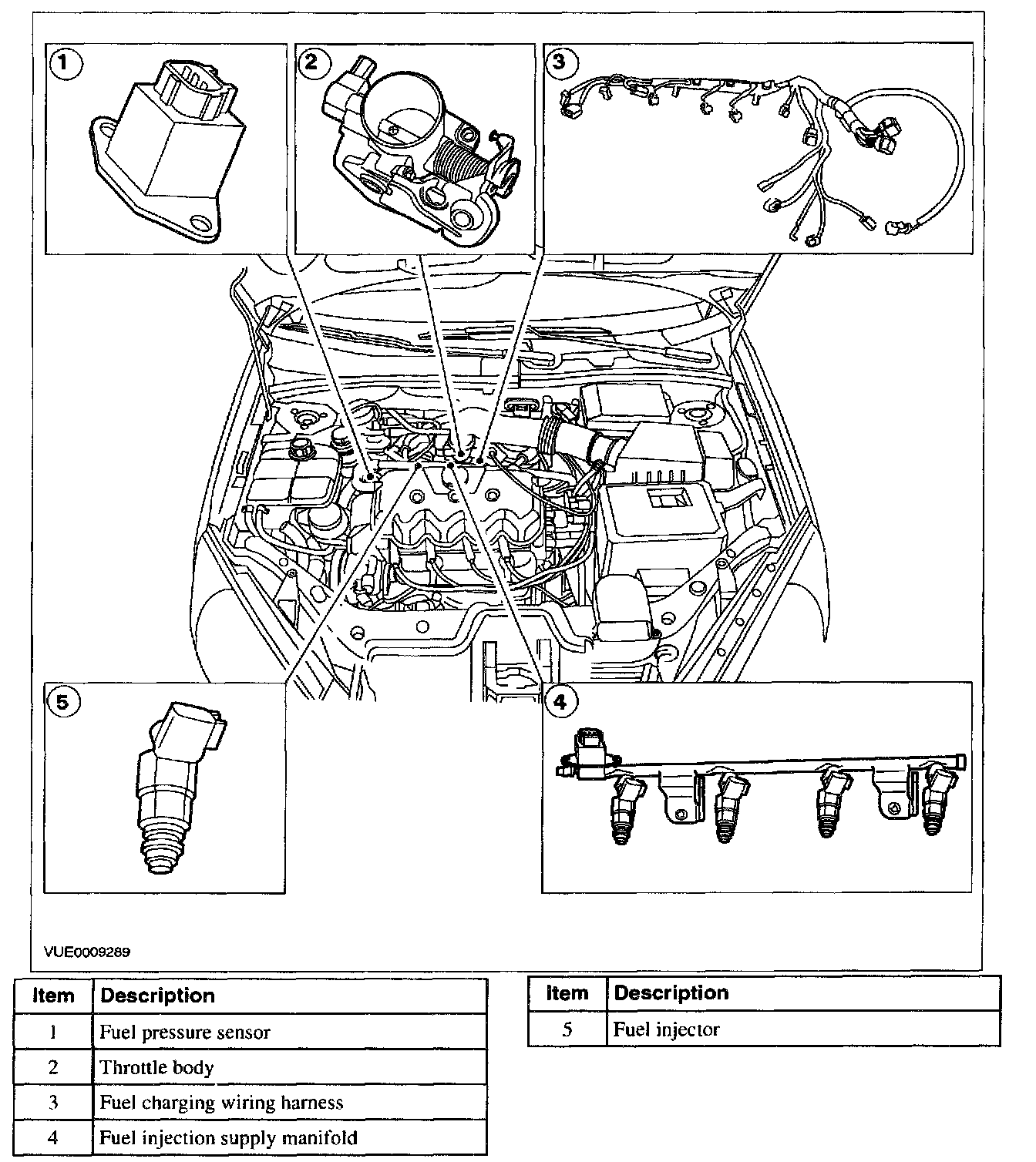

Fuel Charging And Controls:

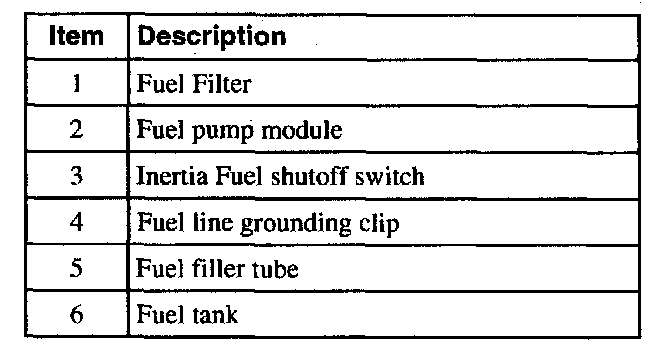

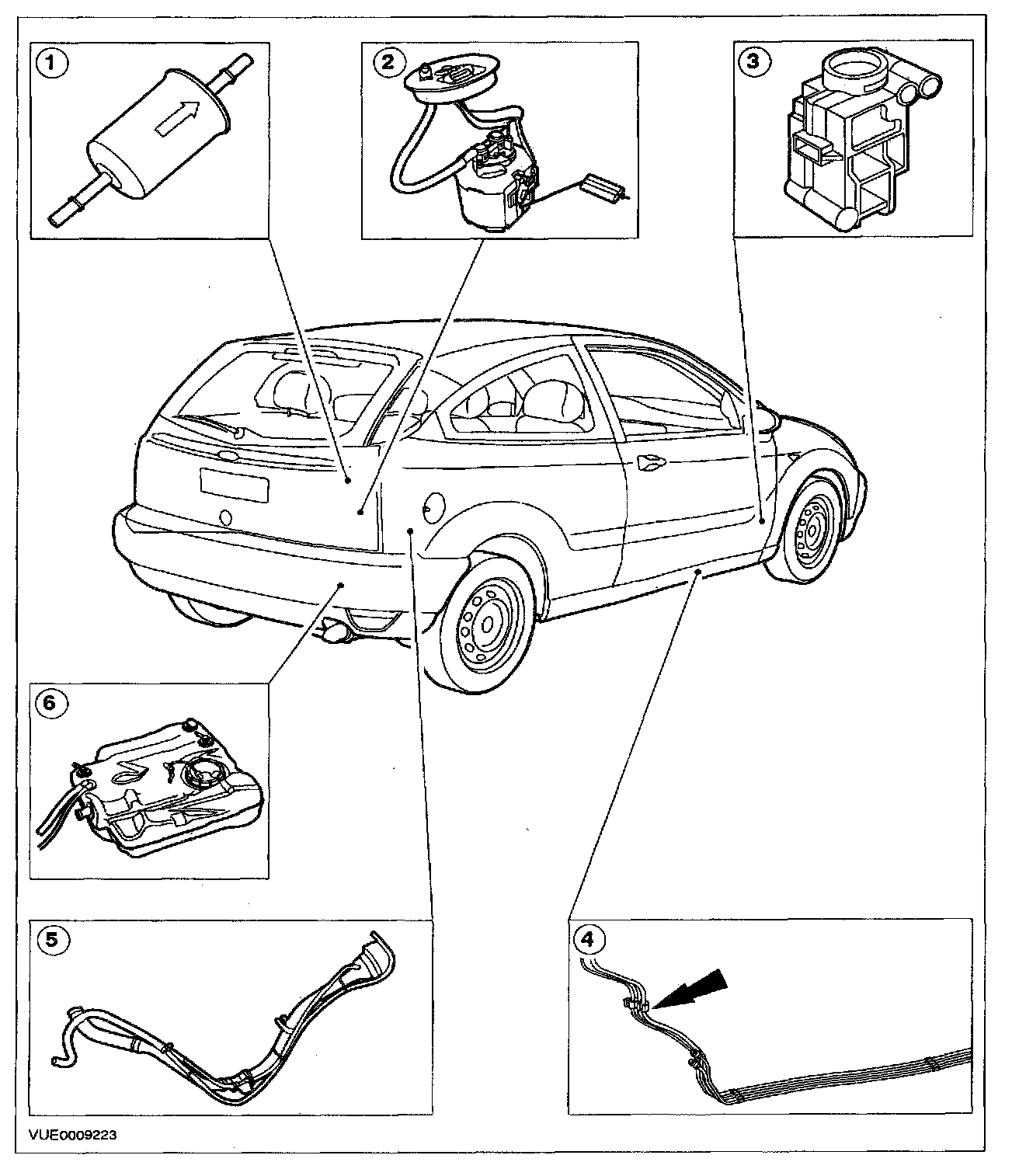

Fuel System - Part 1:






Fuel System - Part 2:
