Selector Plate

Selector Plate

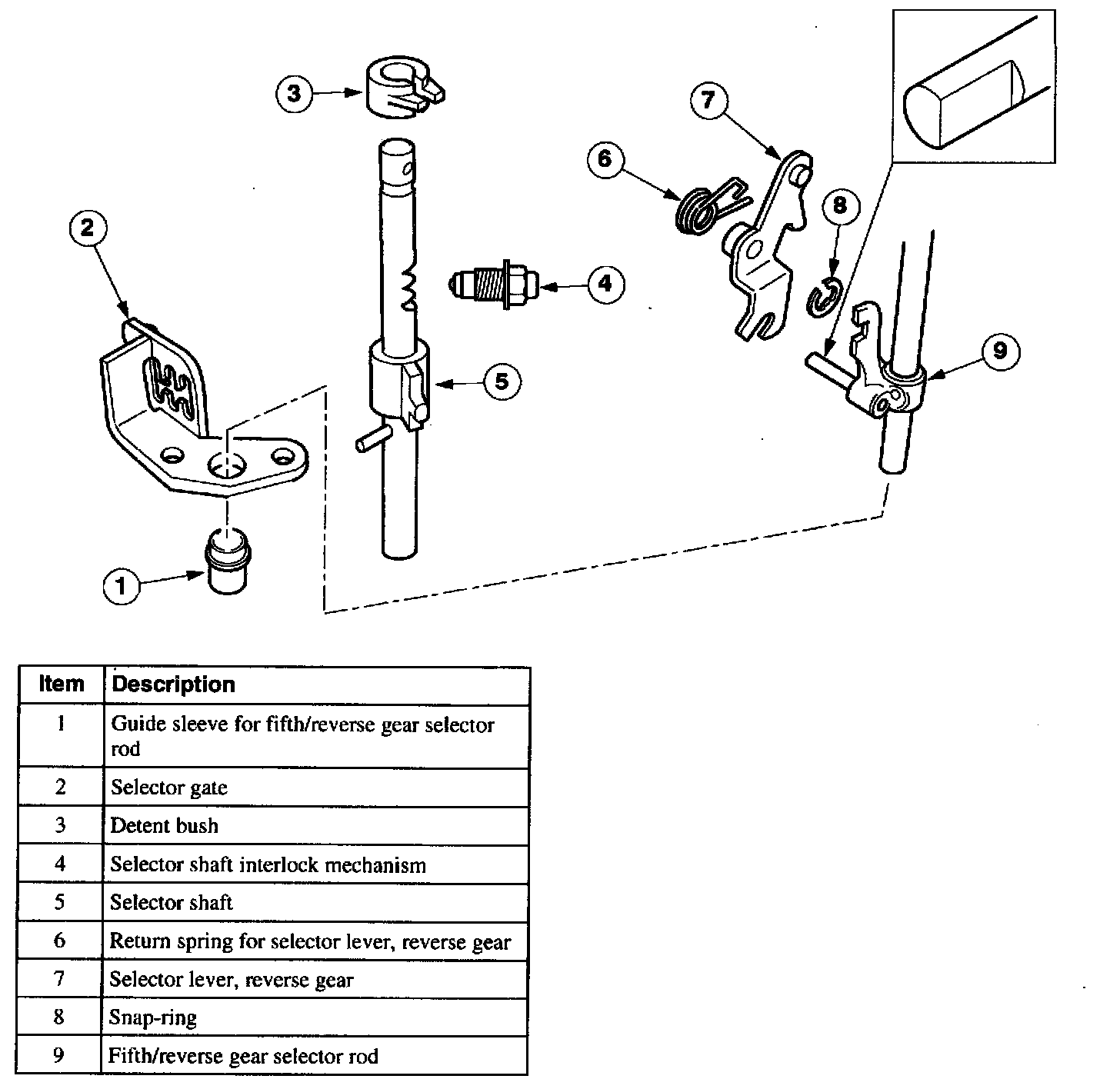

General view, selection mechanism

Disassembly

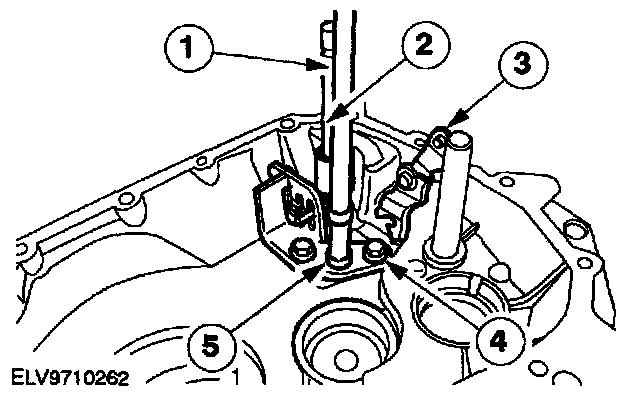

1. Remove the selector mechanism.
1. Fifth/reverse gear selector rod
2. Selector shaft
3. Selector lever, reverse gear
4. Selector gate
5. Fifth/reverse gear selector rod guide sleeve

Assembly





1. Install the selector mechanism.
1. Selector shaft
2. Selector lever, reverse gear
3. Fifth/reverse gear selector rod guide sleeve
4. Selector gate
5. Fifth/reverse gear selector rod
