Pilot Bearing: Service and Repair

Bearing

Special Tools:

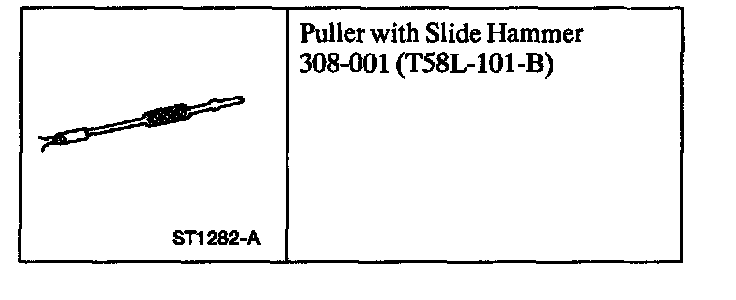

Special Tool(s)

1. Remove the clutch disc and the clutch pressure plate.

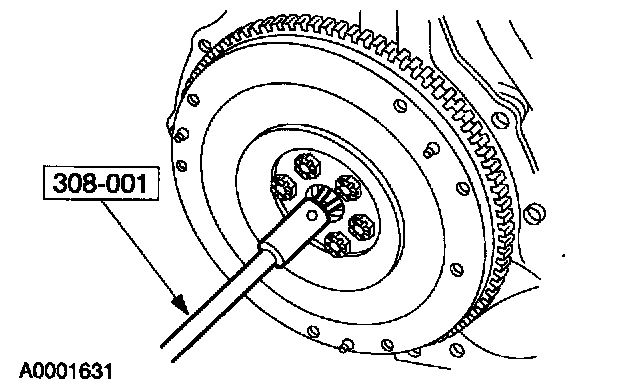

2. Using the special tool, remove the pilot bearing from the flywheel.

Installation

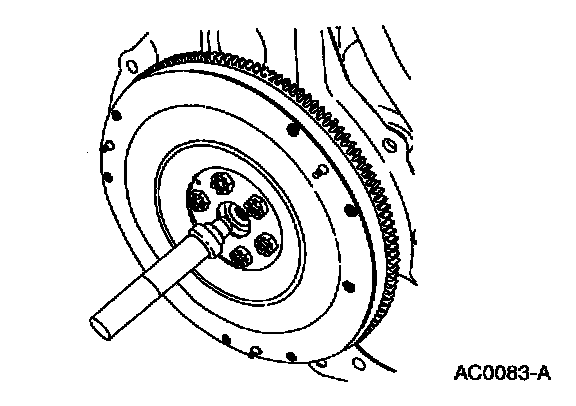

1. Insert the pilot bearing into the crankshaft.
2. Install the clutch disc and the clutch pressure plate.
