Service Port HVAC: Locations

Clutch Cycling Orifice Tube Type Refrigerant System, Part 1:






Clutch Cycling Orifice Tube Type Refrigerant System, Part 2:

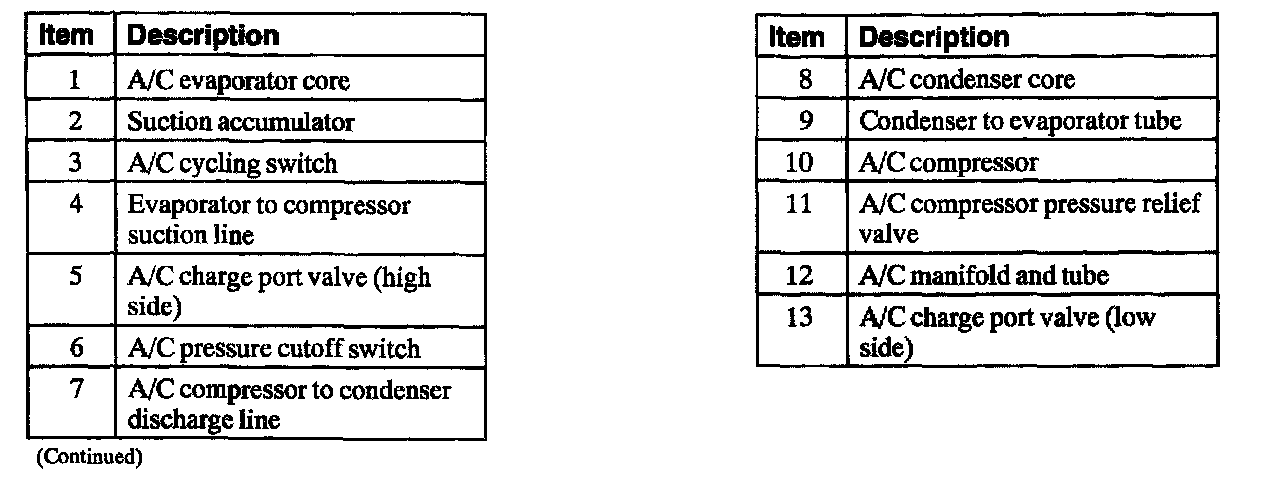

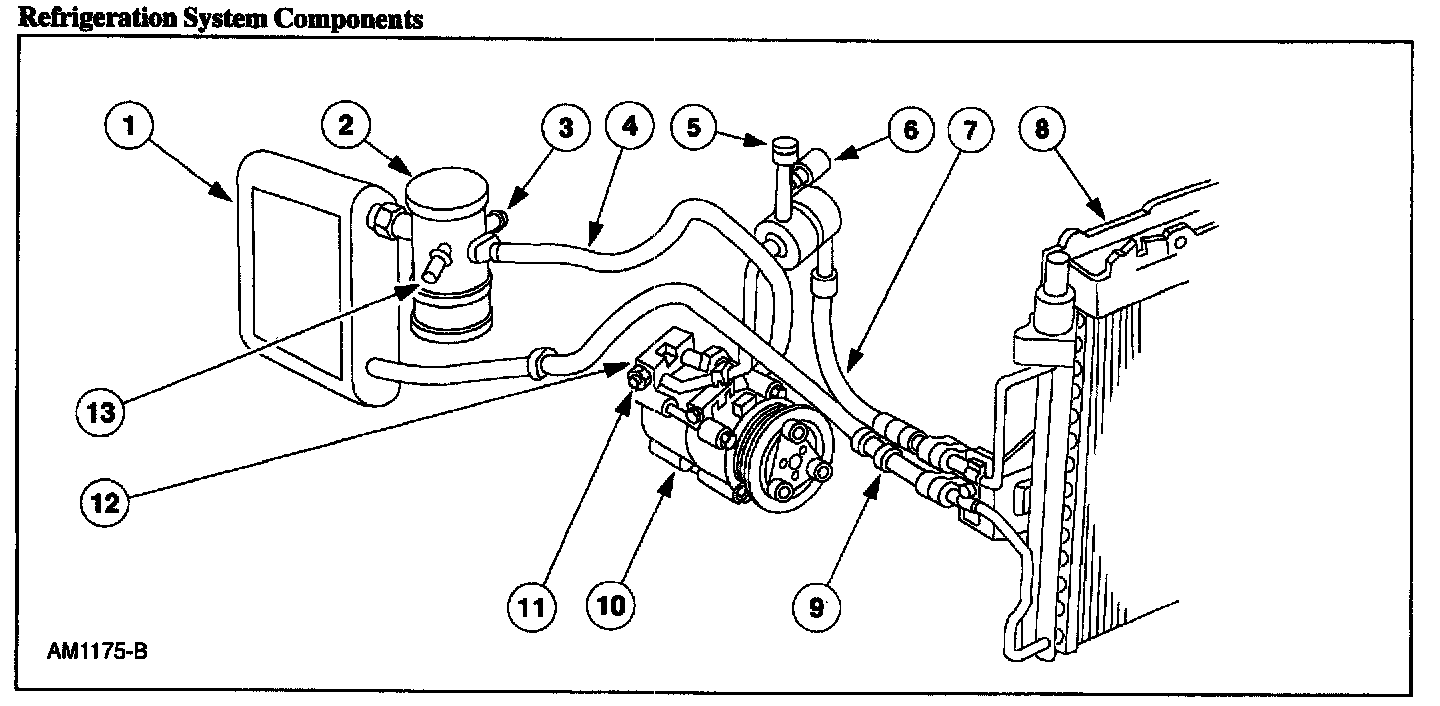

Refrigeration System Components, Part 1:






Refrigeration System Components, Part 2:
