Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
Escort ZX2 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B
Test B
PINPOINT TEST B: BRAKE LOCKUP DURING LIGHT BRAKE PEDAL FORCE

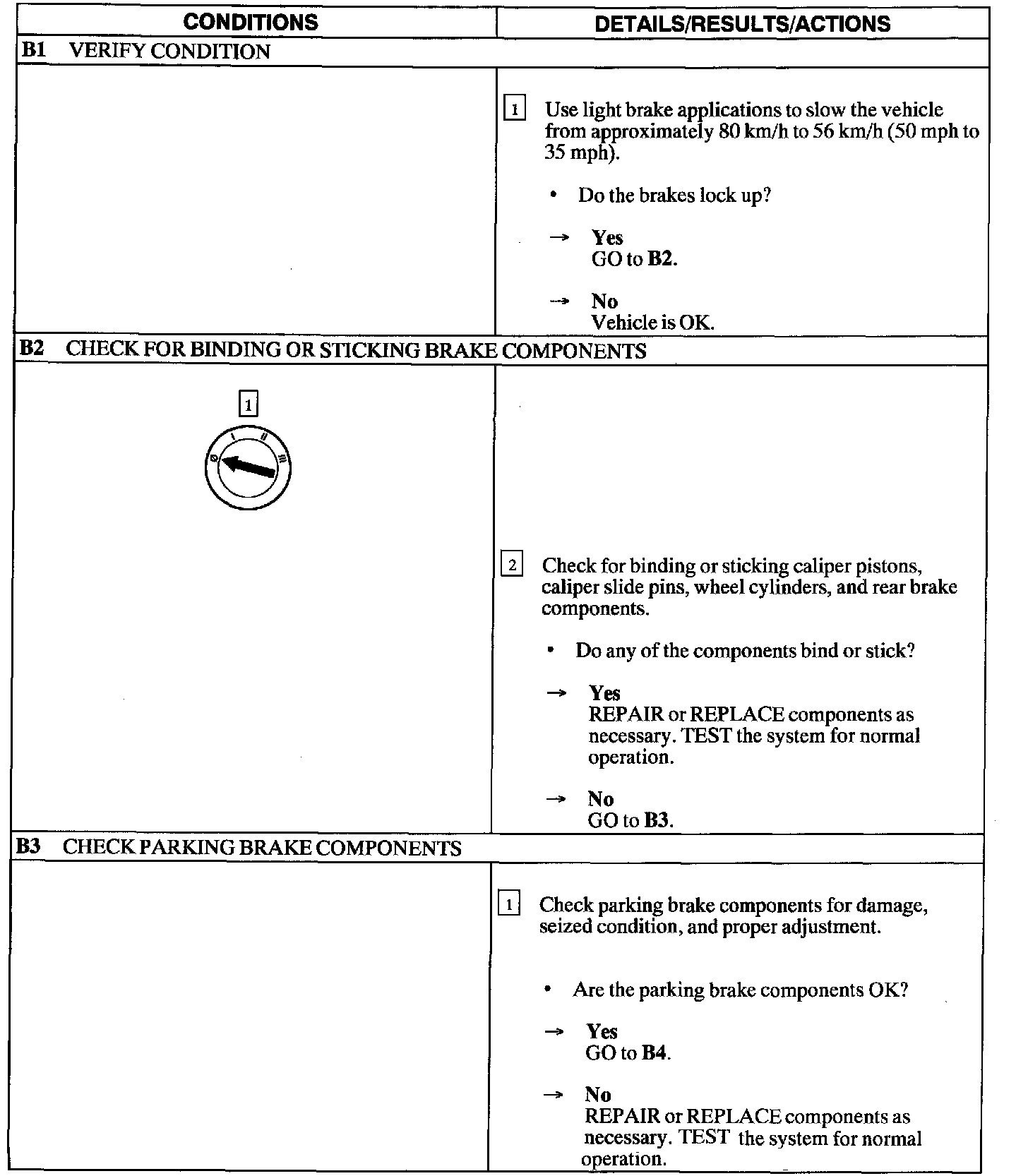

Test B1-B3:

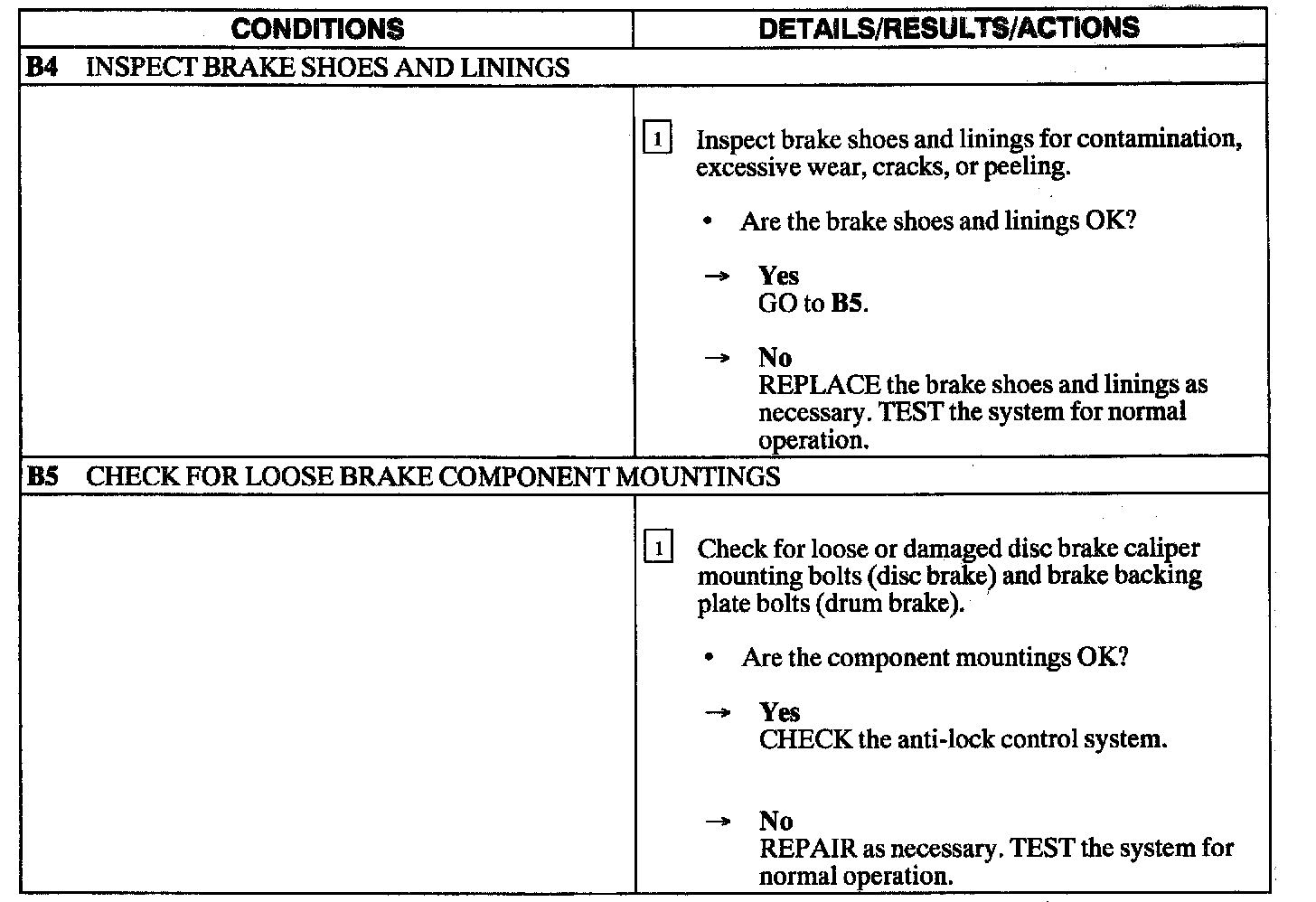

Test B4-B5:
