Pressure Plate

Pressure Plate Diaphragm Spring Fingers
Maximum Depth mm (in) 0.5(0.020)
Pressure Plate Surface
Maximum Clearance mm (in) 0.5(0.020)

Torque Specifications
Pressure Plate Bolts 16-32 Nm (12-24 ft. lbs.)

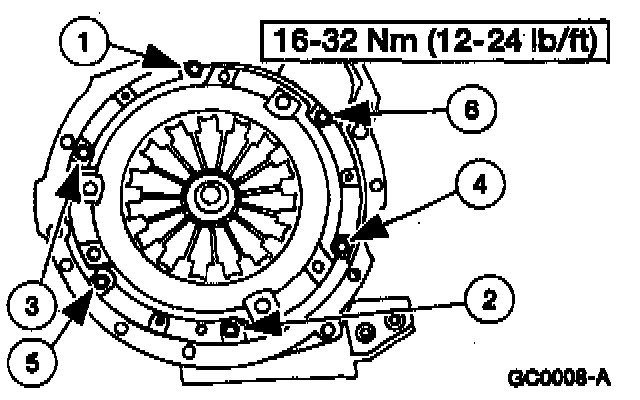

Pressure Plate Sequence

NOTE: If reusing clutch pressure plate and flywheel, align marks made during removal. Tighten them in sequence to specification
