Flywheel: Specifications

Flywheel Runout
Maximum Runout mm (in) 0.2 (0.008)
Clutch Disc Lining Thickness
Flywheel Side mm (in) 3.5(0.138)
Pressure Plate Side mm (in) 3.8(0.150)

Torque Specifications
Flywheel-To-Crankshaft Bolts 73-91 Nm (54-67 ft. lbs.)

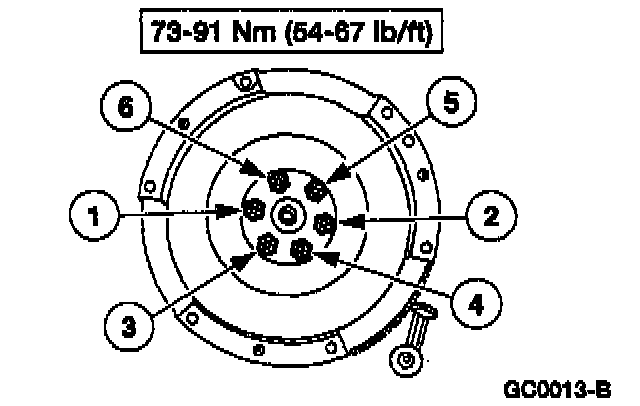

Flywheel Sequence to specification
