Seats
Seats
DETAILED DIAGRAMS

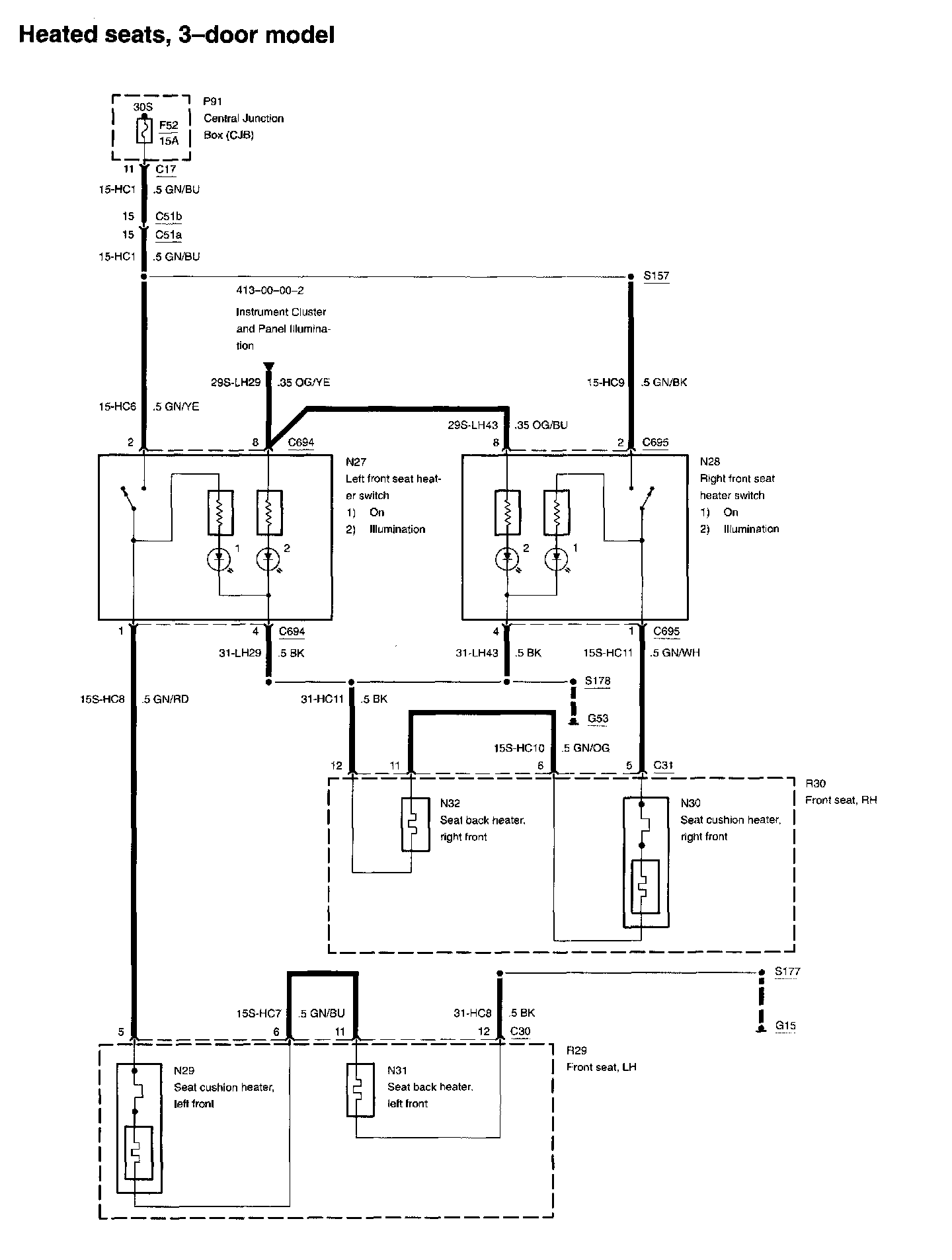

Diagram 501-10-00-1:
Diagram 501-10-00-2:
RELATED DIAGRAMS

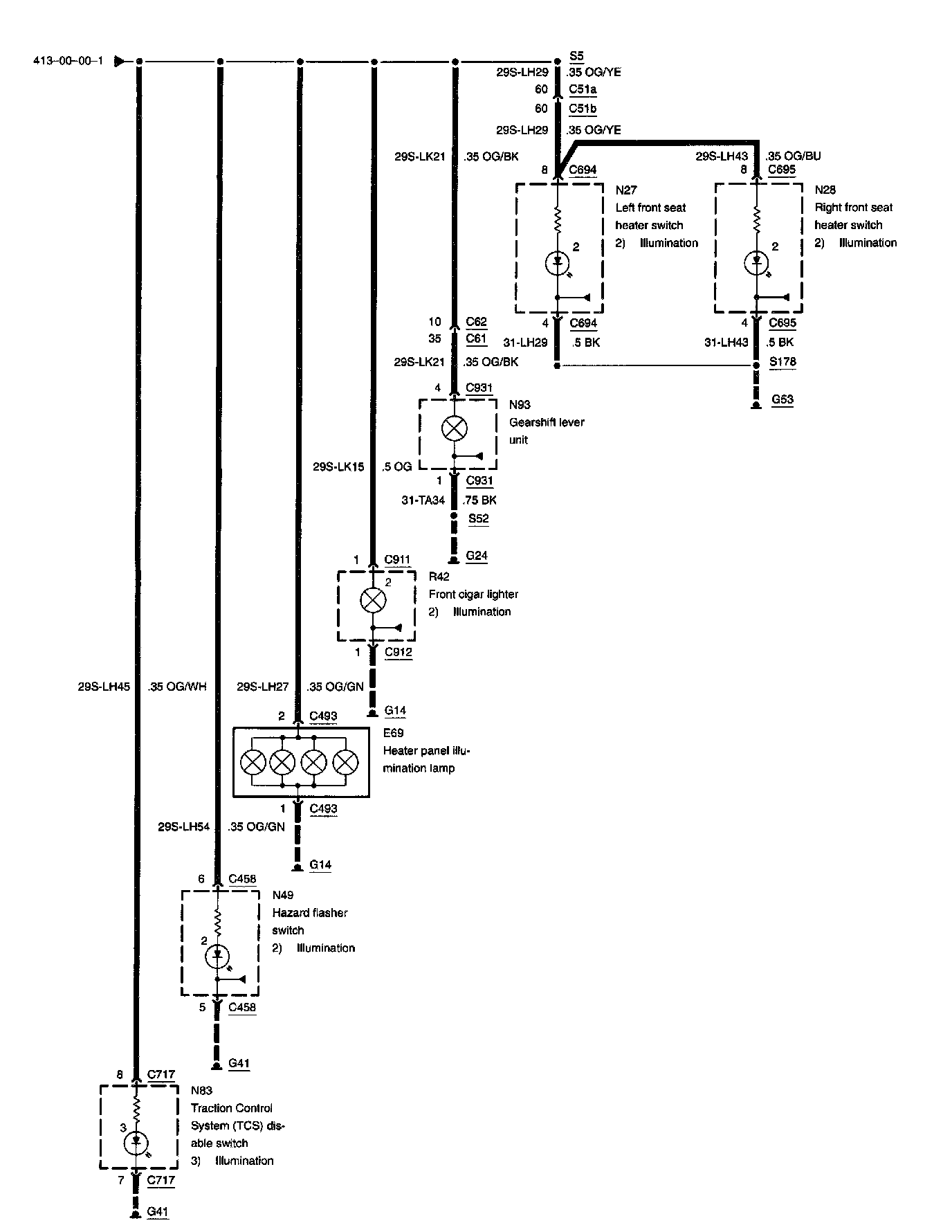

Diagram 412-00-00-2:
