Home >> Ford >> 2002 >> Focus ZX5 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> C10-C96 >> C15

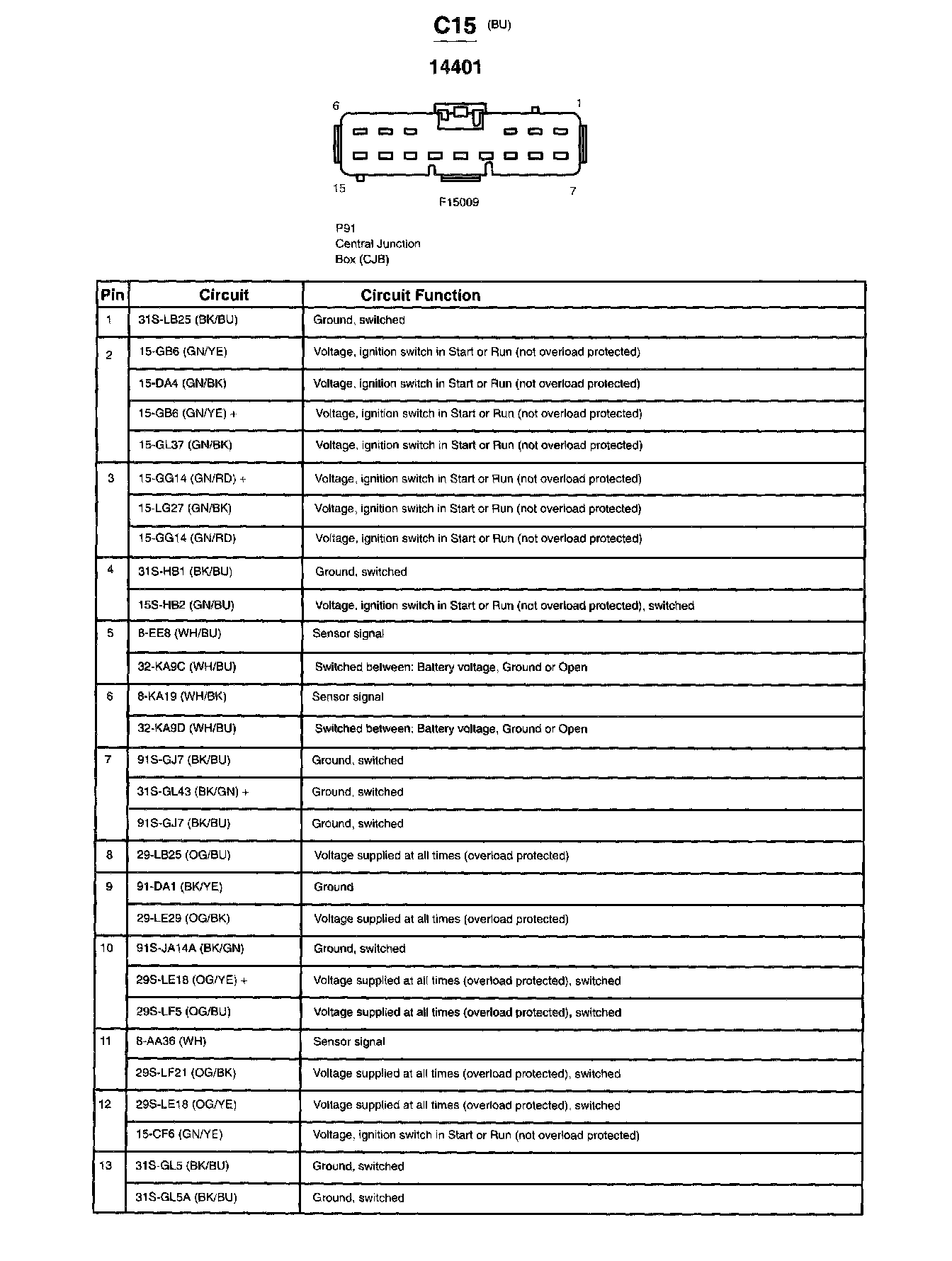

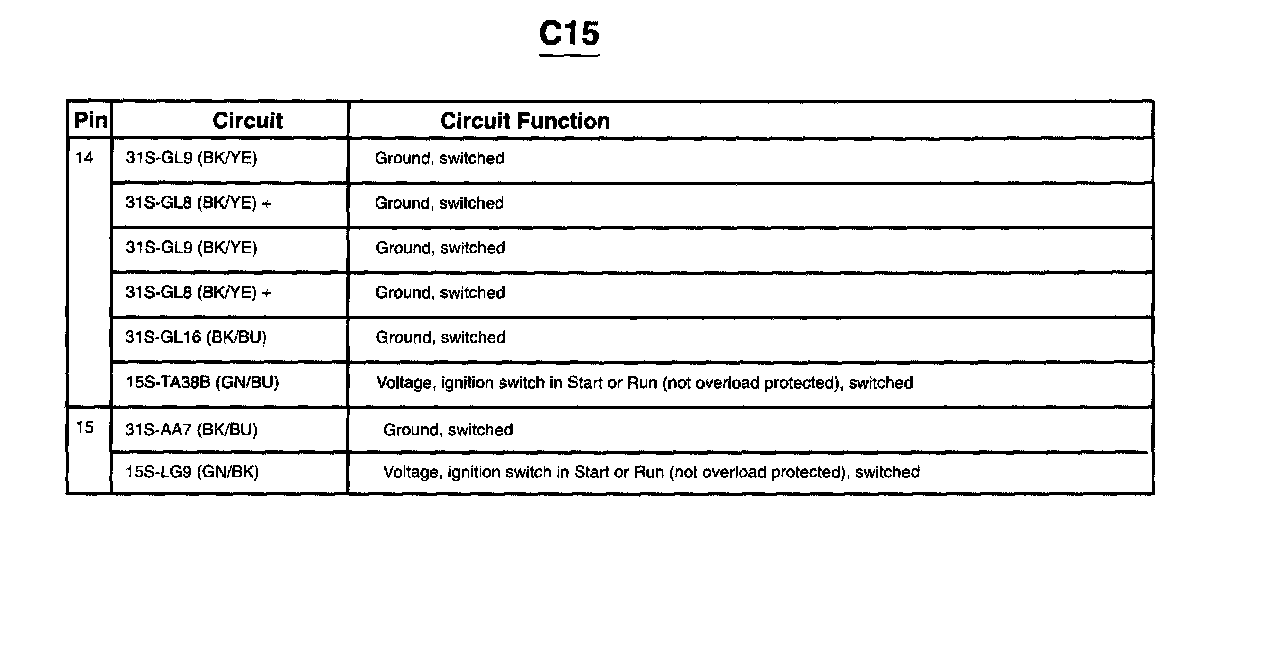

C15

Part 1:



Part 2:
