Exterior Mirror Cover

REMOVAL
1. Remove the exterior rear view mirror motor.
2. Remove the exterior mirror.

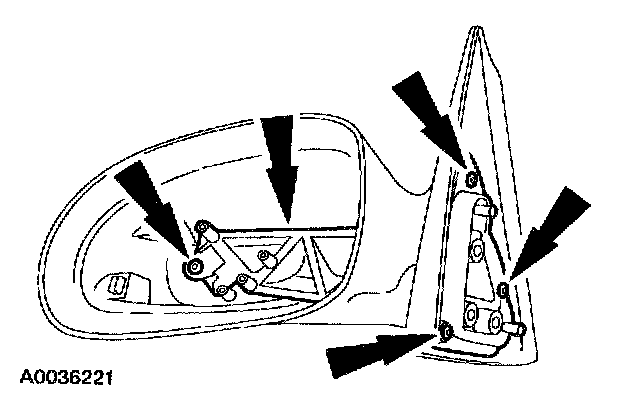

3. Remove the screws and the exterior rear view mirror bracket.

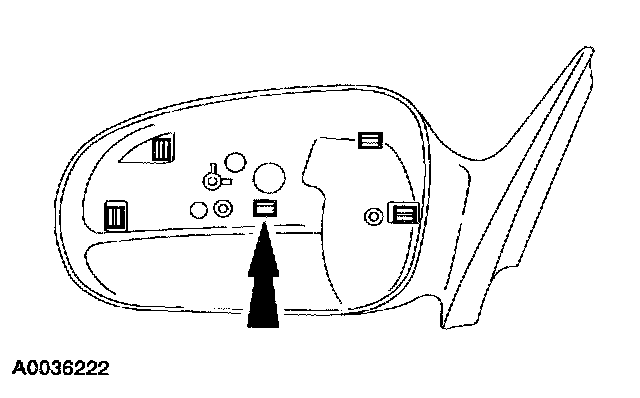

4. Release the cover retaining tabs and remove the exterior rear view mirror cover.

INSTALLATION
1. To install, reverse the removal procedure.
