Electrical Diagrams

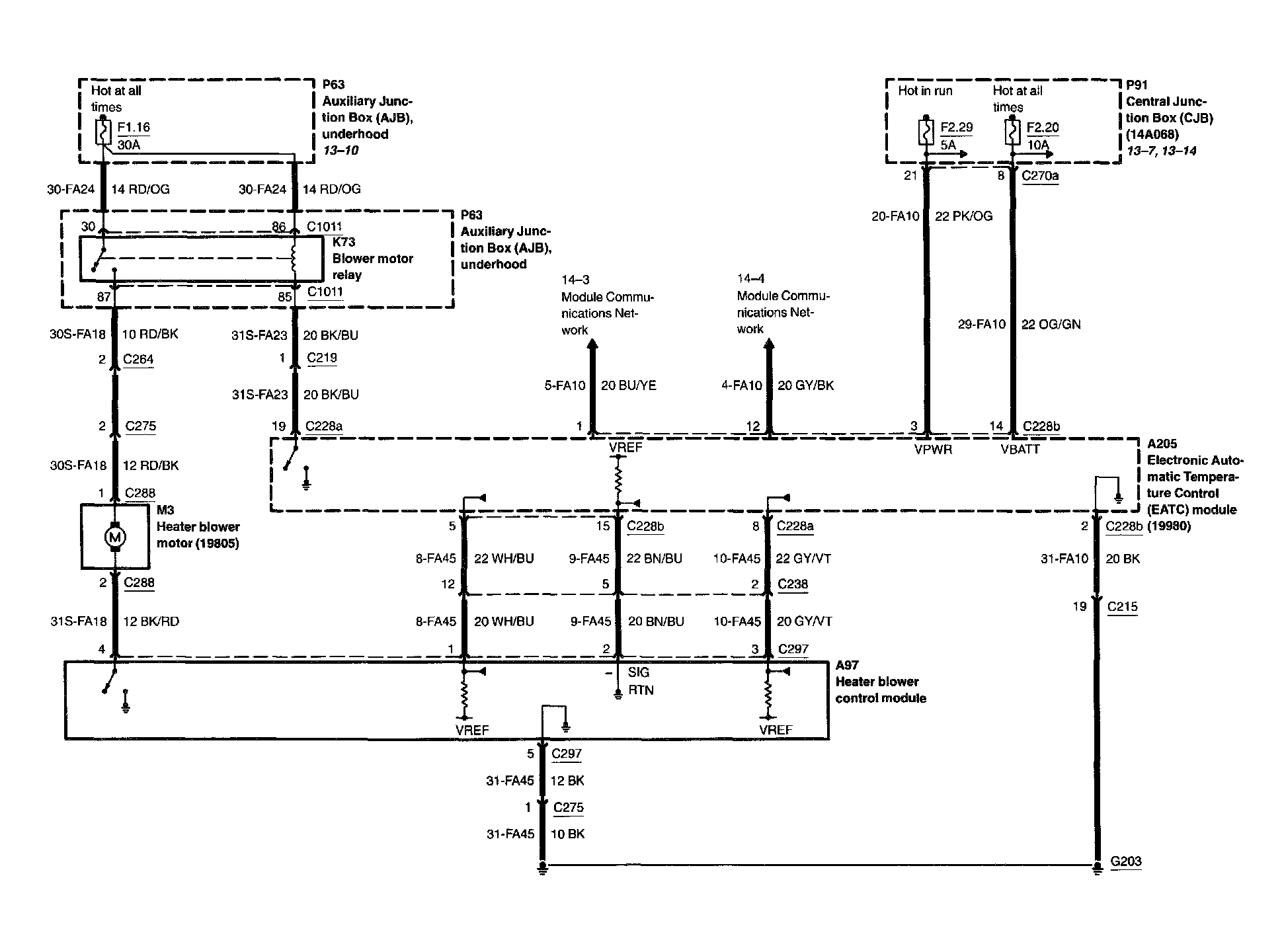

Diagram 55-1:

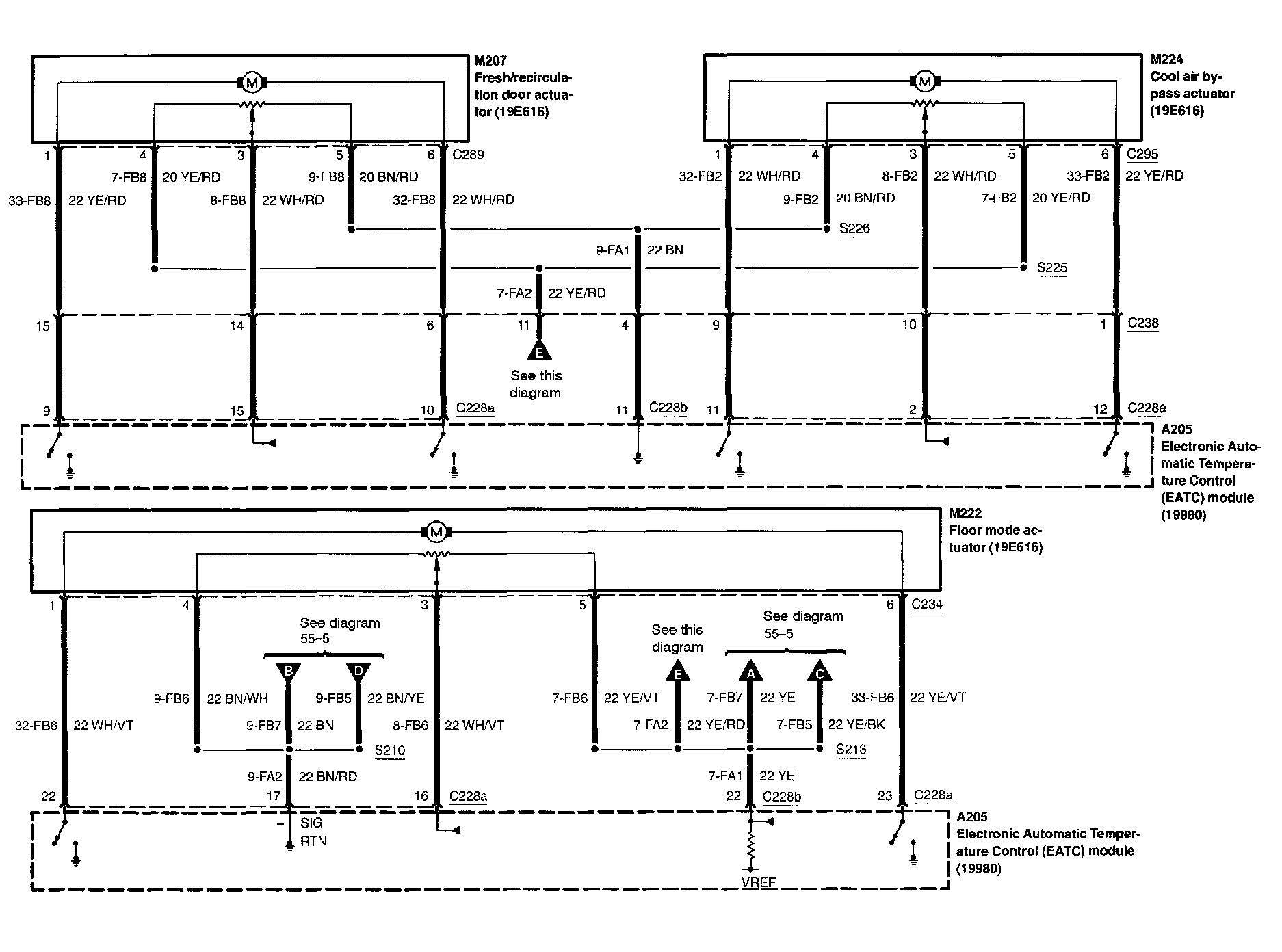

Diagram 55-2:

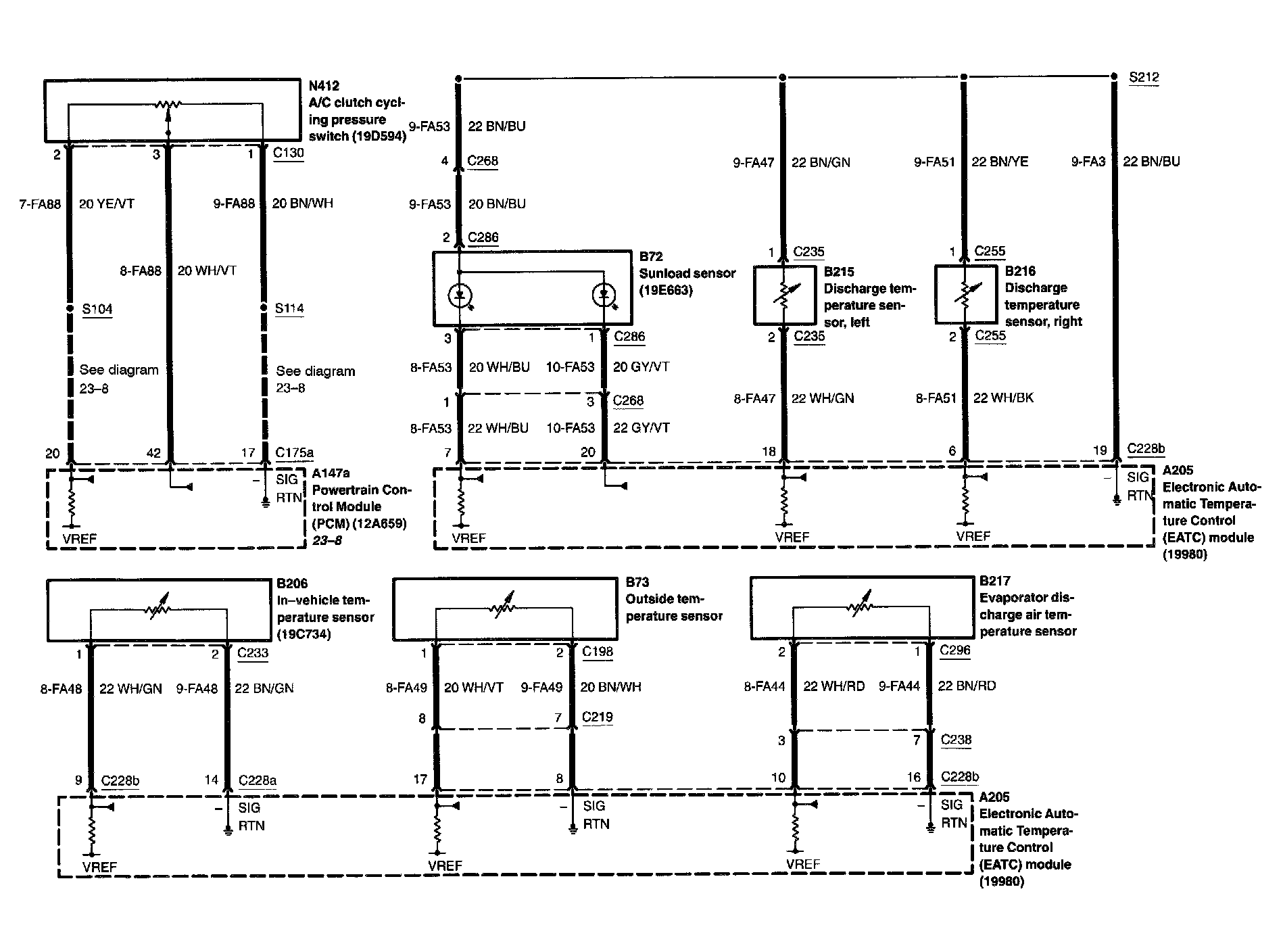

Diagram 55-3:

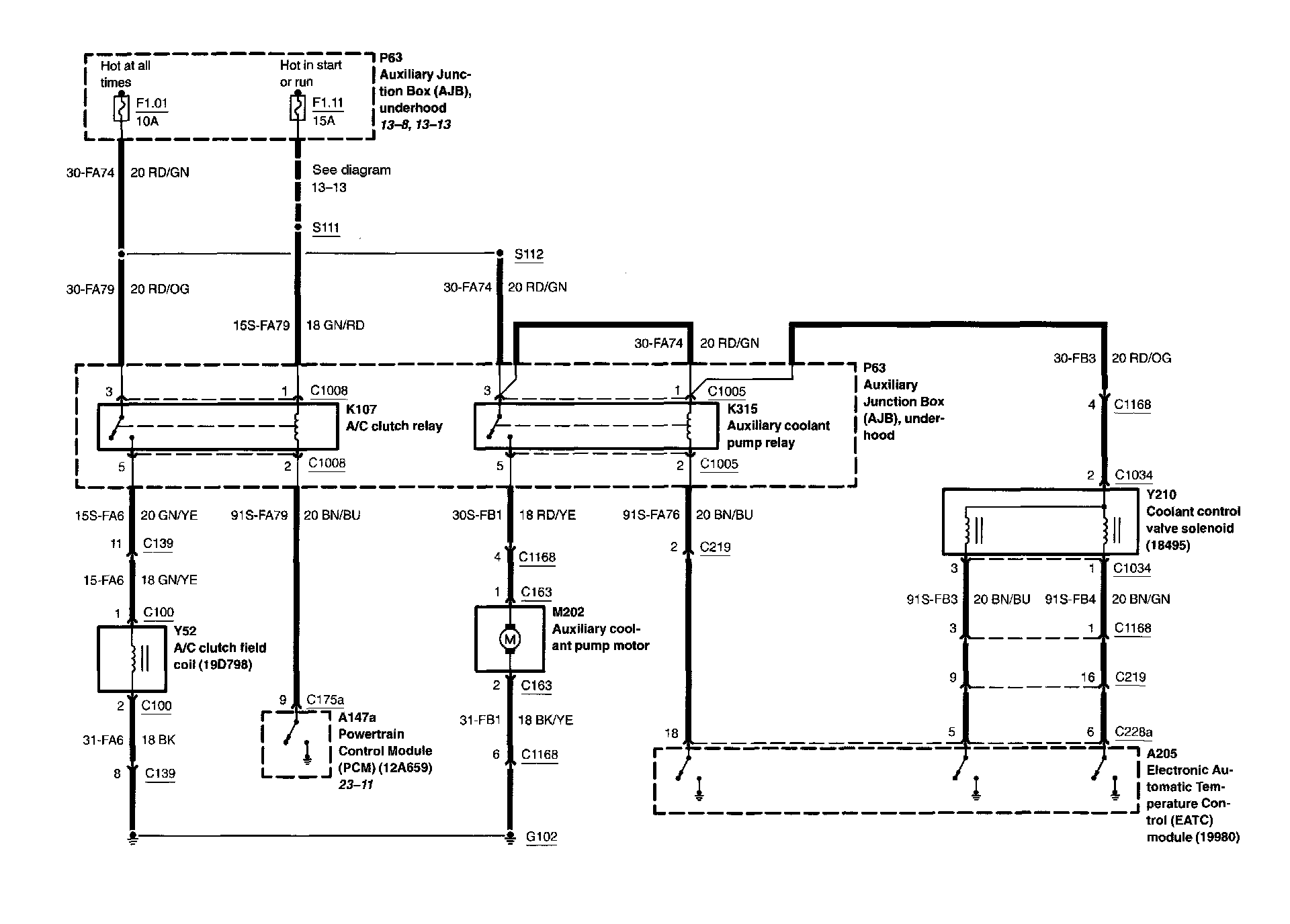

Diagram 55-4:

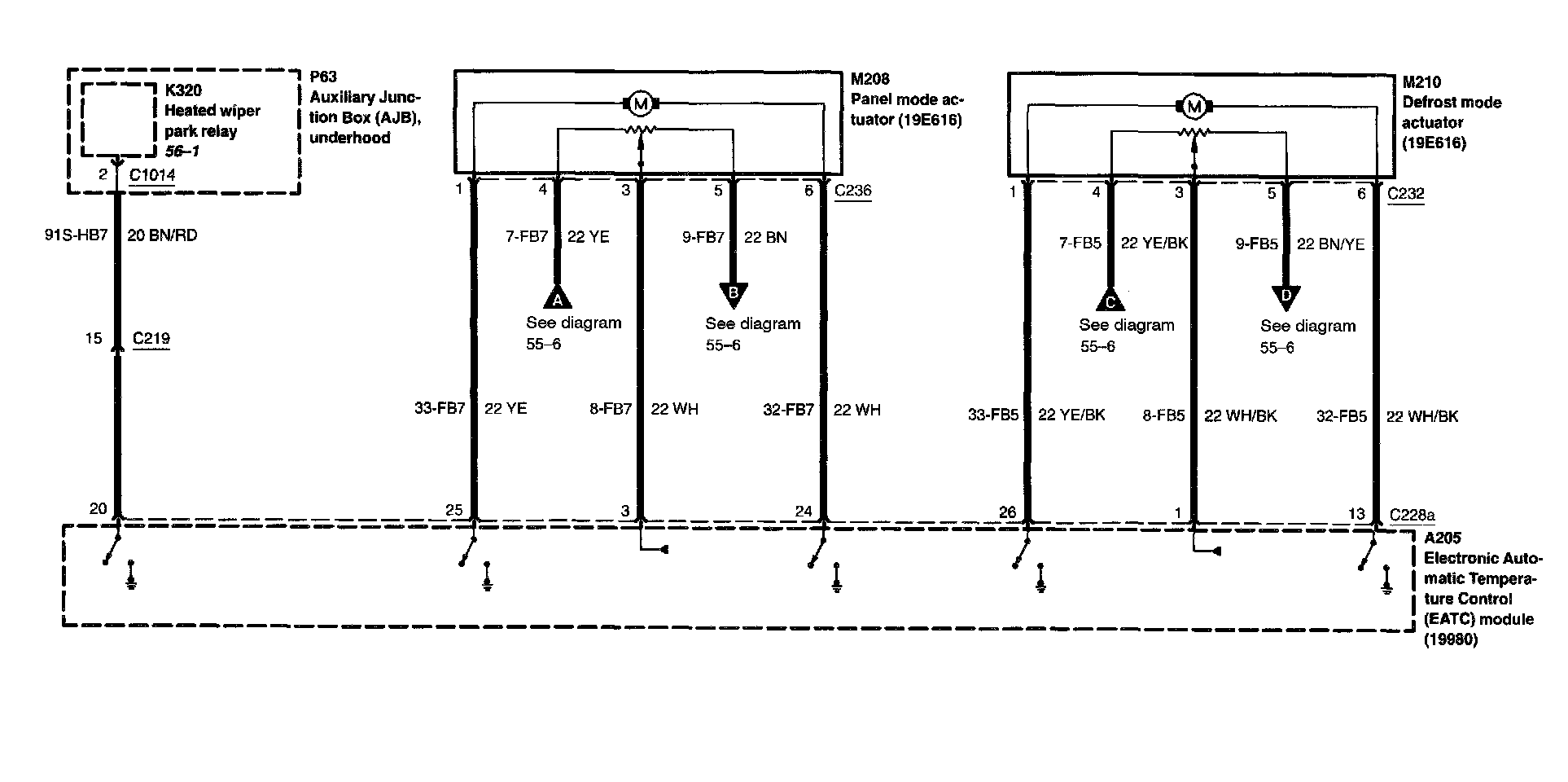

Diagram 55-5:

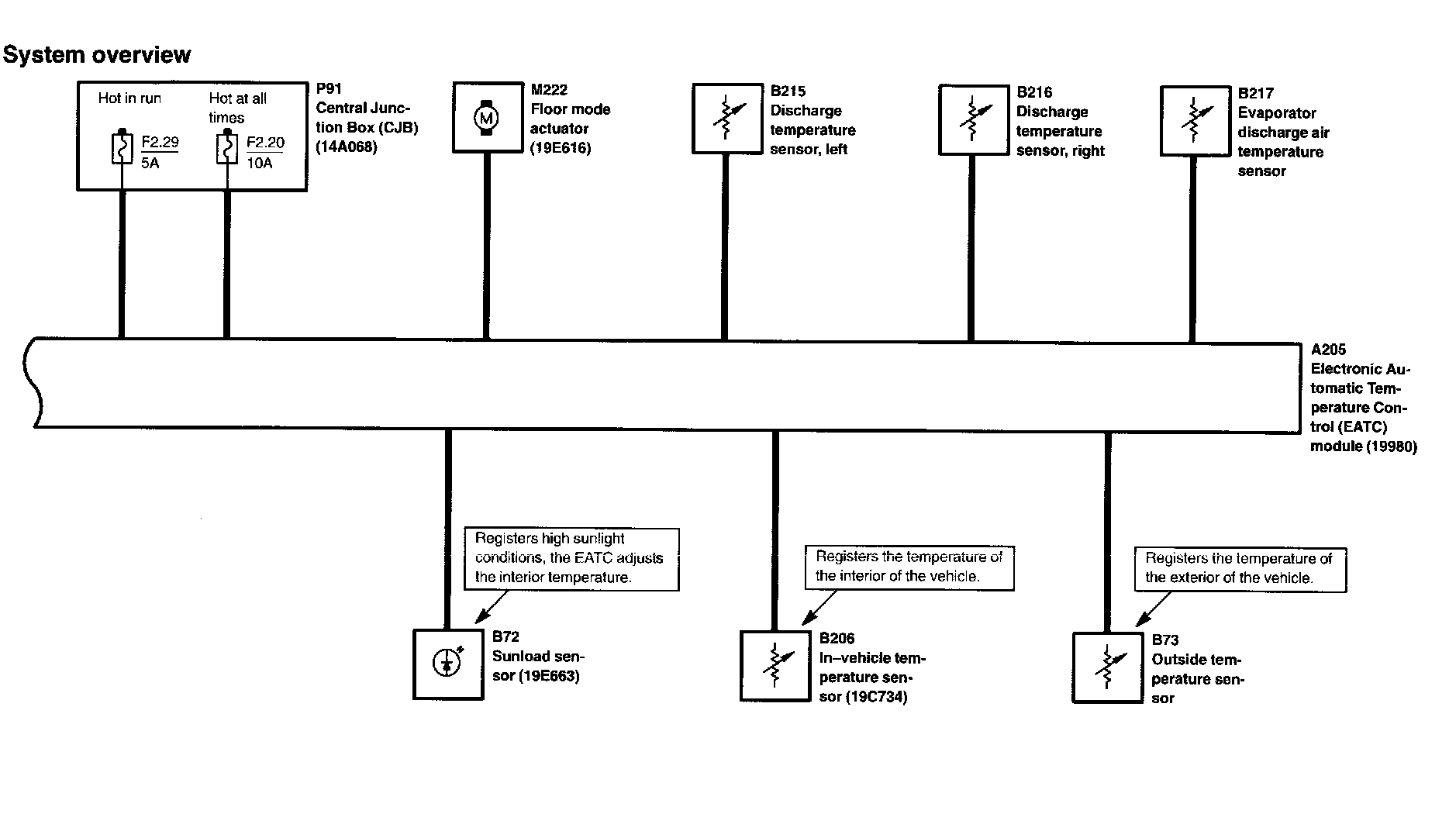

Diagram 55-6:

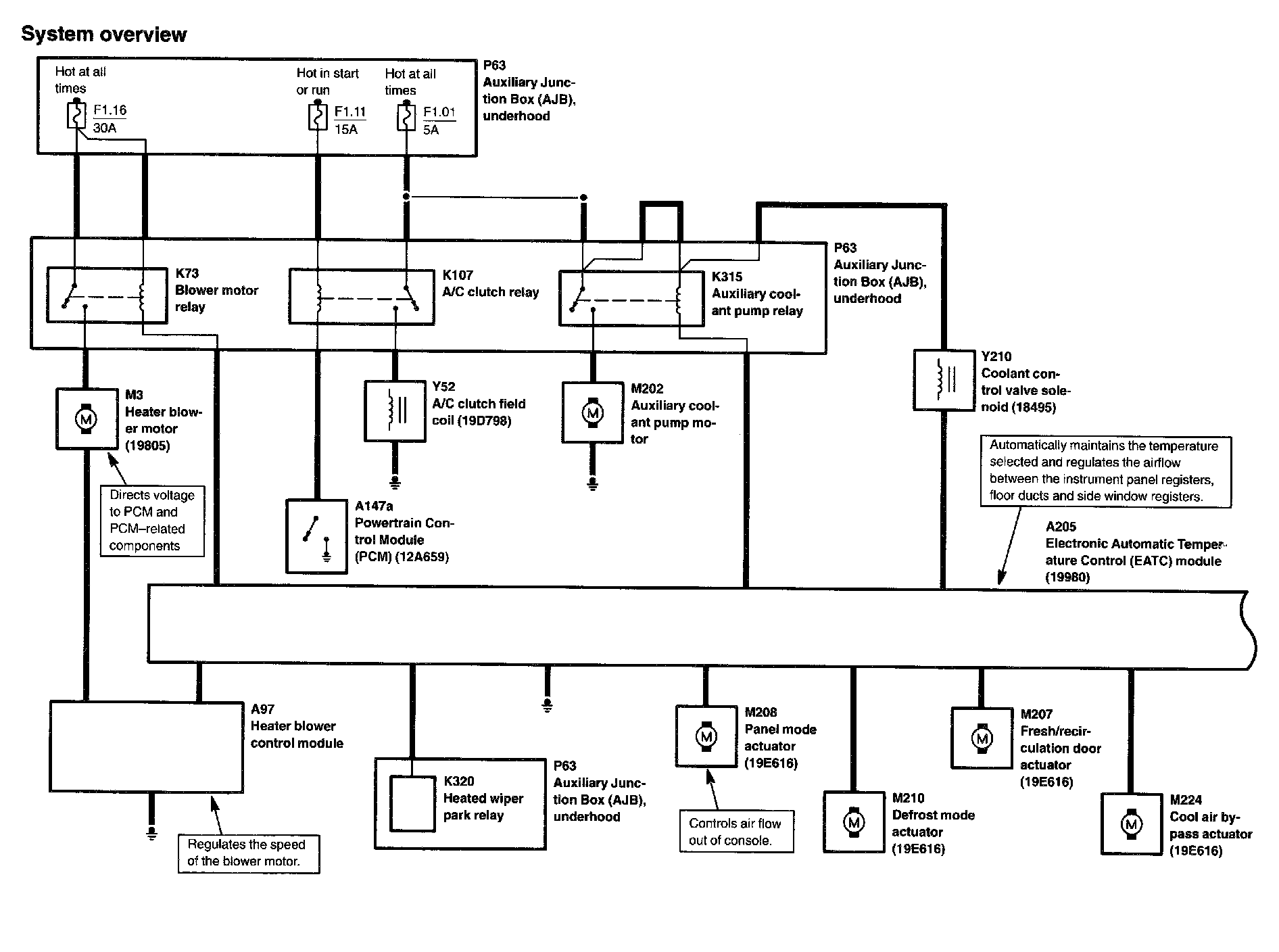

Diagram 55-7:
