Control Arm Bushing: Service and Repair

Bushing-Lower Arm

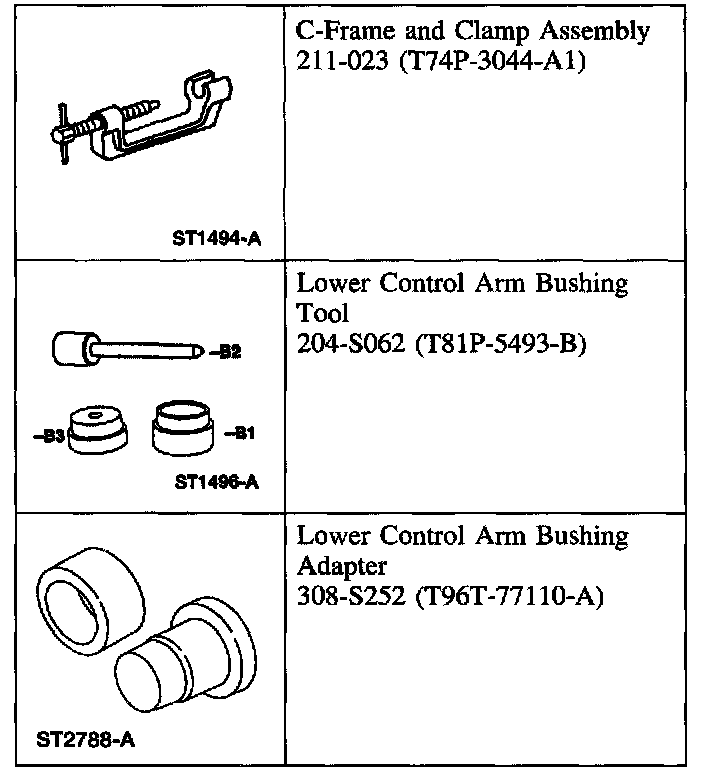

Special Tool(s)

Removal

1. Remove the front suspension lower arm.

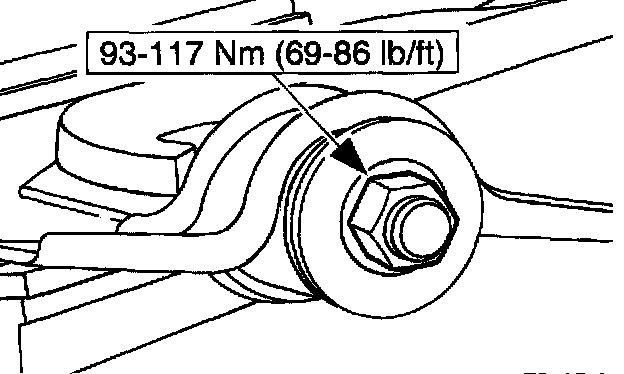

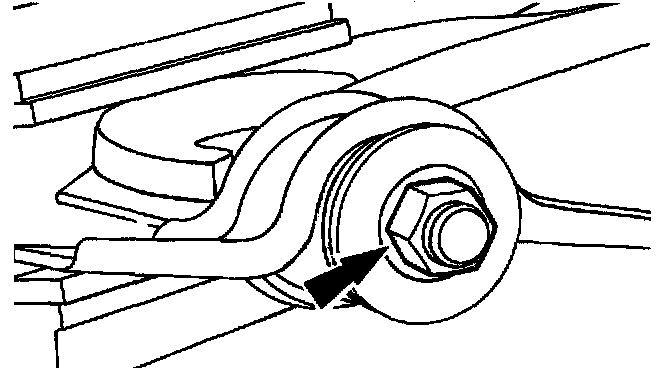

2. Remove the nut and the front suspension lower arm mounting bolt bushing (rear) and washer.

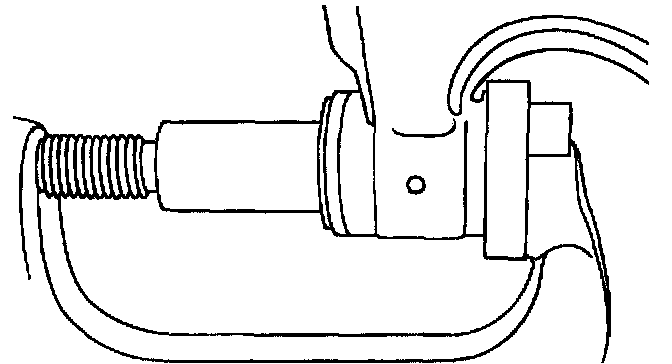

3. Use Lower Control Arm Bushing Tool and C-Frame and Clamp Assembly to remove the front suspension lower arm mounting bolt bushing (front).

Installation





1. To install, reverse the removal procedure.
