Test C

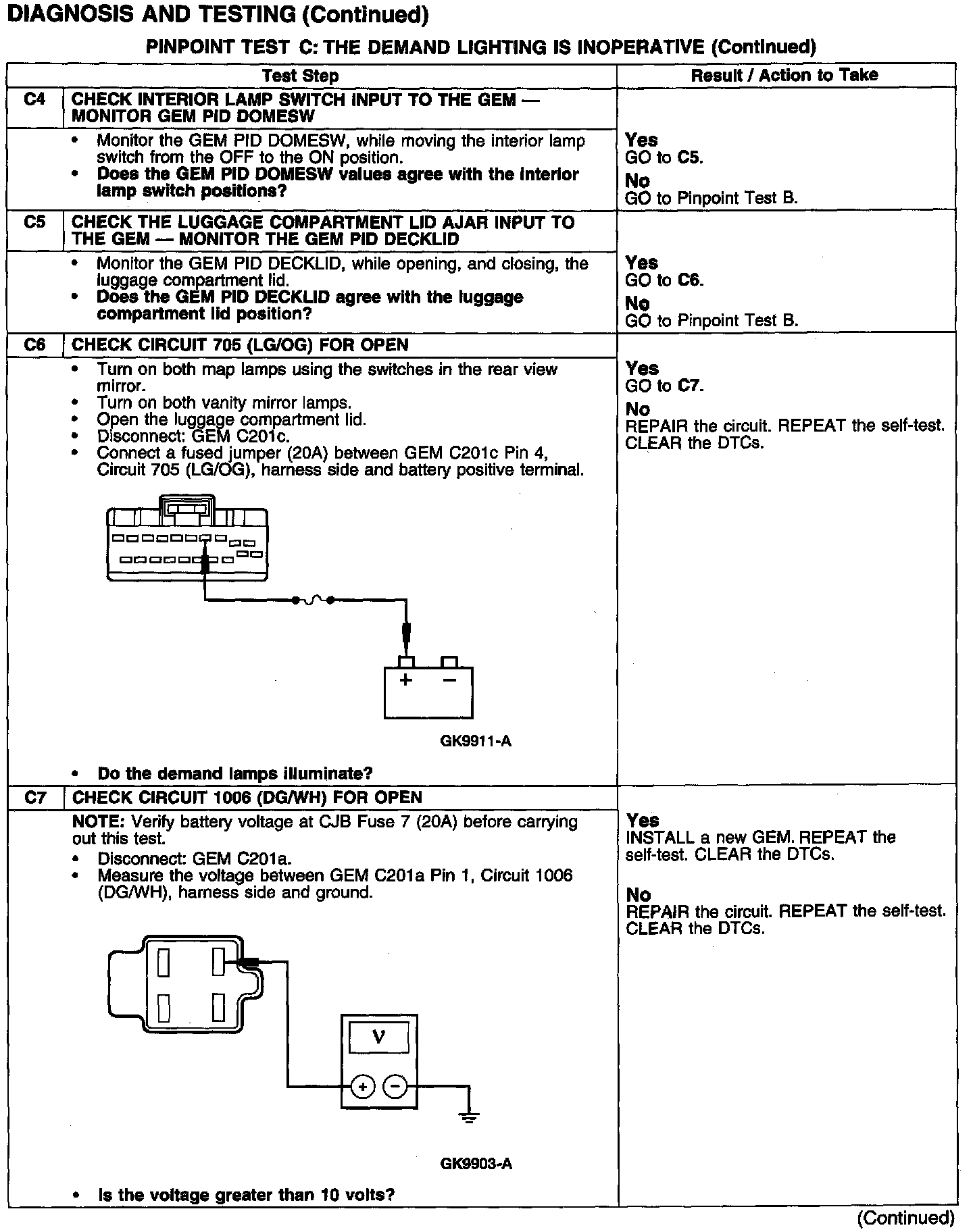

PINPOINT TEST C: THE DEMAND LIGHTING IS INOPERATIVE


Test C1-C3:






Test C4-C7:






Test C8-C9:
