Home >> Ford >> 2003 >> Mustang V8-4.6L SC VIN Y >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Test O

Test O

PINPOINT TEST O: THE FOG LAMPS ARE INOPERATIVE

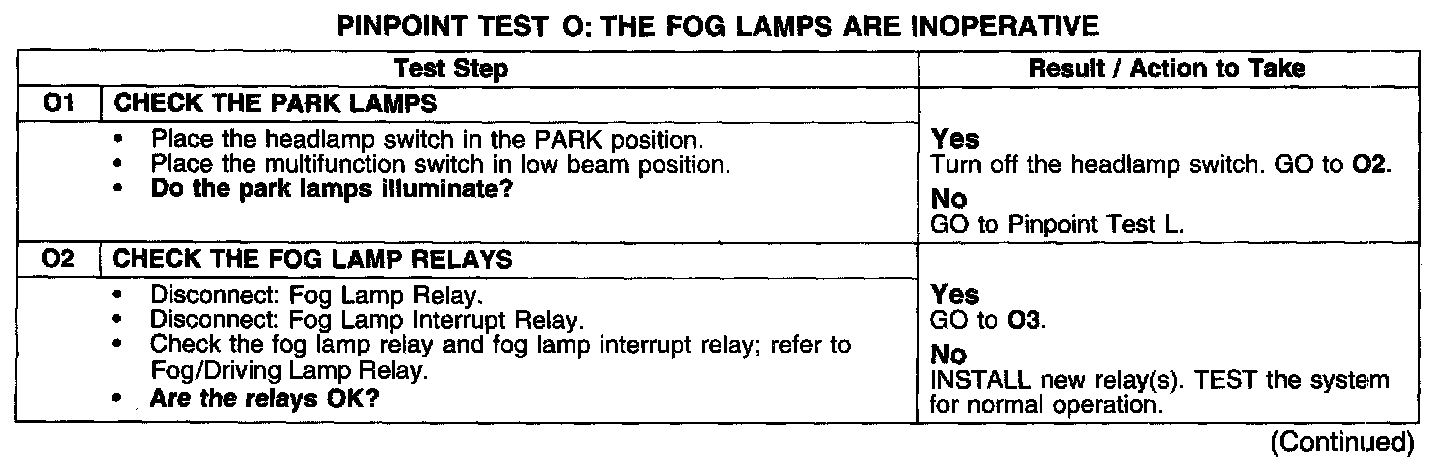

Test O1-O2:

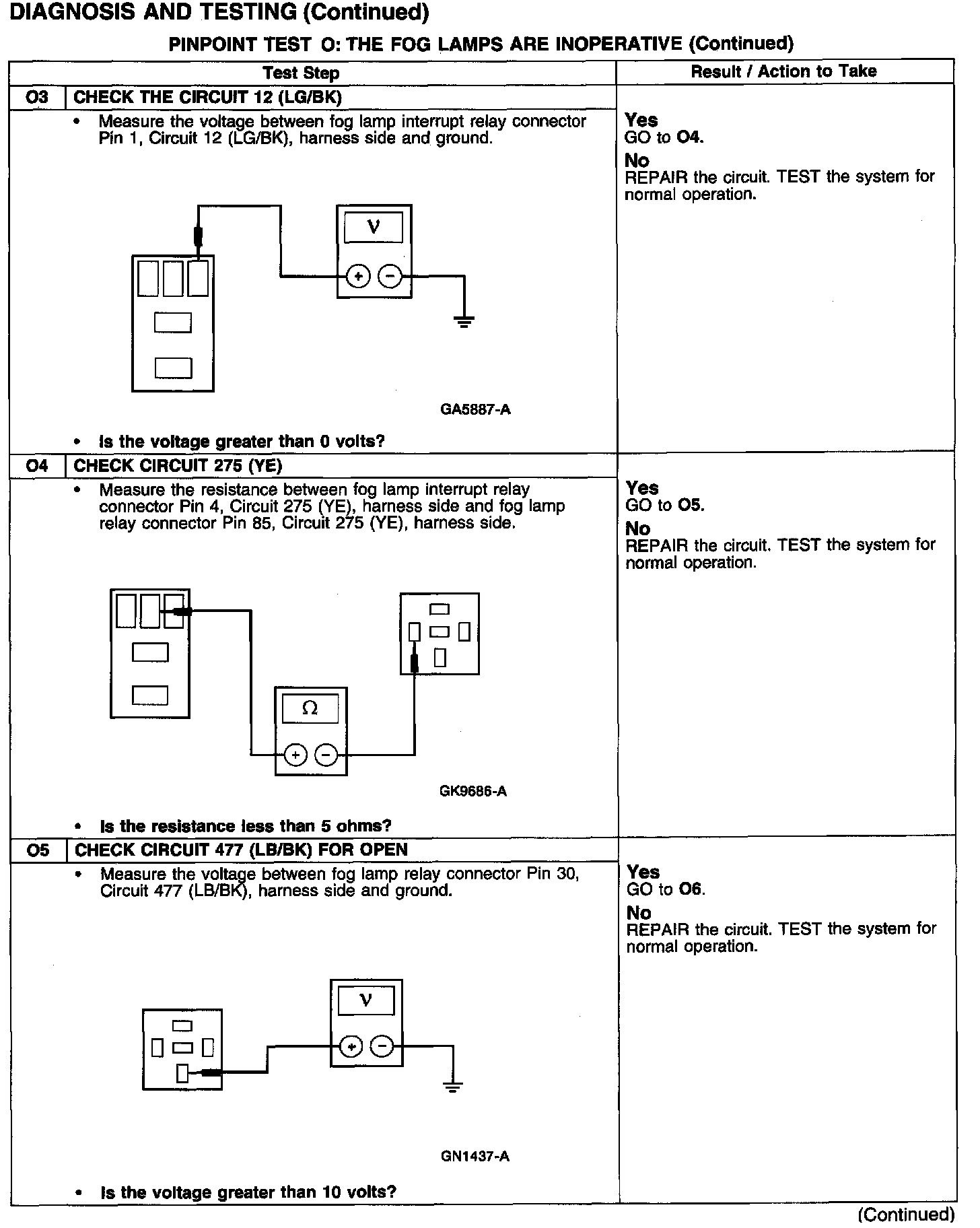

Test O3-O5:

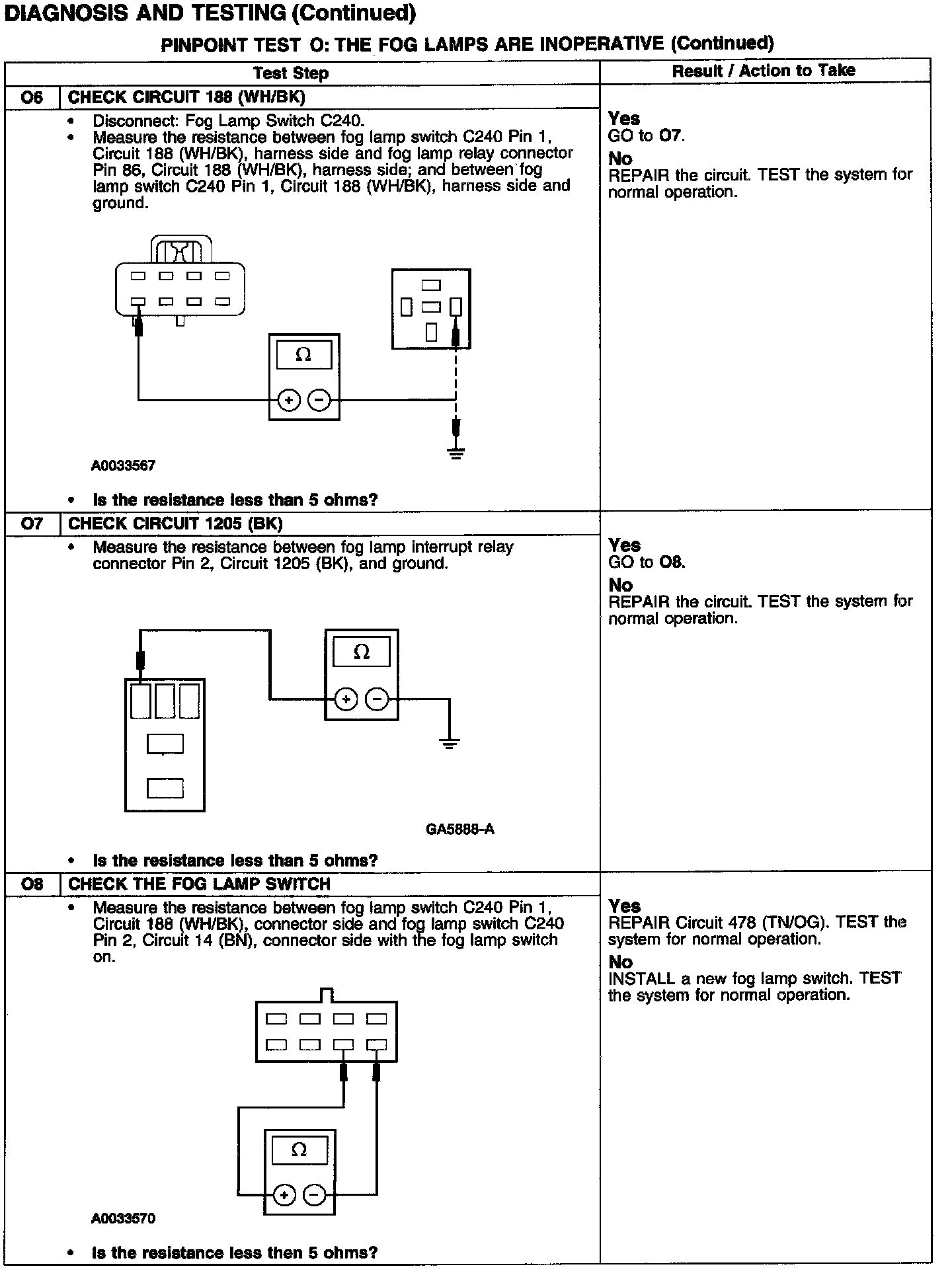

Test O6-O8:
