Home >> Ford >> 2004 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Suspension Control Module

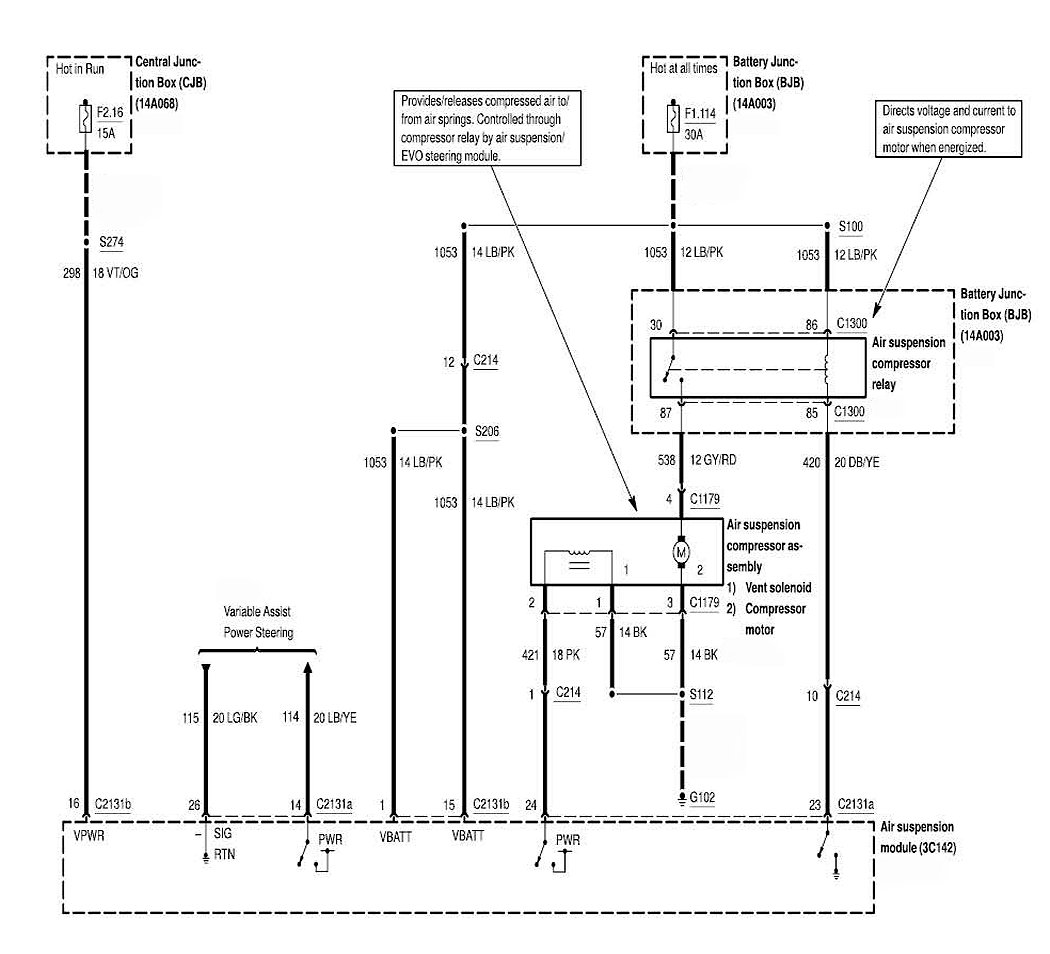

Suspension Control Module




41-1:





41-2:
