Home
>>
Ford
>>
2004
>>
Focus L4-2.0L SOHC VIN P
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test U
Test U

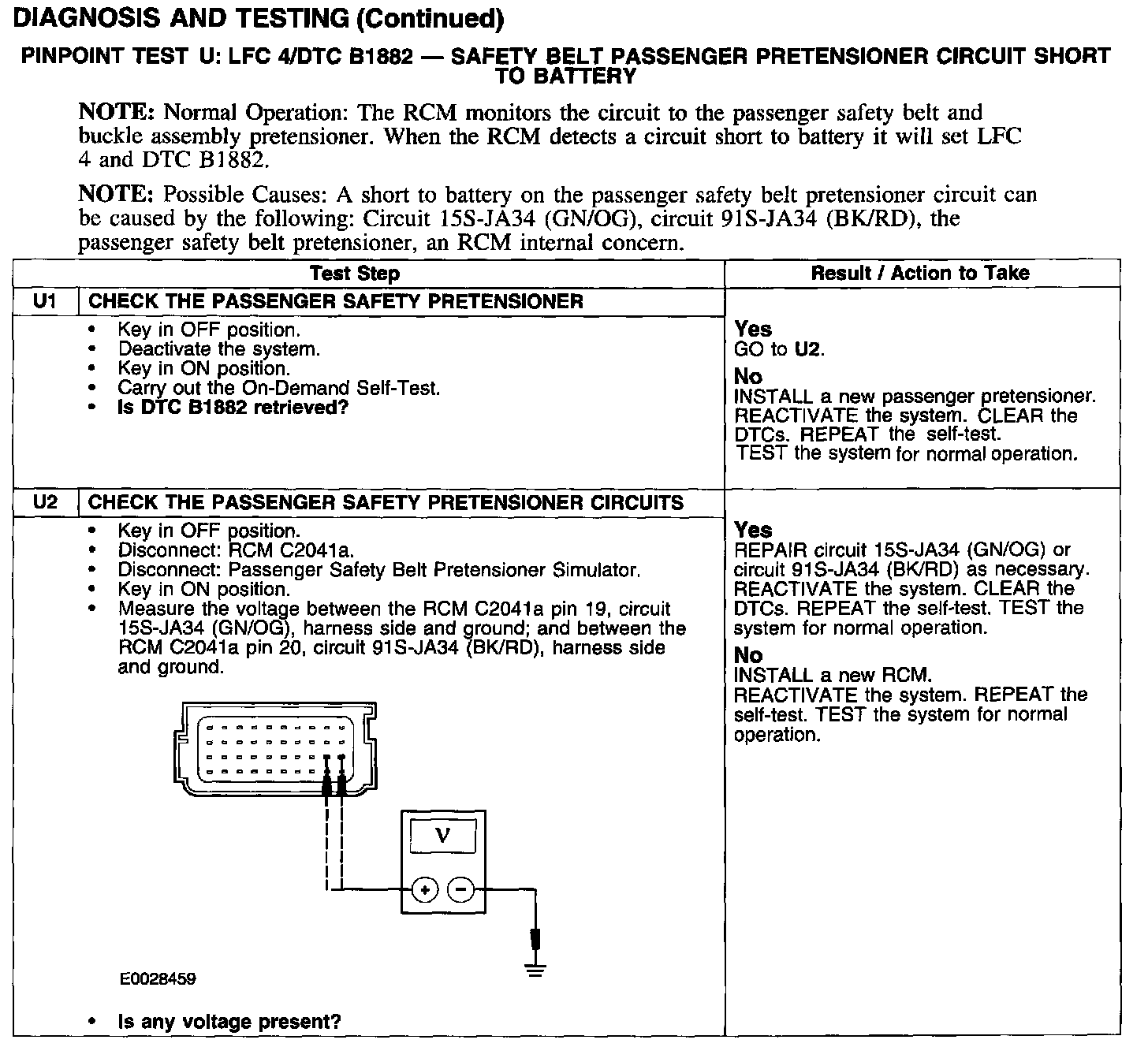

PINPOINT TEST U: LFC 4/DTC B1882 - SAFETY BELT PASSENGER PRETENSIONER CIRCUIT SHORT TO BATTERY
Test U1-U2:
